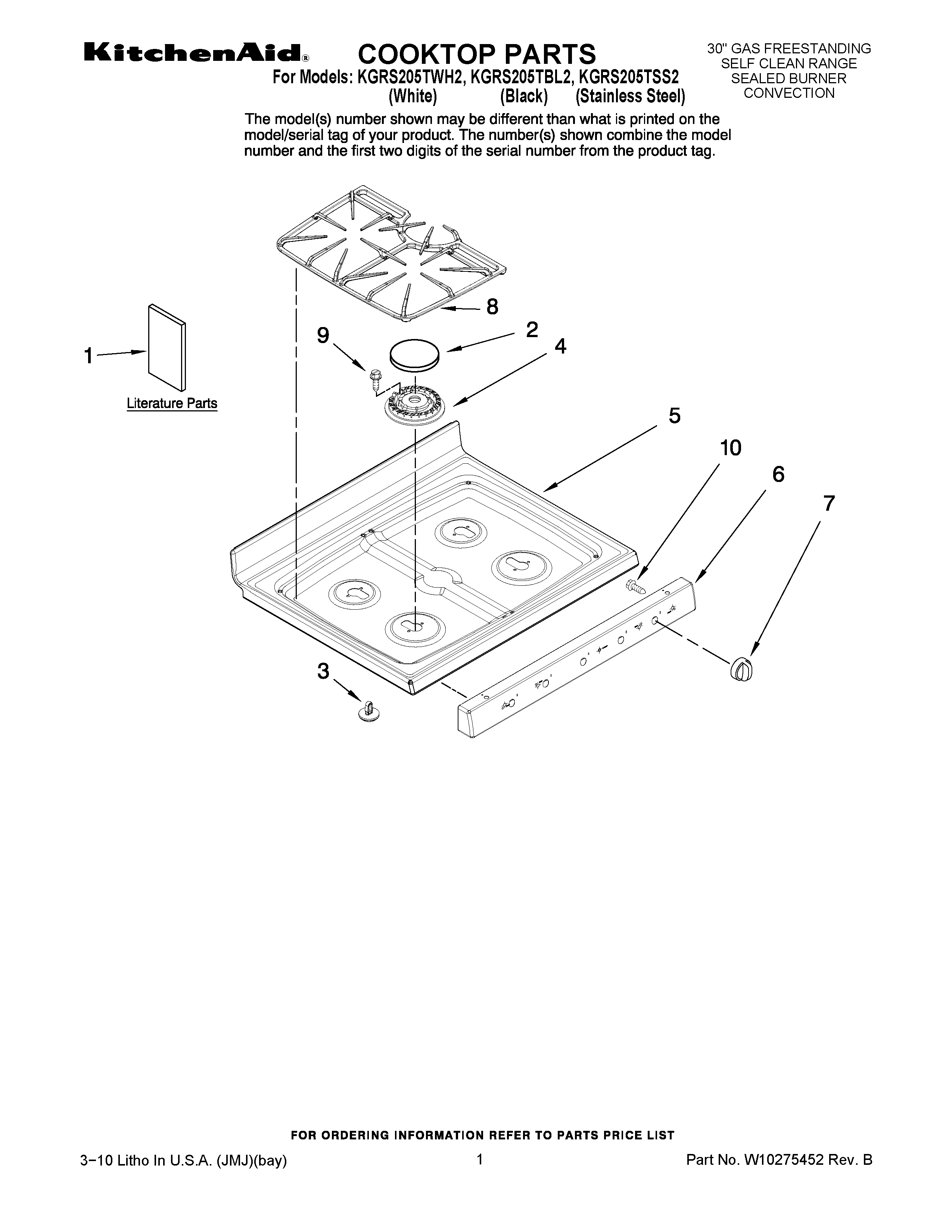

KGRS205TWH2 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1Owners Manual
1Wiring Diagram
2CAP, BURNER (CTR) (GRAY)
2CAP, BURNER (RF) (BLACK)
2CAP, BURNER (LF) (BLACK)
2CAP, BURNER (CTR) (BLACK)
2CAP, BURNER (RF) (GRAY)
2CAP, BURNER (LF) (GRAY)
2Cap, Burner (RR & LR) (Black)
2Cap, Burner (RR & LR) (Gray)
3Spacer Snap-In (4)
4WPW10406878 Whirlpool Burner Base (16K)
4WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4WPW10406243 Whirlpool Burner Head Auxiliary 6K
4BURNER (RR & LR)
5Cooktop (Black)
5Cooktop (White)
6PANEL, MANIFOLD (STAINLESS STEEL)
6Panel, Manifold (White)
6Panel, Manifold (Black)
7WPW10160375 Whirlpool Oven Control Knob
7WPW10160374 Whirlpool Knob
7WPW10160372 Whirlpool Knob
8Grate, Burner (2) (Gray)
8Grate, Burner (2) (Black)
9WP3368921 Whirlpool Screw
10SCREW
