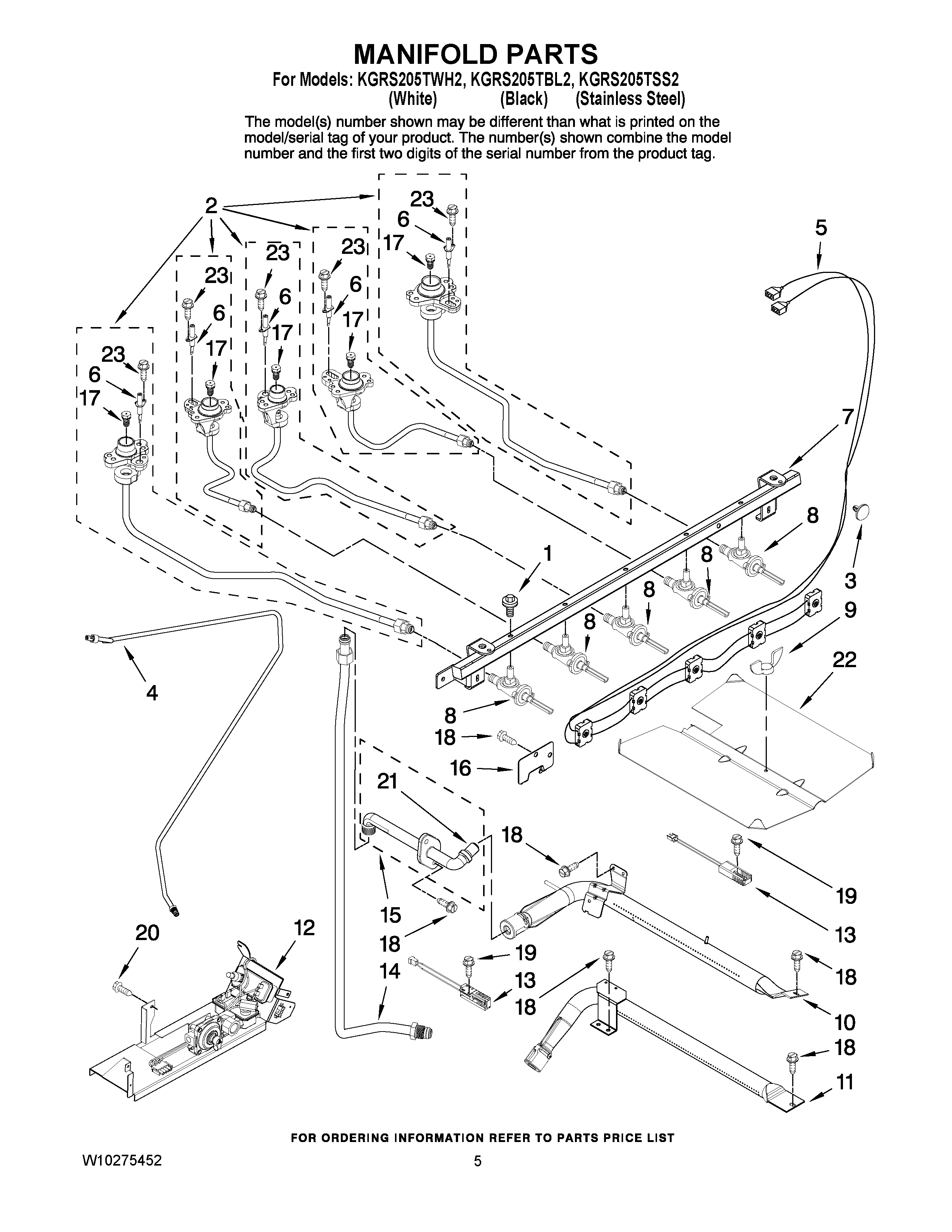

KGRS205TWH2 04 – MANIFOLD PARTS

Products

Position	Product
NI	SPUDS, LP GAS (KIT OF 5)
1	WP3368921 Whirlpool Screw
2	HOLDER, ORIFICE (RF)
2	Holder, Orifice (LR)
2	Holder, Orifice (LF)
2	HOLDER, ORIFICE (RR)
2	Holder, Orifice (CTR)
3	Spacer Snap-In (4)
4	TUBING, MAIN SUPPLY
5	HARNESS, IGNITER INCLUDES SWITCHES
6	WP74009958 Whirlpool Spark Electrode Assembly
7	PIPE, MANIFOLD
8	VALVE (LR/RR/CTR)
8	VALVE (LF)
8	VALVE (RF)
9	NUT, WING
10	W10160904 Whirlpool Broiler Burner
11	Burner, Bake
12	VALVE/REGULATOR
13	74007498 Whirlpool Range Flat Igniter
13	IGNITER (BAKE)
14	TUBING (BROILER FITTING TO VALVE)
15	FITTING, BROILER
16	COVER, IGNITOR WIRE
17	ORIFICE, BURNER (CENTER)
17	ORIFICE, BURNER (LR/RR)
17	ORIFICE, BURNER (LEFT FRONT)
17	ORIFICE, BURNER (RIGHT FRONT)
18	Screw
19	SCREW
20	WP3196175 Whirlpool Screw
21	ORIFICE
22	BAFFLE, BROIL BURNER
23	SCREW
