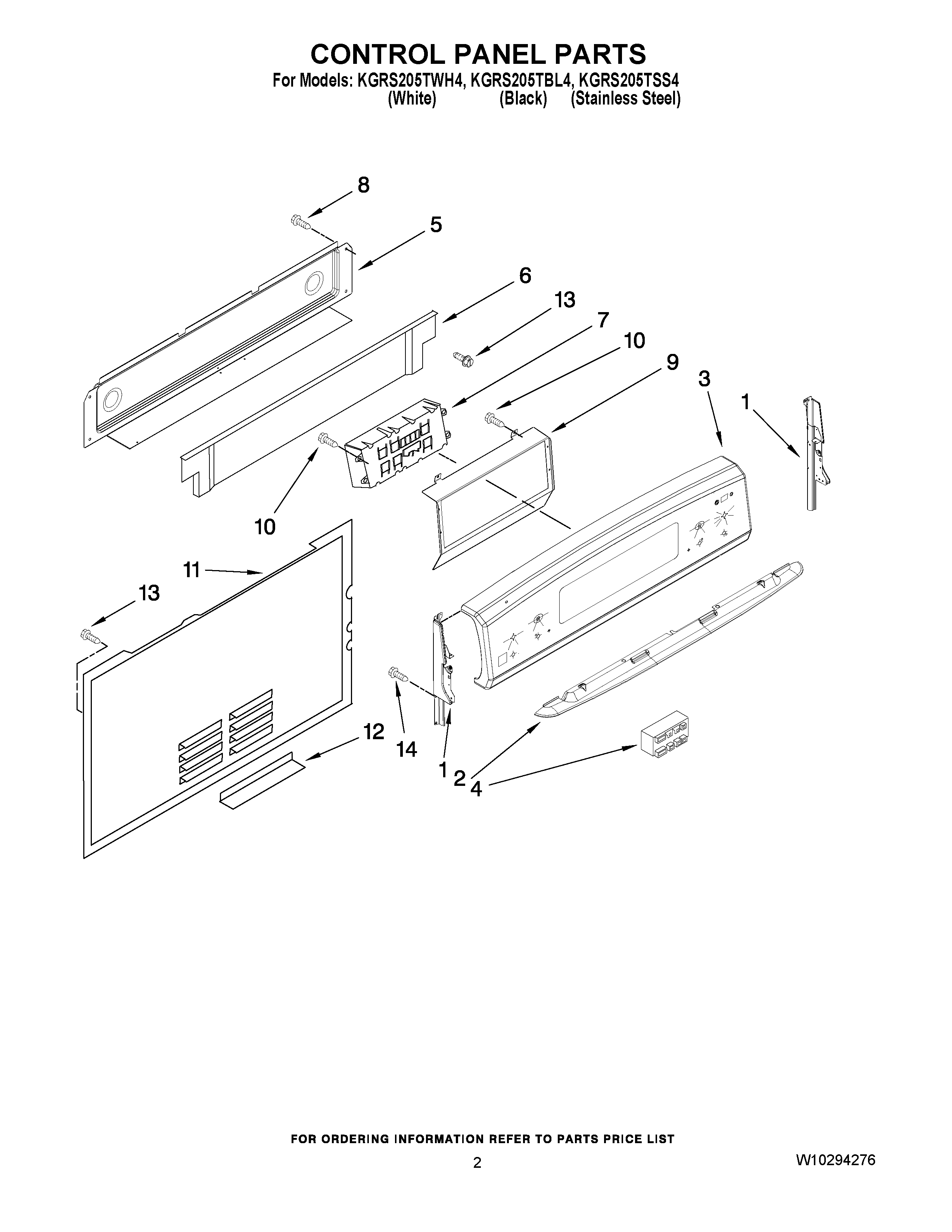

KGRS205TWH4 02 – CONTROL PANEL PARTSadmin2025-04-26T11:18:23+00:00KGRS205TWH4 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | End Cap, Right (Black) |
| 1 | End Cap, Right (White) |
| 1 | End Cap, Left (White) |
| 1 | End Cap, Left (Black) |
| 2 | Shield, Heat Visor (Black) |
| 2 | Shield, Heat Visor (White) |
| 3 | WPW10160634 Whirlpool Membrane Switch |
| 4 | MODULE, SPARK |
| 5 | Cover, Rear Wire |
| 6 | Shield, Vent |
| 7 | CONTROL |
| 9 | Bracket, Control |
| 11 | COVER, MAIN WIRE |
| 12 | Panel, Access |
| 13 | WP3196557 Whirlpool Screw |
| 14 | SCREW |
