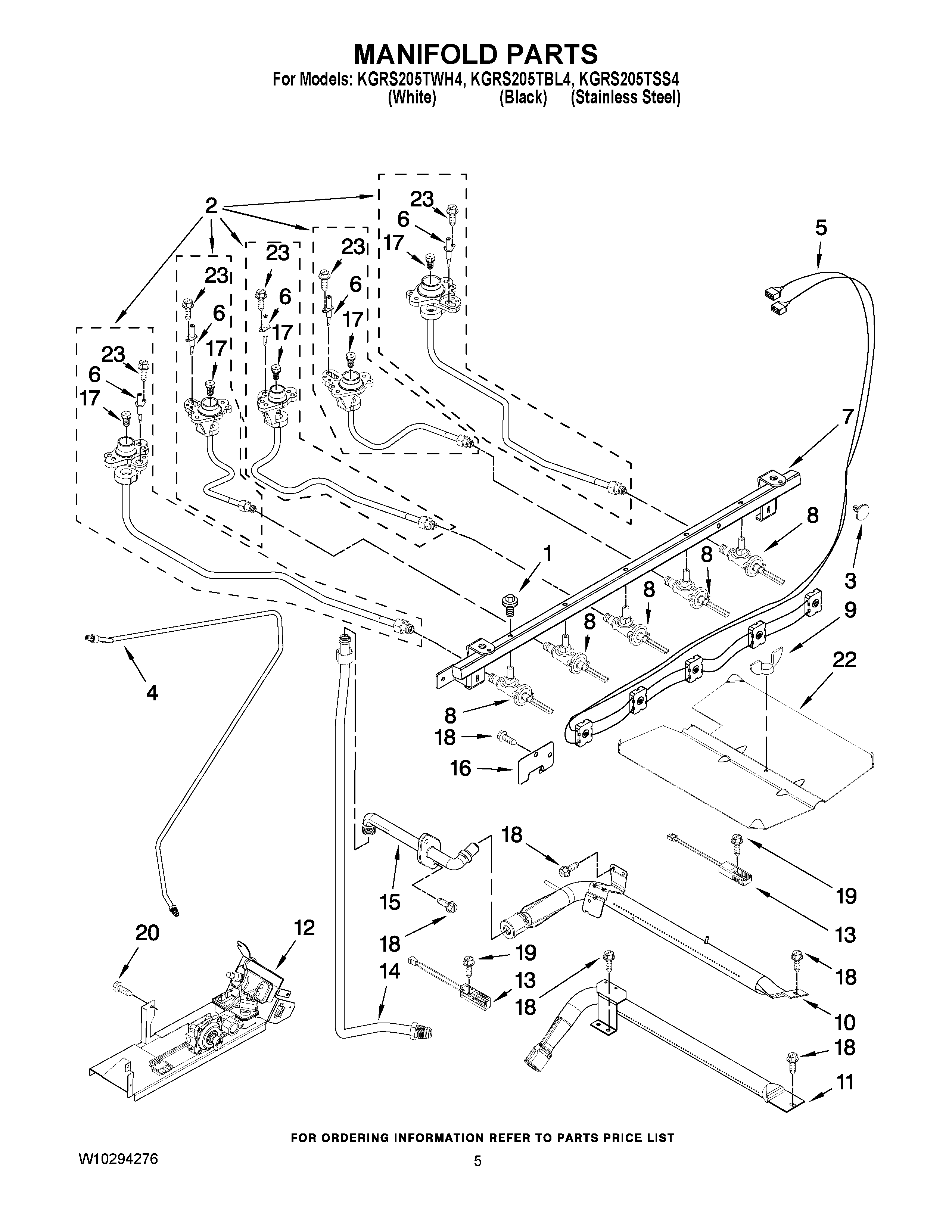

KGRS205TWH4 04 – MANIFOLD PARTS

Products

Position	Product
NI	SPUDS, LP GAS (KIT OF 5)
1	WP3368921 Whirlpool Screw
2	HOLDER, ORIFICE (RIGHT FRONT)
2	W10169906 Whirlpool Orifice Holder
2	W10169903 Whirlpool Orifice Holder
2	W10169902 Whirlpool Orifice Holder
2	W10169901 Whirlpool Orifice Holder
3	Spacer Snap-In (4)
4	TUBING, MAIN SUPPLY
5	Harness, Igniter Includes Switches
6	WPW10216419 Whirlpool Surface Igniter
7	Pipe, Manifold
8	VALVE (CENTER)
8	VALVE (LR/RR/CTR)
8	VALVE (LF)
8	VALVE (RF)
9	NUT, WING
10	W10160904 Whirlpool Broiler Burner
11	BURNER, BAKE
12	VALVE/REGULATOR
13	IGNITER (BAKE)
13	IGNITER (BAKE)
14	TUBING (BROILER FITTING TO VALVE)
15	FITTING, BROILER
16	COVER, IGNITOR WIRE
17	W10178934 Whirlpool Orifice Assembly
17	WPW10170506 Whirlpool Orifice Spud
17	W10853607 Whirlpool Orifice
17	WPW10170508 Whirlpool Orifice Spud
17	W10251991 Whirlpool Orifice Spud
18	Screw
19	SCREW
20	WP3196175 Whirlpool Screw
22	BAFFLE, BROIL BURNER
23	SCREW
