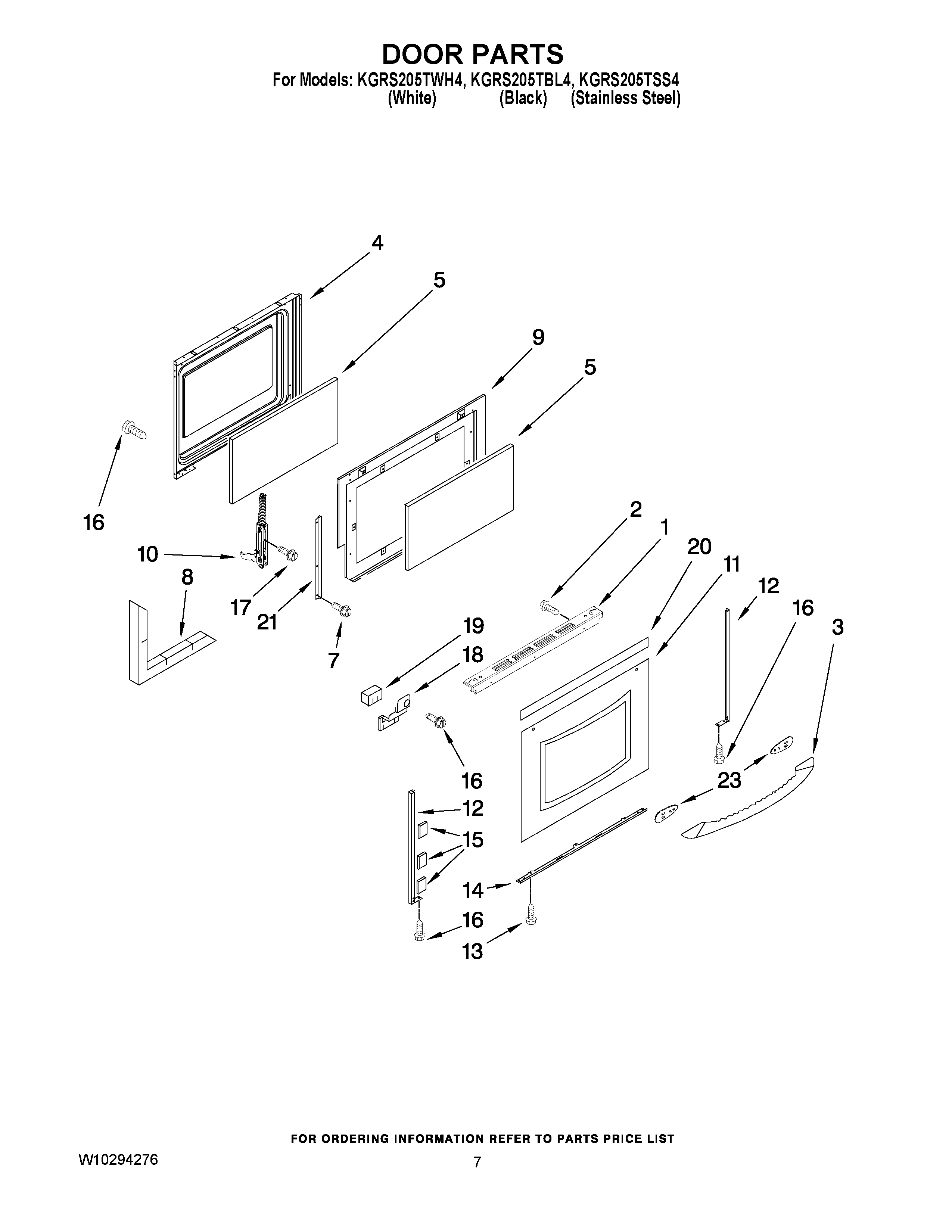

KGRS205TWH4 05 – DOOR PARTS
Written by
in
KGRS205TWH4 05 – DOOR PARTS
Products
Position
Product
1
Trim, Door Top (White)
1
Trim, Door Top (Black)
2
W11164114 Whirlpool Screw
3
Handle, Door (Black)
3
Handle, Door (White)
3
Handle, Door (S.Steel)
4
Lining, Door
5
GLASS, INNER
8
Insulation, Door
9
Baffel, Retainer
10
Hinge, Door (2)
11
Glass, Door (Order Item 15 When Replacing Door Glass) (Black)
11
GLASS, DOOR
11
GLASS, DOOR (WHITE)
12
Trim, Door Side (White)
12
Trim, Door Side (Black)
13
WP3196175 Whirlpool Screw
14
TRIM, DOOR BOTTOM (BLACK)
14
Trim, Door Bottom (White)
15
Tape, White
15
Tape, Double Sided (Black)
16
3196166 Whirlpool Screw
17
SCREW
18
Bracket, Handle (Left)
18
Bracket, Handle (Right)
19
Insulation, Corner
20
TAPE, FOIL (3“)
21
Bracket, Glass
23
Spacer, Handle (White)
23
SPACER, HANDLE
23
Spacer, Handle (Black)
←
