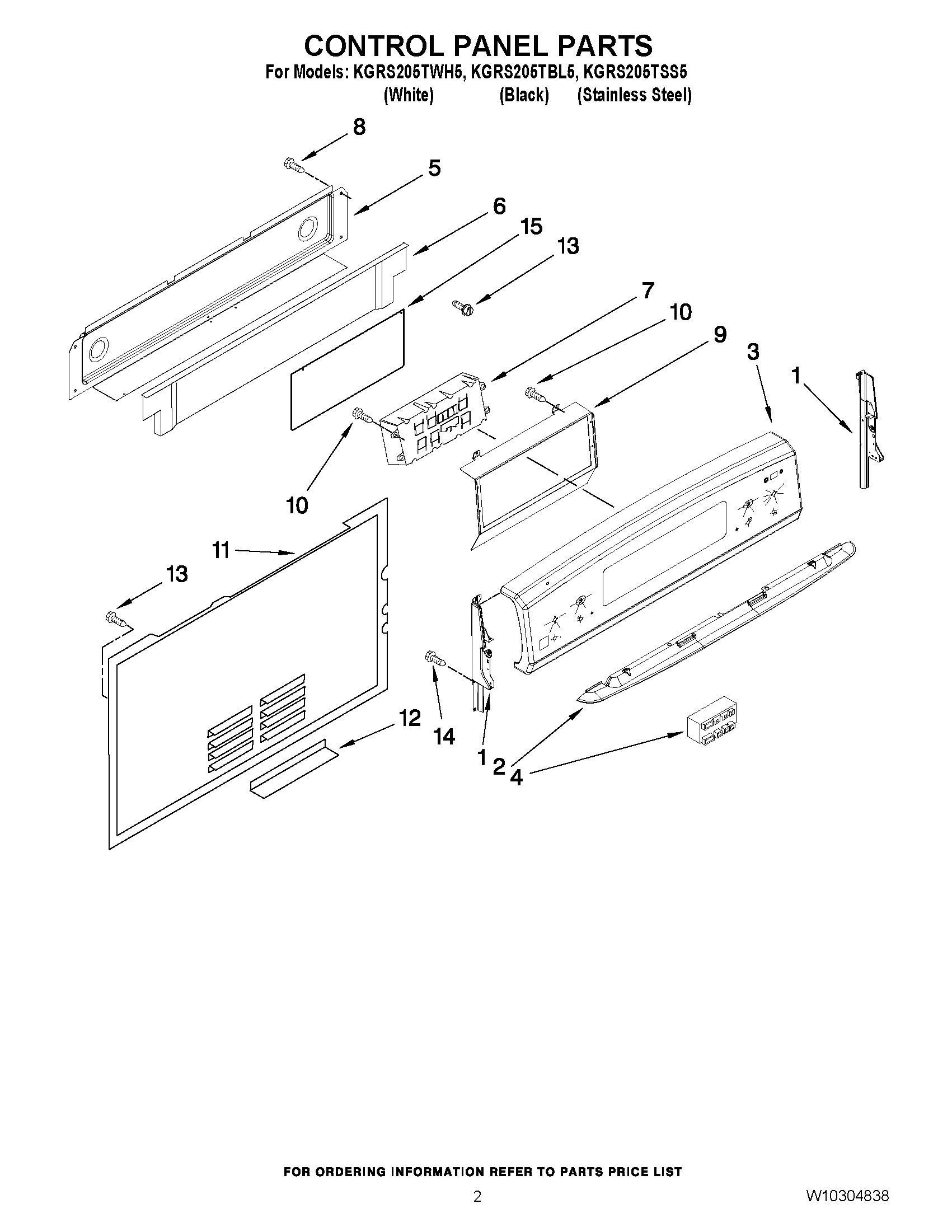

KGRS205TWH5 02 – CONTROL PANEL PARTS

KGRS205TWH5 02 – CONTROL PANEL PARTS

Written by

in

KGRS205TWH5 02 – CONTROL PANEL PARTS

Products

PositionProduct
1End Cap, Right (White)
1End Cap, Right (Black)
1End Cap, Left (White)
1End Cap, Left (Black)
2Shield, Heat Visor (White)
2Shield, Heat Visor (Black)
3WPW10160634 Whirlpool Membrane Switch
4MODULE, SPARK
5Cover, Rear Wire
6Shield, Vent
7CONTROL
9Bracket, Control
11COVER, MAIN WIRE
12Panel, Access
13WP3196557 Whirlpool Screw
14SCREW
15EXENTION, SHIELD
