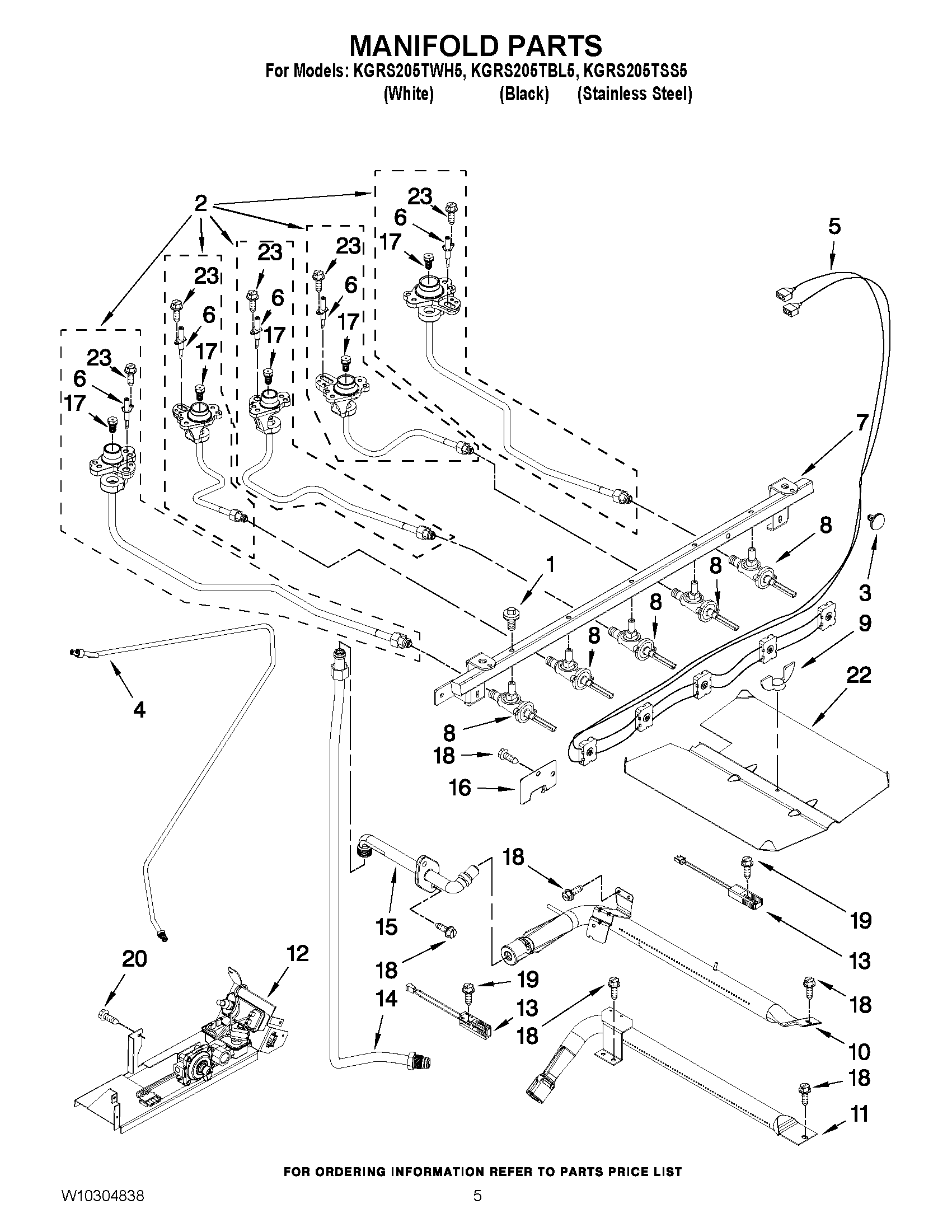

KGRS205TWH5 04 – MANIFOLD PARTS
Written by
in
KGRS205TWH5 04 – MANIFOLD PARTS
Products
Position
Product
NI
SPUDS, LP GAS (KIT OF 5)
1
WP3368921 Whirlpool Screw
2
HOLDER, ORIFICE (RIGHT FRONT)
2
W10169906 Whirlpool Orifice Holder
2
W10169903 Whirlpool Orifice Holder
2
W10169902 Whirlpool Orifice Holder
2
W10169901 Whirlpool Orifice Holder
3
Spacer Snap-In (4)
4
TUBING, MAIN SUPPLY
5
Harness, Igniter Includes Switches
6
WPW10216419 Whirlpool Surface Igniter
7
Pipe, Manifold
8
VALVE (CENTER)
8
VALVE (LR/RR/CTR)
8
VALVE (LF)
8
VALVE (RF)
9
NUT, WING
10
W10160904 Whirlpool Broiler Burner
11
BURNER, BAKE
12
VALVE/REGULATOR
13
IGNITER (BAKE)
13
IGNITER (BAKE)
14
TUBING (BROILER FITTING TO VALVE)
15
FITTING, BROILER
16
COVER, IGNITOR WIRE
17
W10178934 Whirlpool Orifice Assembly
17
WPW10170506 Whirlpool Orifice Spud
17
W10853607 Whirlpool Orifice
17
WPW10170508 Whirlpool Orifice Spud
17
W10251991 Whirlpool Orifice Spud
18
W11684507 Whirlpool Screw
19
SCREW
20
WP3196175 Whirlpool Screw
22
BAFFLE, BROIL BURNER
23
SCREW
←
