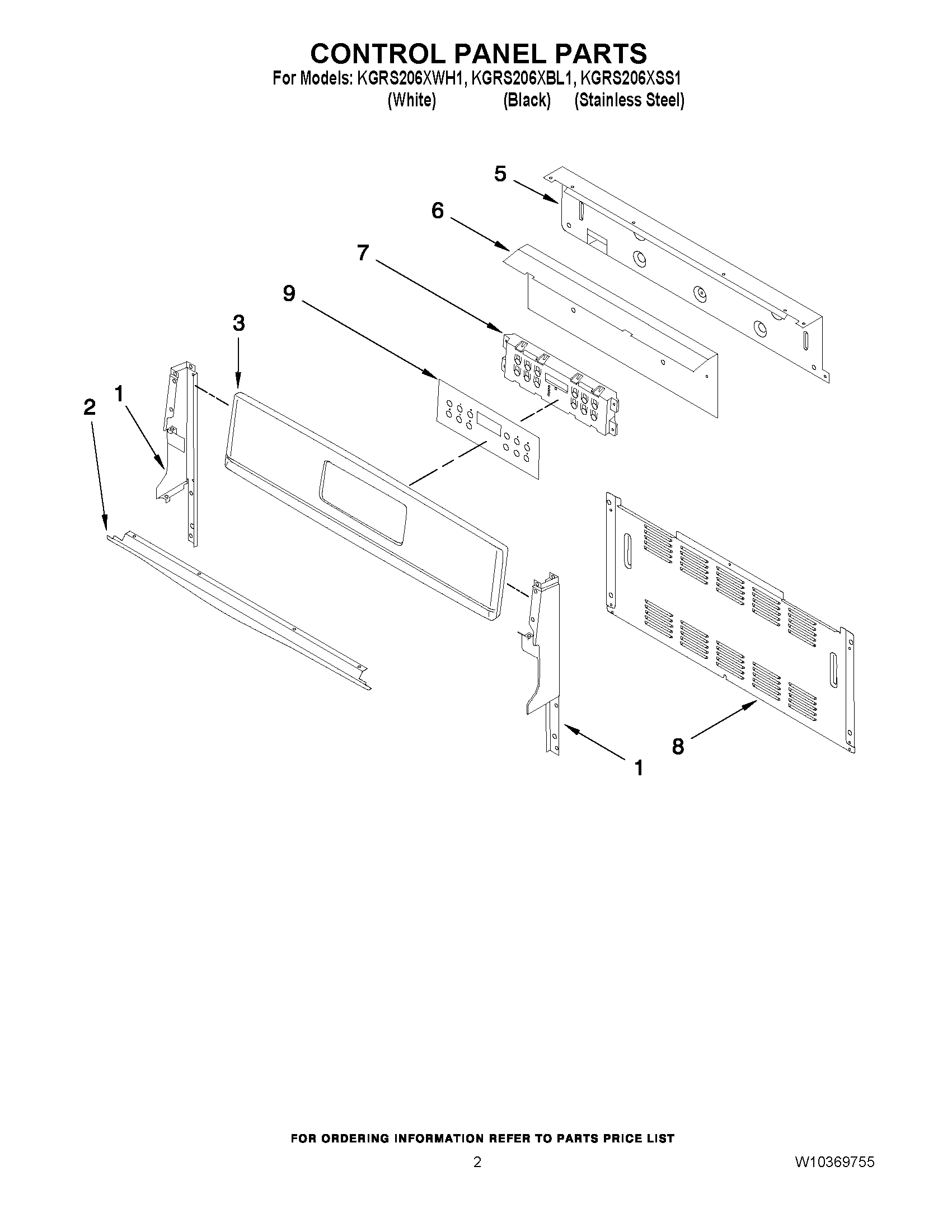

KGRS206XBL1 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	END CAP, RIGHT (BLACK)
1	END CAP, RIGHT (WHITE)
1	END CAP, LEFT (BLACK)
1	END CAP, LEFT (WHITE)
2	HEAT SHIELD,VISOR (BLACK)
2	HEAT SHIELD,VISOR (GRAY)
3	PANEL, BACKGUARD (STAINLESS STEEL)
3	PANEL, BACKGUARD (WHITE)
3	PANEL, BACKGUARD (BLACK)
5	HEAT SHIELD
6	REAR COVER
7	CONTROL
8	COVER, REAR WIRE
9	OVERLAY
