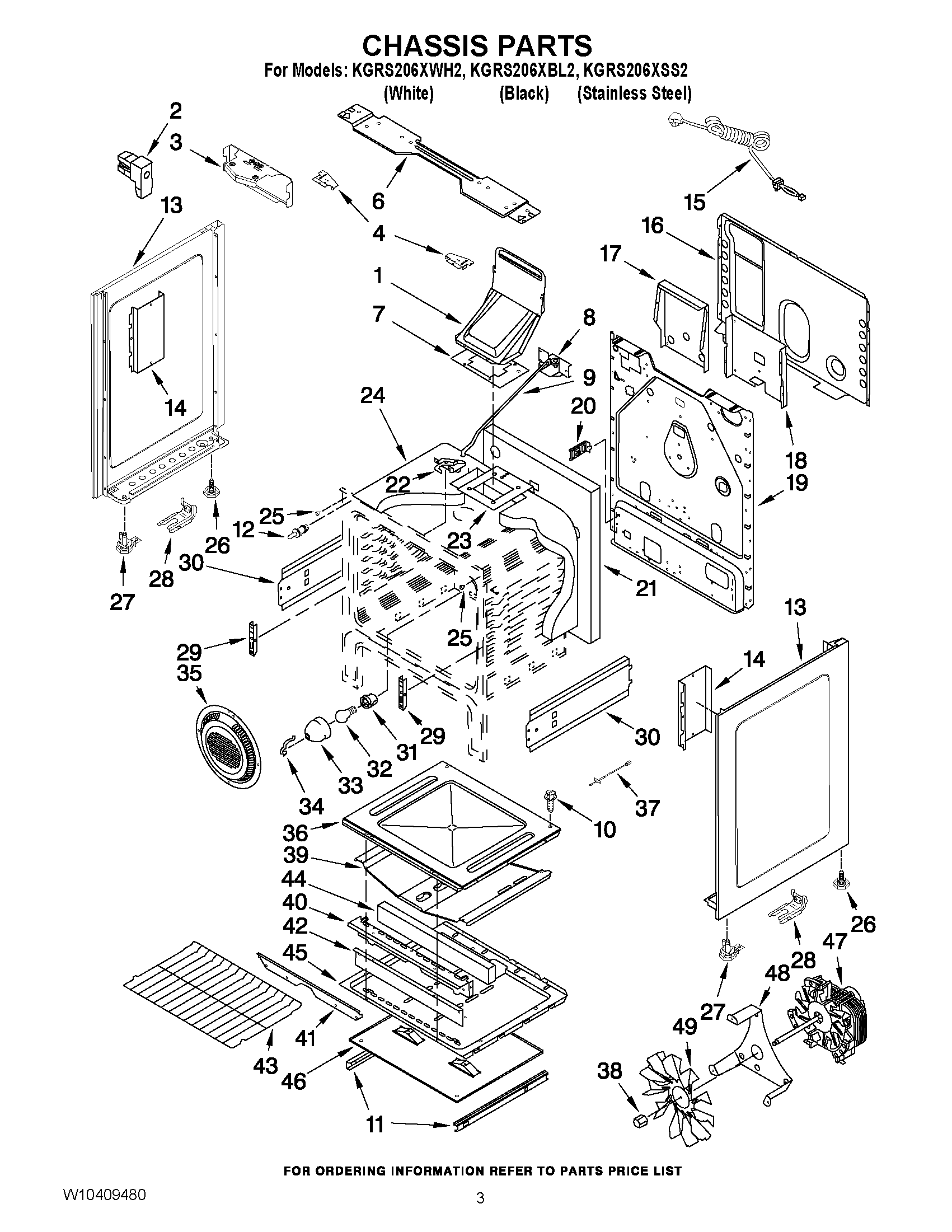

KGRS206XSS2 03 – CHASSIS PARTS

Products

Position	Product
1	OVEN FLUE
2	CLIP-OVEN BODY
3	BRACKET-PANEL
4	BRACKET, LOCKDOWN (RH)
4	BRACKET, LOCKDOWN (LH)
6	BRACKET, SUPPORT ELEMENT
7	GASKET, FLUE
8	WPW10350466 Whirlpool Latch Motor
9	ROD-LATCH
10	SCREW, OVEN BOTTOM
11	GLIDE-OUTER
12	SWITCH, OVEN LIGHT
13	PANEL, SIDE (WHITE-LH)
13	PANEL, SIDE (WHITE-RH)
13	PANEL, SIDE (BLACK-LH)
13	PANEL, SIDE (BLACK-RH)
14	SIDE SHIELD
15	W10413010 Whirlpool Power Cord
16	SHIELD, REAR WALL
17	SHIELD, FLUE
18	SHIELD, HEAT
19	COVER, REAR MAIN
20	BRACKET, HARNESS
21	INSULATION, MAIN FRONT
22	DOOR LATCH
23	BRACE, OVEN TOP
24	INSULATION, OVEN WRAPPER
25	SPACER, OVEN DOOR
26	LEG, LEVELING (REAR PLASTIC)
27	LEG, LEVELING (FRONT METAL)
28	W10544996 Whirlpool Anchor Tip
29	BRACKET, HINGE OVEN DOOR
30	SHIELD, SIDE (LH)
30	SHIELD, SIDE (RH)
31	SOCKET, LIGHT
32	RANGE ONLY 40W 120V APPL BULB
33	LENS-LIGHT
34	RETAINER, OVEN LIGHT LENS
35	COVER, FAN
36	BOTTOM, OVEN
37	OVEN SENSOR
38	NUT, FAN BLADE
39	BAFFLE, BAKE BURNER
40	SHIELD, FRONT BURNER
41	BRACKET, AIR DAM
42	SHIELD-MAIN FRONT
43	OVEN RACK
44	INSULATION, MAIN FRONT
45	SHIELD, WOOL LOWER
46	SHIELD, HEAT LOWER
47	WPW10347449 Whirlpool Fan Motor
48	BRACKET, MOTOR
49	WPW10355276 Whirlpool Appliance Fan Blade
