KGRS206XSS3 05 – BURNER

KGRS206XSS3 05 – BURNER

Written by

in

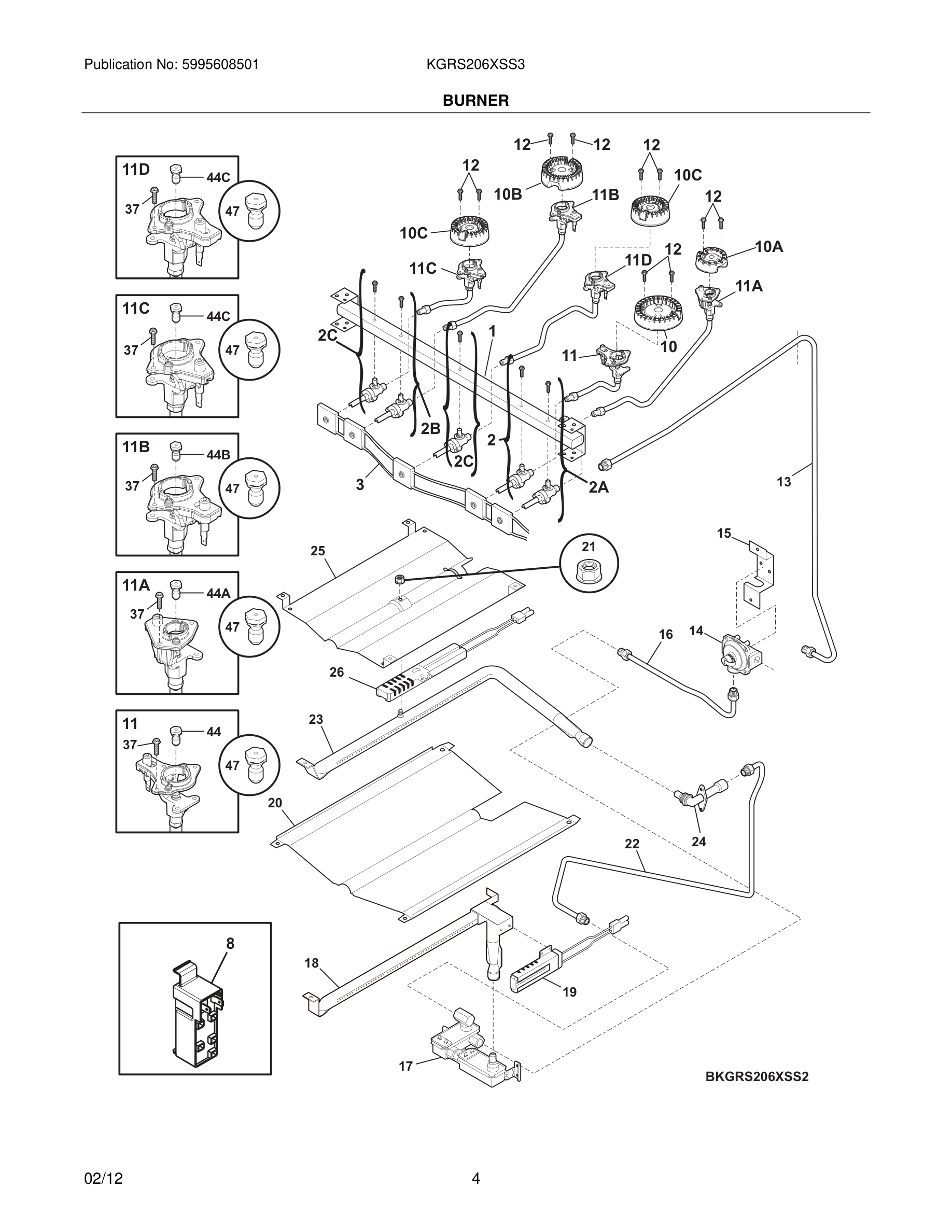

KGRS206XSS3 05 – BURNER

Products

PositionProduct
*5304494425 Frigidaire Oven Harness
*316215600 Frigidaire Oven Screw
*316021105 Frigidaire Oven Screw
*316001017 Frigidaire Screw
*316089500 Frigidaire Oven Screw
*241853202 Frigidaire Refrigerator Screw
*316021109 Frigidaire Oven Screw
1#316417901 Frigidaire Oven Manifold
2A#5303935308 Frigidaire Oven Valve
2C#5303935305 Frigidaire Oven Valve
2B#5303935306 Frigidaire Oven Valve
2#WCI 5303935236
3#316580614 Frigidaire Oven Wiring Harness
8#5304508269 Frigidaire Oven Range Spark Module Kit
8*316257400 Frigidaire Oven Bracket
10B#316438000 Frigidaire Sealed Burner 12K Assembly
10#316438400 Frigidaire Range Sealed Burner, 16/17K
10A#316438200 Frigidaire Range Sealed Burner, 5K
10C#316558300 Frigidaire Oven 9.5L Sealed Burner
11D#316536623 Frigidaire Igniter/Orifice Assembly
11C#316536602 Frigidaire Oven Igniter/Orifice Assembly
11A#316536610 Frigidaire Igniter Assembly/Orifice
11#316536622 Frigidaire Igniter Orifice Assembly
11B#316536612 Frigidaire Igniter Assembly/Orifice
12316540900 Frigidaire Oven Screw
13316489101 Frigidaire Suppl Tube-Manifold
14*316021104 Frigidaire Oven Screw Assembly
14#316091711 Frigidaire Regulator Assembly
15316091600 Frigidaire Oven Bracket
16#5304507348 Frigidaire Oven Tube
17#316404901 Frigidaire Oven Valve
17*316498100 Frigidaire Shield
18#316404400 Frigidaire Oven Burner
19#BAKE IGNITOR
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
22#5304507768 Frigidaire Oven Tube
23#316404302 Frigidaire Oven Burner
24#5304516894 Frigidaire Oven Elbow
25WCI 316401301
26#5304506545 Frigidaire Gas Oven Range Igniter
26*316401500 Frigidaire Oven Cover
37316240600 Frigidaire Igniter Mounting Screw
44B#316527502 Frigidaire Oven Orifice
44C#316527500 Frigidaire Oven Burner Orifice
44A#316527504 Frigidaire Oven Orifice
44#316527509 Frigidaire Oven 18.2K Burner Orifice
47#GRLP4 Frigidaire Oven LP Conversion Kit
