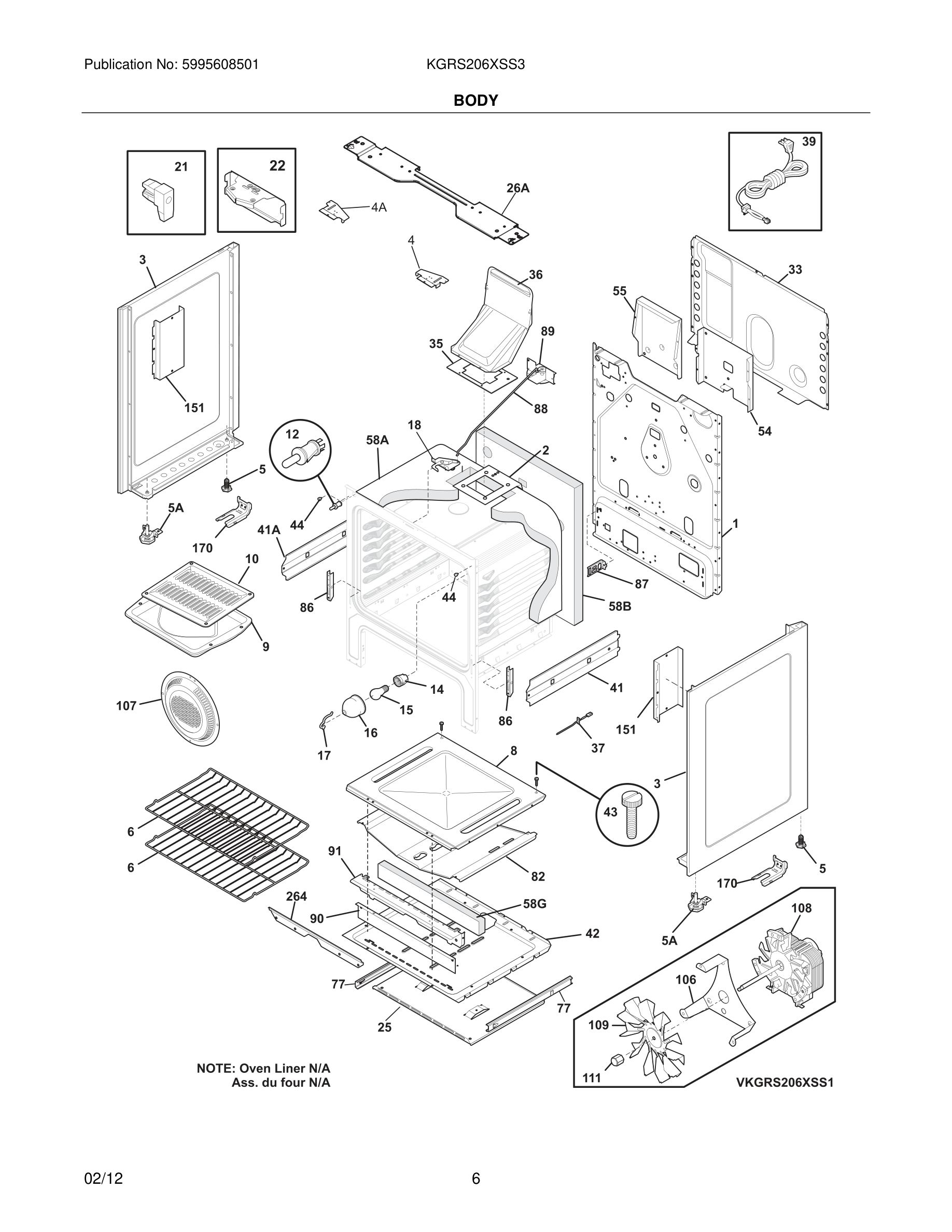

KGRS206XSS3 07 – BODY

KGRS206XSS3 07 – BODY

Written by

in

KGRS206XSS3 07 – BODY

Products

PositionProduct
*316021109 Frigidaire Oven Screw
*5303285179 Frigidaire Oven Door Screw
*316539800 Frigidaire Oven Retainer
*241853202 Frigidaire Refrigerator Screw
*316418901 Frigidaire Oven Screw
1316401608 Frigidaire Back
2316437100 Frigidaire Brace Assembly DSP
3316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
4AWCI 316285001
4316285000 Frigidaire Maintop Bracket
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316496201 Frigidaire Oven Rack
8316400603 Frigidaire Oven Stove Bottom Panel
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445500 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18#316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
25WCI 316571000
26A316498200 Frigidaire Oven Bracket
33316402500 Frigidaire Oven Shield
35316542102 Frigidaire Flue Gasket
36FLUE
37#316490000 Frigidaire Oven Range Temperature Sensor
39*316001017 Frigidaire Screw
395304515659 Frigidaire Oven Power Cord
41AWCI 316409201
41WCI 316409200
42316400700 Frigidaire Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
54WCI 316404200
555304510473 Frigidaire Shield
58BWCI 316403600
58A316403700 Frigidaire Insulation
58G08067973 Frigidaire 0 Insulation
77316456700 Frigidaire Oven Glide Assembly
82316400801 Frigidaire Oven Shield
82*316432800 Frigidaire Clip
86*316418900 Frigidaire Oven Screw
86316441300 Frigidaire Receptacle
87316401202 Frigidaire Bracket
88316232702 Frigidaire Rod
89#MOTOR
