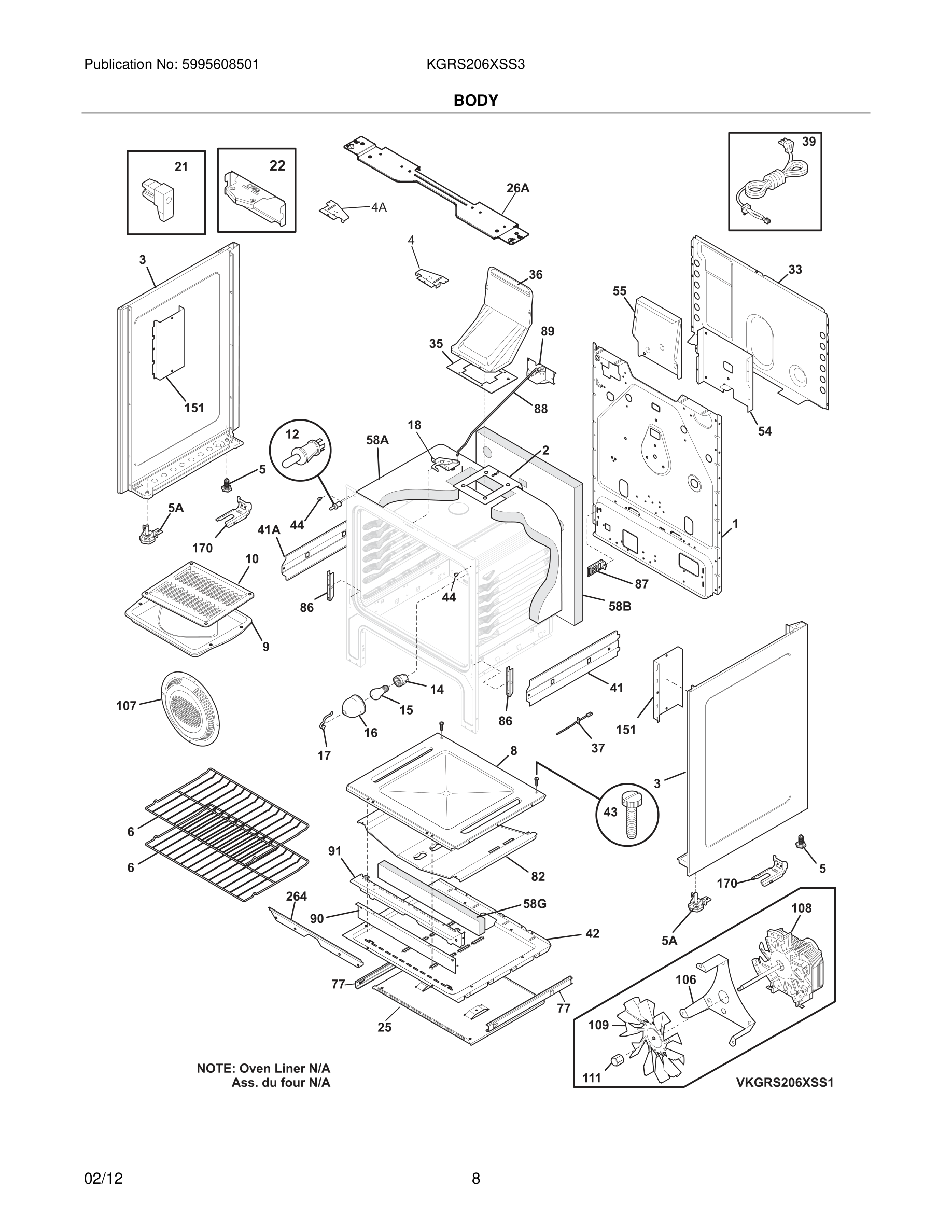

KGRS206XSS3 09 – BODY

KGRS206XSS3 09 – BODY

Written by

in

KGRS206XSS3 09 – BODY

Products

PositionProduct
*316021105 Frigidaire Oven Screw
*316279600 Frigidaire Screw
*316231800 Frigidaire Cover
*#Harness, wiring, main
*316021132 Frigidaire Screw
*316089500 Frigidaire Oven Screw
*316021109 Frigidaire Oven Screw
90WCI 316401100
91WCI 316401000
106316404100 Frigidaire Oven Bracket
107WCI 316026702
108#316256900 Frigidaire Oven Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
151WCI 316404600
170*316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170*316116000 Frigidaire Screw
264316404700 Frigidaire Bracket
