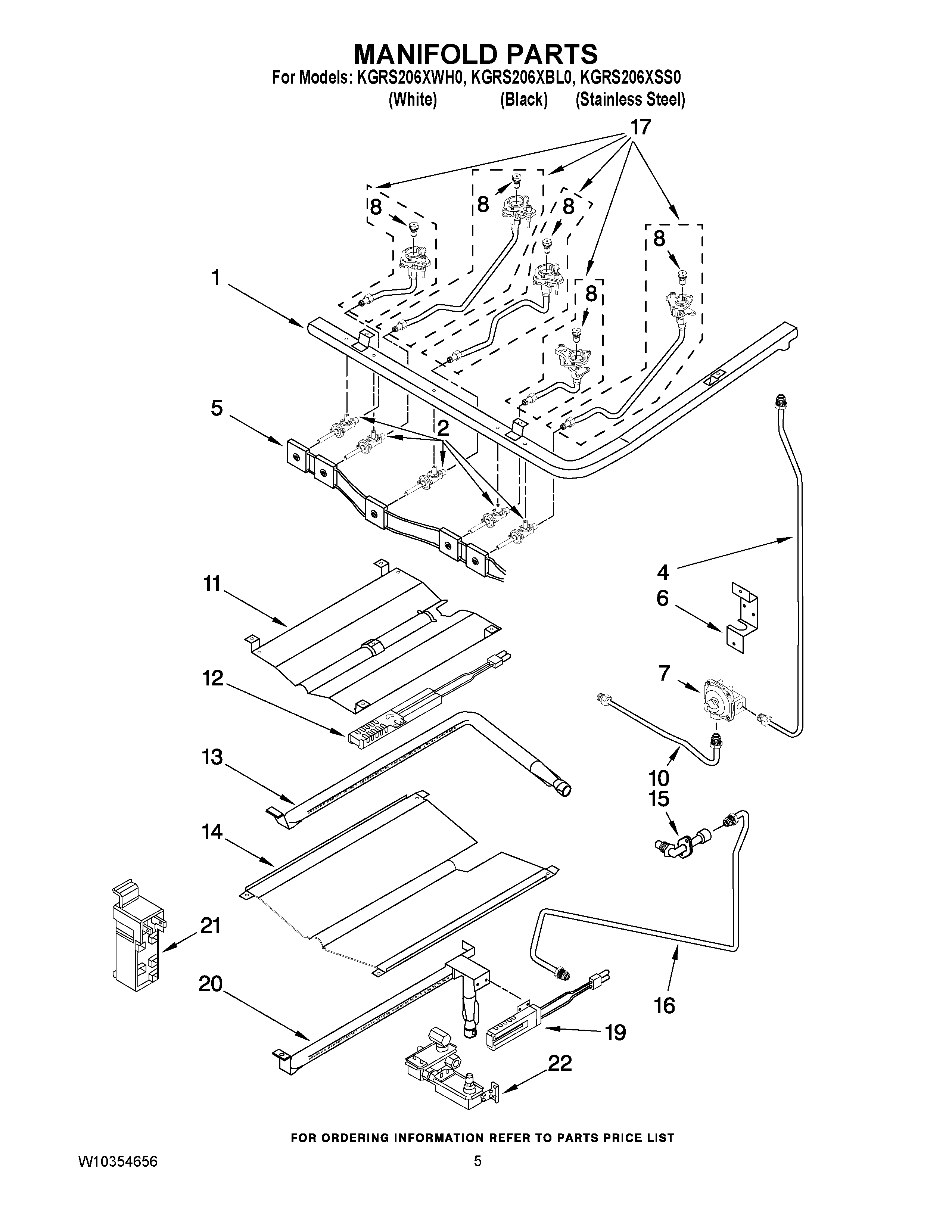

KGRS206XWH0 04 – MANIFOLD PARTS

KGRS206XWH0 04 – MANIFOLD PARTS

Written by

in

KGRS206XWH0 04 – MANIFOLD PARTS

Products

PositionProduct
NISHIELD, GAS KNOB
NIHARNESS, IGNITOR
NISPUDS, LP GAS (KIT OF 5)
NICOVER, BROIL IGNITOR
NIBRACKET, SUPPORT SPARK MODULE
1W10315164 Whirlpool Manifold Pipe
2VALVE, BURNER (12K (LR))
2W10315175 Whirlpool Burner Valve
2W10315173 Whirlpool Burner Valve
2W10315171 Whirlpool Burner Valve
4TUBING, GAS
5HARNESS, IGNITER INCLUDES SWITCHES
6BRACKET, REGULATOR
7REGULATOR,
8ORIFICE (5K (RR)
8W10346166 Whirlpool Orifice
8W10346170 Whirlpool Orifice
8ORIFICE (17K (RF))
10TUBE, VALVE TO REGULATOR
11BAFFLE, BROIL BURNER
12IGNITOR, BURNER
13W10346063 Whirlpool Burner – Broiler
14BAFFLE, OVEN BURNER
15ELBOW, FITTING
16TUBE, VALVE TO MIXER
17IGNITOR/ORIFICE ASSEMBLY (17K (RF))
17WPW10345919 Whirlpool Orifice Holder
17WPW10345910 Whirlpool Orifice Holder
17IGNITOR/ORIFICE ASSEMBLY (9.5K (LF)
17IGNITOR/ORIFICE ASSEMBLY (12K (LR))
19W11084521 Whirlpool Oven Igniter
20W10346052 Whirlpool Oven Burner
21W11084522 Whirlpool Spark Module
22VALVE, SAFETY
