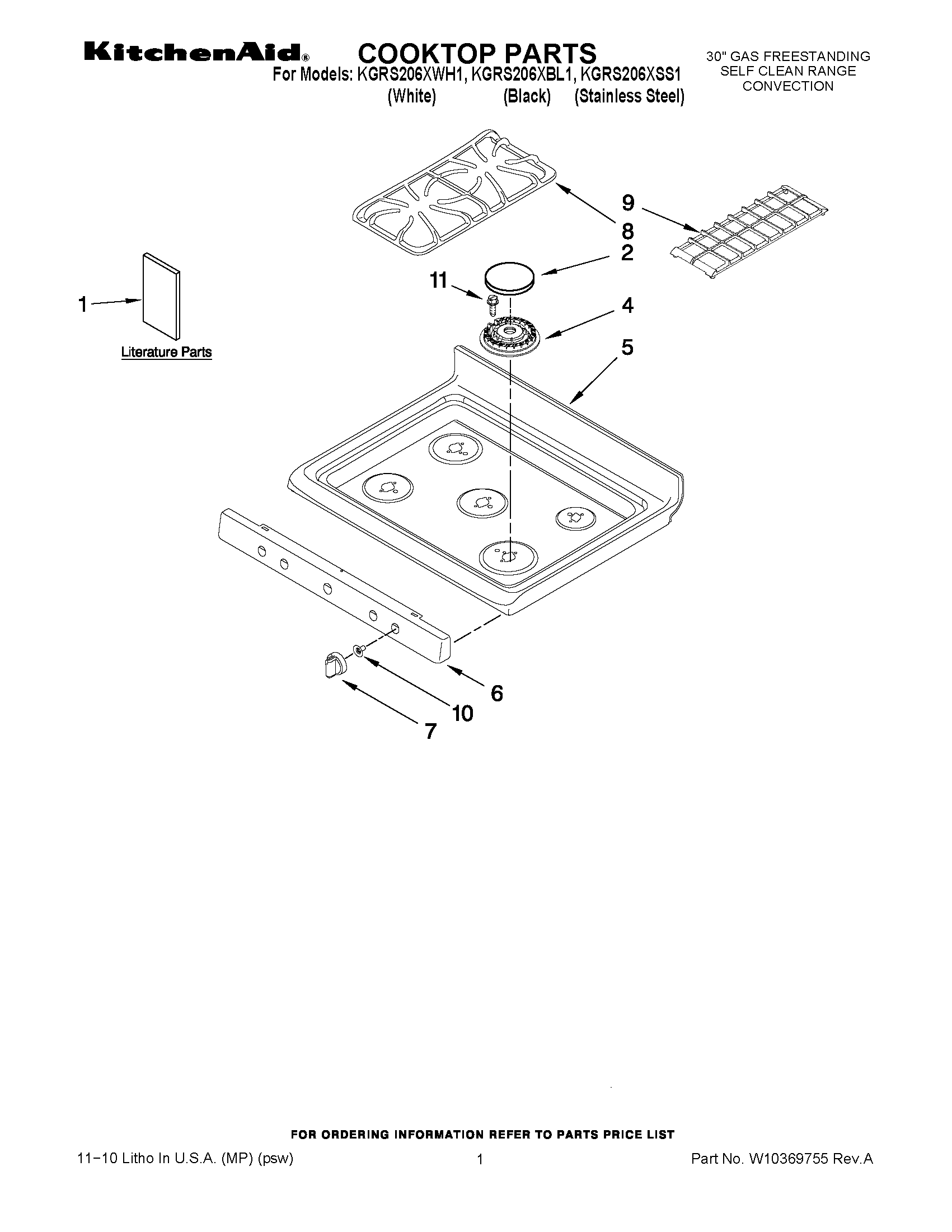

KGRS206XWH1 01 – COOKTOP PARTS

Products

Position	Product
1	OWNERS MANUAL
1	INSTALLATION INSTRUCTIONS
1	TECH SHEET
2	WPW10347750 Whirlpool Burner Cap
2	WPW10347755 Whirlpool Burner Cap
2	WPW10347764 Whirlpool Burner Cap
2	CAP, BURNER (5K(RR)
4	BURNER (9.5K(LF & CENTER)
4	BURNER (5K (RR)
4	WPW10345847 Whirlpool Burner Head
4	W10345845 Whirlpool Burner Head
5	COOKTOP (BLACK)
5	COOKTOP (WHITE)
6	PANEL, MANIFOLD (WHITE)
6	PANEL, MANIFOLD (BLACK)
6	PANEL, MANIFOLD (STAINLESS STEEL)
7	KNOB, CONTROL S.STEEL (1)
7	KNOB, CONTROL S.STEEL (4)
7	KNOB, CONTROL BLACK (1)
7	KNOB, CONTROL WHITE (4)
7	KNOB, CONTROL BLACK (4)
7	W10340816 Whirlpool Knob
8	GRATE, BURNER BLACK, SIDE
9	GRATE, BURNER BLACK, CENTER
10	SHIELD, GAS KNOB
11	SCREW, BURNER HEAD
