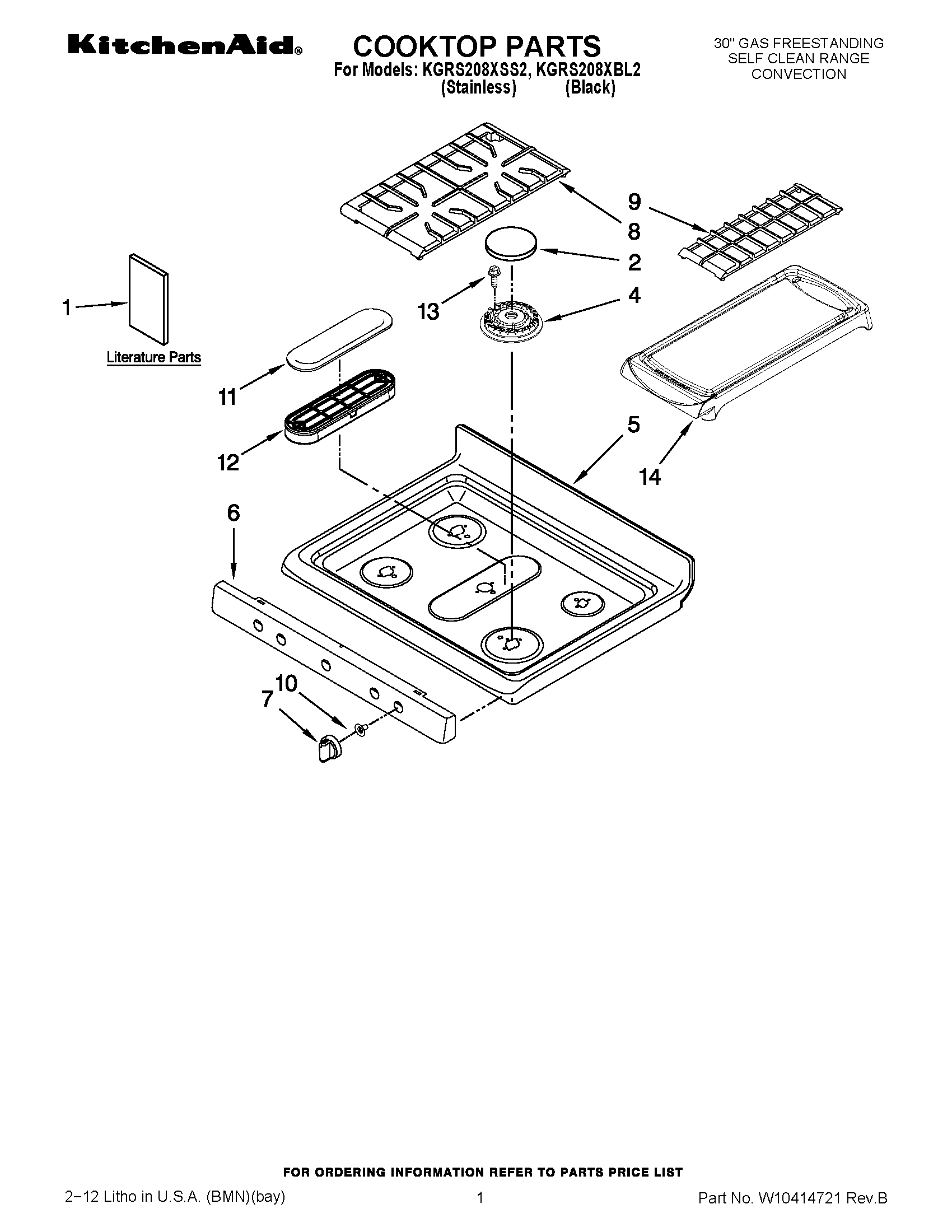

KGRS208XBL2 01 – COOKTOP PARTS

Products

PositionProduct
1TECH SHEET
1OWNERS MANUAL
1INSTALLATION INSTRUCTIONS
2WPW10347764 Whirlpool Burner Cap
2WPW10347755 Whirlpool Burner Cap
2WPW10347750 Whirlpool Burner Cap
2CAP, BURNER (5K(RR)
4WPW10345847 Whirlpool Burner Head
4BURNER (5K (RR)
4W10345845 Whirlpool Burner Head
4BURNER (9.5K(LF & CENTER)
5COOKTOP (BLACK)
6PANEL, MANIFOLD (STAINLESS STEEL)
6PANEL, MANIFOLD (BLACK)
7KNOB, CONTROL BLACK (1)
7KNOB, CONTROL BLACK (4)
7KNOB, CONTROL S.STEEL (1)
7KNOB, CONTROL S.STEEL (4)
8GRATE, BURNER BLACK, SIDE
9GRATE, BURNER BLACK, CENTER
10SHIELD, GAS KNOB
11CAP, BURNER BLACK-OVAL
12BURNER, OVAL
13SCREW, BURNER HEAD
14GRIDDLE
