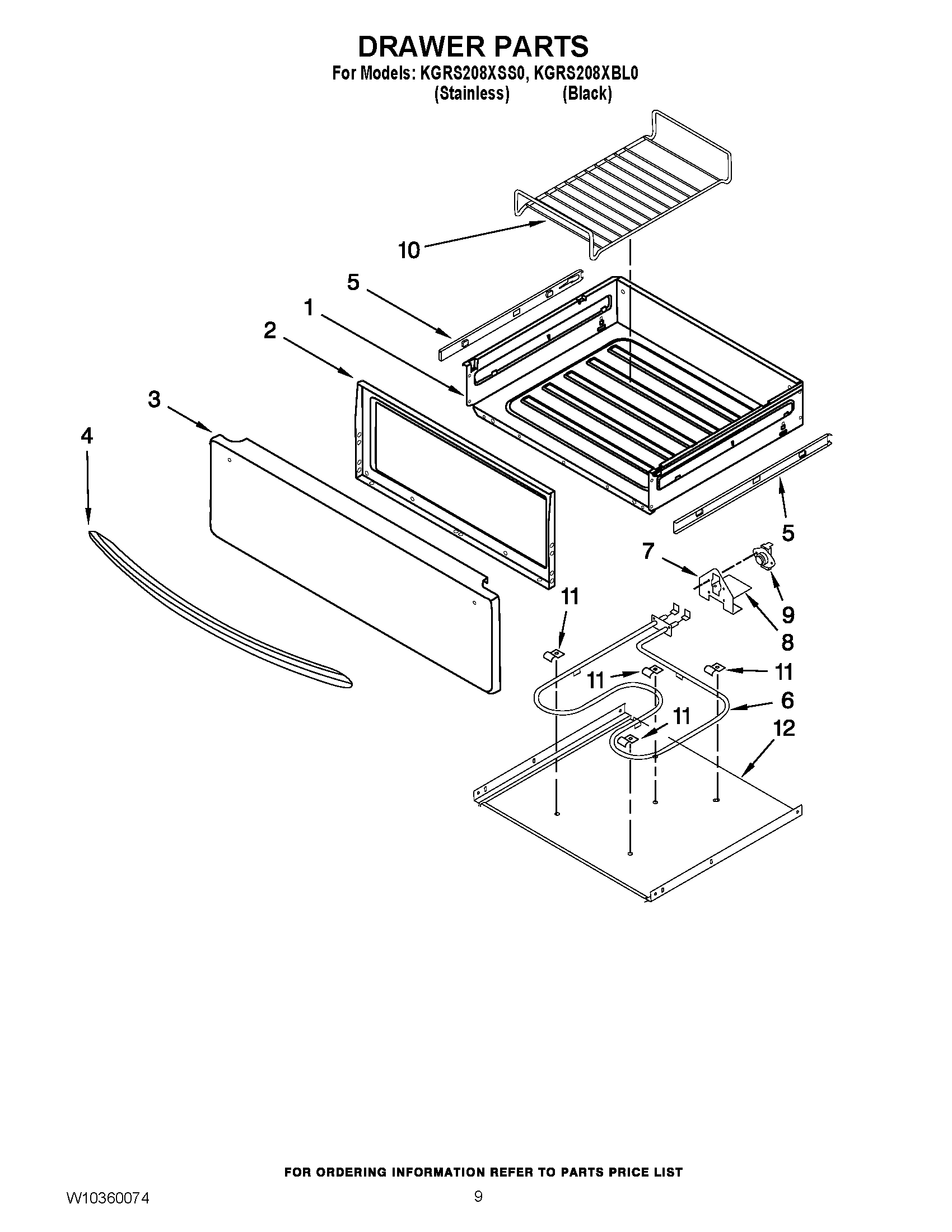

KGRS208XSS0 06 – DRAWER PARTS

Products

PositionProduct
1DRAWER, UTILITY
2LINER, DRAWER FRONT FRAME
3PANEL, DRAWER, OUTER (BLACK)
3PANEL, DRAWER, OUTER (STAINLESS)
4HANDLE, DOOR (STAINLESS)
4HANDLE, DRAWER (BLACK)
5GLIDE, DRAWER (LH)
5GLIDE, DRAWER (RH)
6ELEMENT-BAKE WARMING DRAWER
7BRACKET, ELEMENT
8SHIELD-TERMINAL WARMING DRAWER
9THERMO DISC
10RACK, WARMING DRAWER
11CLIP, HOLD DOWN
12BASE, WARMING DRAWER
