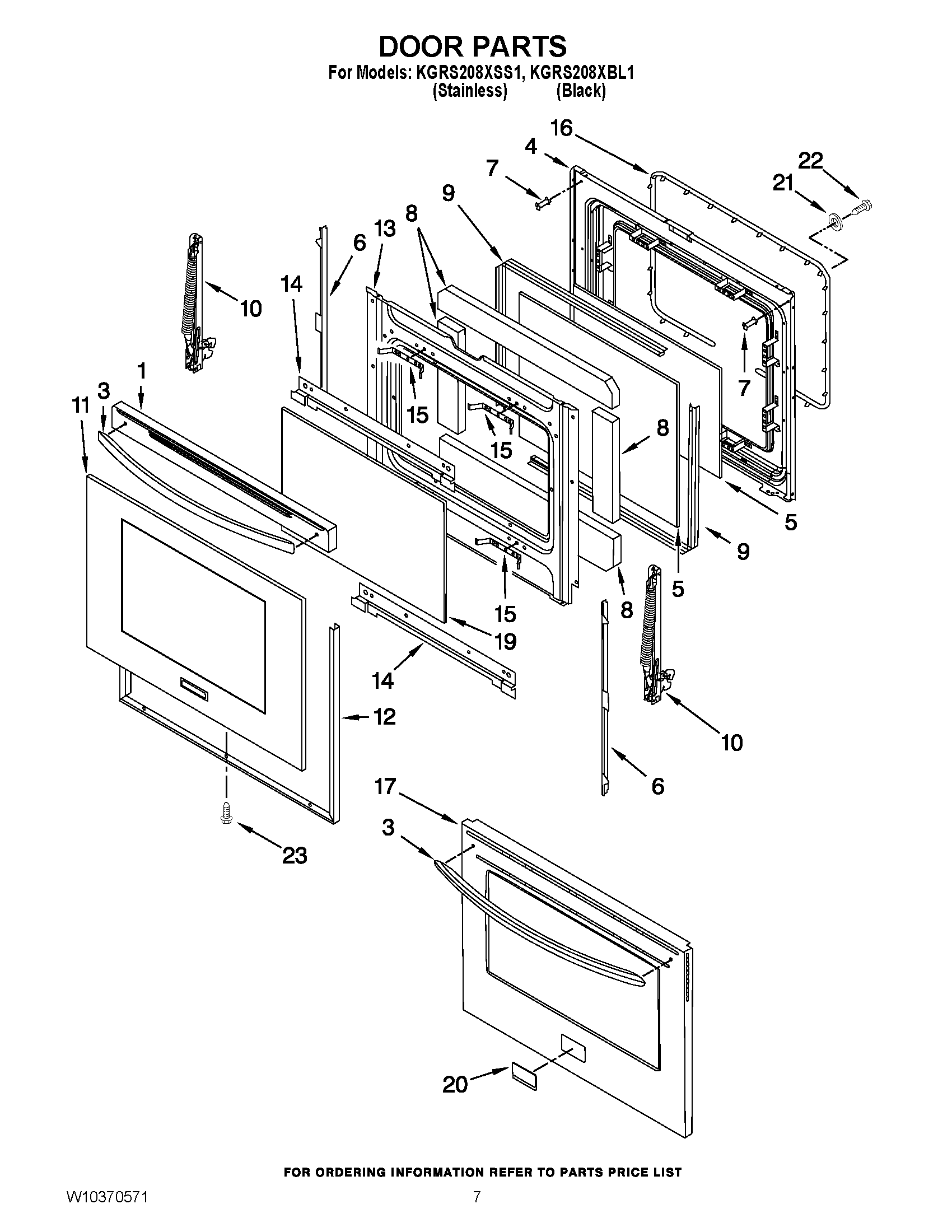

KGRS208XSS1 05 – DOOR PARTS

Products

Position	Product
1	TRIM, DOOR TOP (BLACK)
3	HANDLE, DRAWER (BLACK)
3	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	GLASS, INNER
6	BRACKET, GLASS (STAINLESS MODEL ONLY)
7	SPACER, DOOR HANDLE STAINLESS MODEL ONLY)
8	INSULATION, DOOR
9	FRAME, DOOR GLASS
10	HINGE, DOOR (BLACK)
10	HINGE, DOOR (STAINLESS)
11	GLASS, OUTER DOOR (STAINLESS STEEL)
11	GLASS, OUTER DOOR (BLACK)
12	TRIM, DOOR SIDE (BLACK)
13	RETAINER, SHIELD-WOOL
14	BRACKET, AIRWASH GLASS
15	BRACKET, GLASS SPACER (STAINLESS MODEL ONLY)
16	SEAL, DOOR
17	DOOR PANEL (STAINLESS MODEL ONLY)
19	GLASS, DOOR INNER
20	W10852683 Whirlpool Nameplate
20	Nameplate (Black)
21	WASHER, DOOR
22	SCREW, DOOR (BLACK)
22	SCREW, DOOR
23	SCREW, DOOR PANEL
