KGRS303BBL1 02 – COOKTOP PARTS
Written by
in

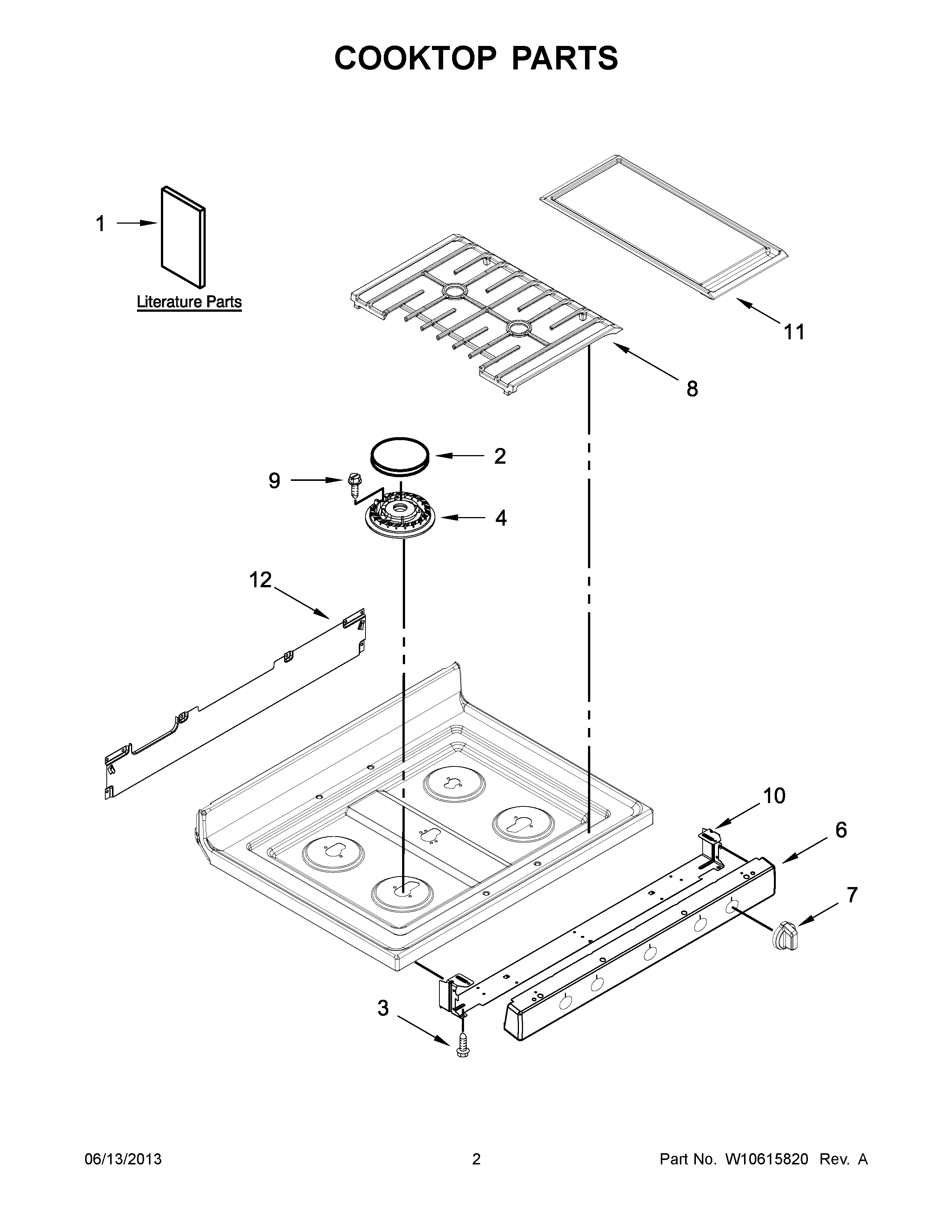

KGRS303BBL1 02 – COOKTOP PARTS
Products
Position
Product
1B
TECH SHEET (ENGLISH)
1
WPL W10553363
1E
GUIDE, QUICK START
1F
QUICK START GUIDE (FRENCH)
1A
USER INSTRUCTIONS
1D
Safer Cooking Tips (French)
1C
SAFER COOKING TIPS (ENGLISH
2
WPW10183374 Whirlpool Burner Cap
3
WPW10067840 Whirlpool Screw
4
WPW10515455 Whirlpool Burner Head
4A
WPW10515454 Whirlpool Burner Head
4B
WPW10515453 Whirlpool Burner Head
5
W10457322 Whirlpool Cooktop
5A
W10457321 Whirlpool Cooktop
6B
PANEL, MANIFOLD (STAINLESS)
6
PANEL, MANIFOLD (WHITE)
6A
PANEL, MANIFOLD (BLACK)
7
W10524670 Whirlpool Knob Assembly
7B
WPW10324398 Whirlpool Knob
7A
KNOB, CONTROL (BLACK)
8
GRATE, SET (BLACK)
9
WP3368921 Whirlpool Screw
10
W10534174 Whirlpool Support Bracket
11
W10347386A Whirlpool Range Griddle
12
W10530070 Whirlpool Support Bracket
←
