KGRS303BBL1 03 – CONTROL PANEL PARTS
Written by
in

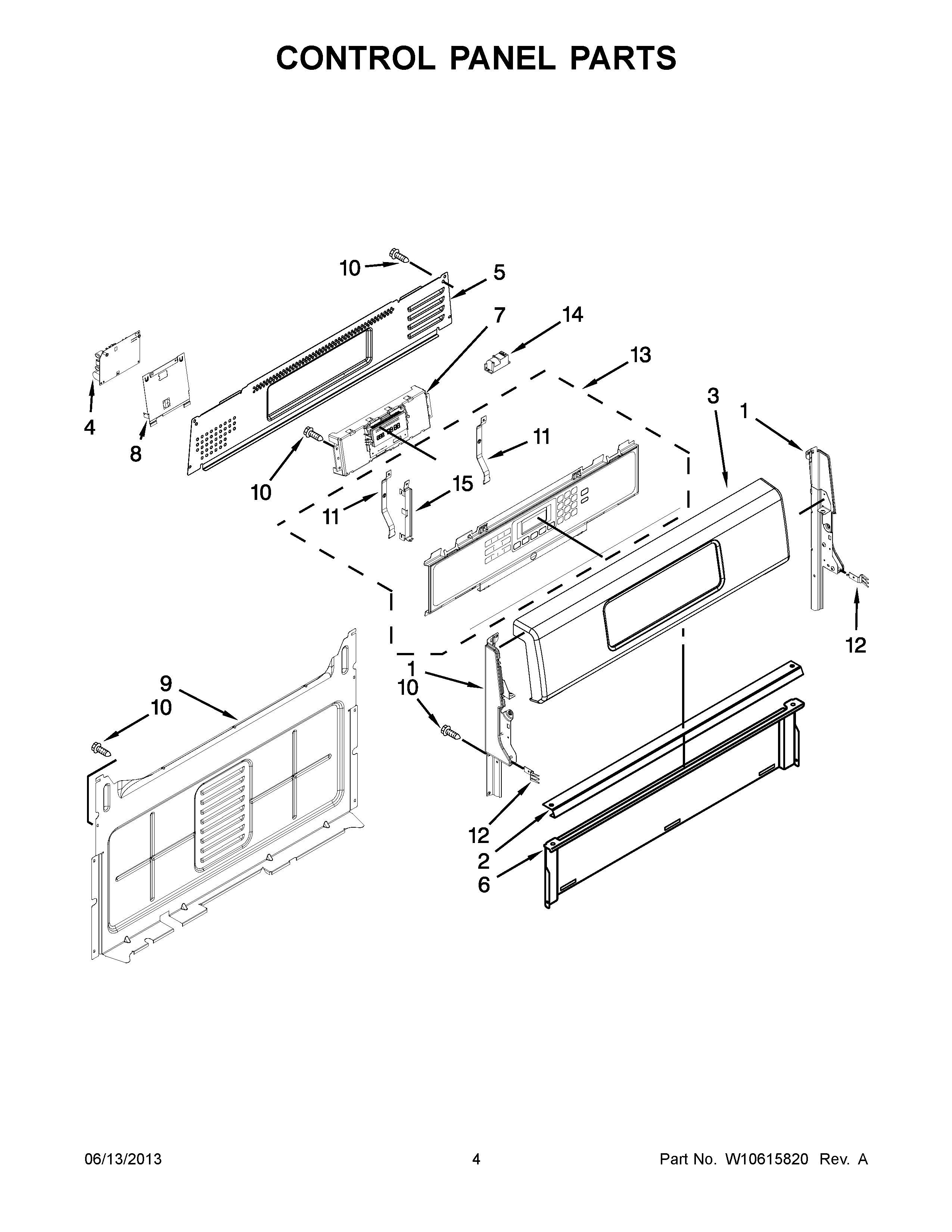

KGRS303BBL1 03 – CONTROL PANEL PARTS
Products
Position
Product
1B
W11219370 Whirlpool Endcap Panel
1A
W11219664 Whirlpool Endcap Panel
1C
W11219665 Whirlpool Panel Endcap
1
W11219365 Whirlpool Panel Endcap
2
W10516123 Whirlpool Mounting Bracket
3A
CONSOLE (BLACK)
3
CONSOLE (WHITE)
3B
CONSOLE (STAINLESS)
4
WPW10511278 Whirlpool Spark Module
5
W10198745 Whirlpool Rear Cover
6
W10192841 Whirlpool Heat Shield
7
WPW10340700 Whirlpool Electronic Control Board
8
W10516577 Whirlpool Bracket Mounting
9
W10184251 Whirlpool Rear Cover
10
SCREW
11
BRACKET, CONTROL
12
8523412 Whirlpool Mounting Bracket
13
W10324433 Whirlpool Membrane Switch
14
WPW10475149 Whirlpool Spark Module
←
