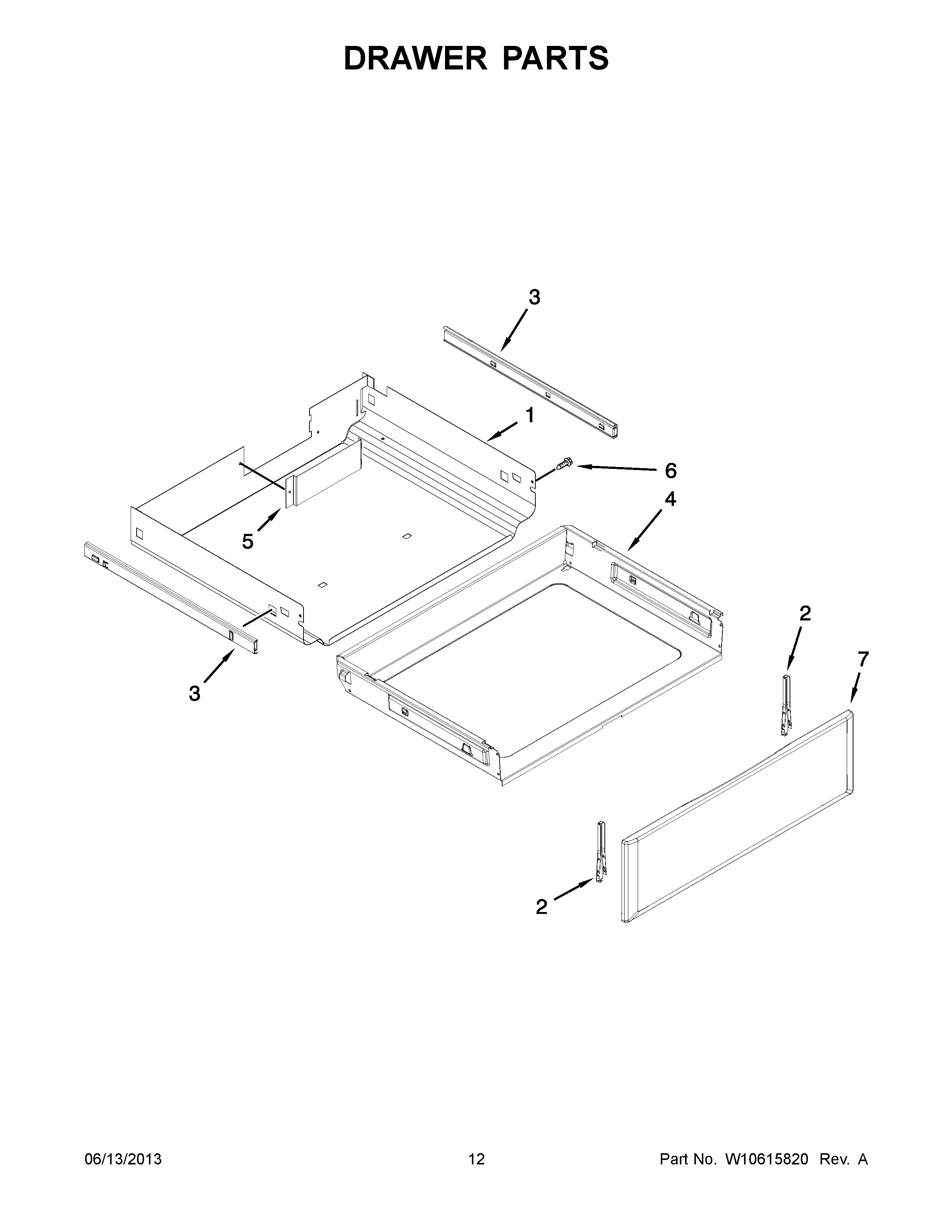

KGRS303BBL1 07 – DRAWER PARTS

Written by

Products

Position	Product
1	DRAWER, ENCLOSURE
2	WPW10318026 Whirlpool Mounting Bracket
3	WPW10441804 Whirlpool Drawer Slide
3A	WPW10441805 Whirlpool Slide Drawer
4	W10813962 Whirlpool Utility Drawer
5	W10325438 Whirlpool Cover Panel
6	WP3196175 Whirlpool Screw
7A	PANEL, DRAWER FRONT (BLACK)
7	W10330041 Whirlpool Drawer Panel
7B	WPW10330044 Whirlpool Drawer Panel
