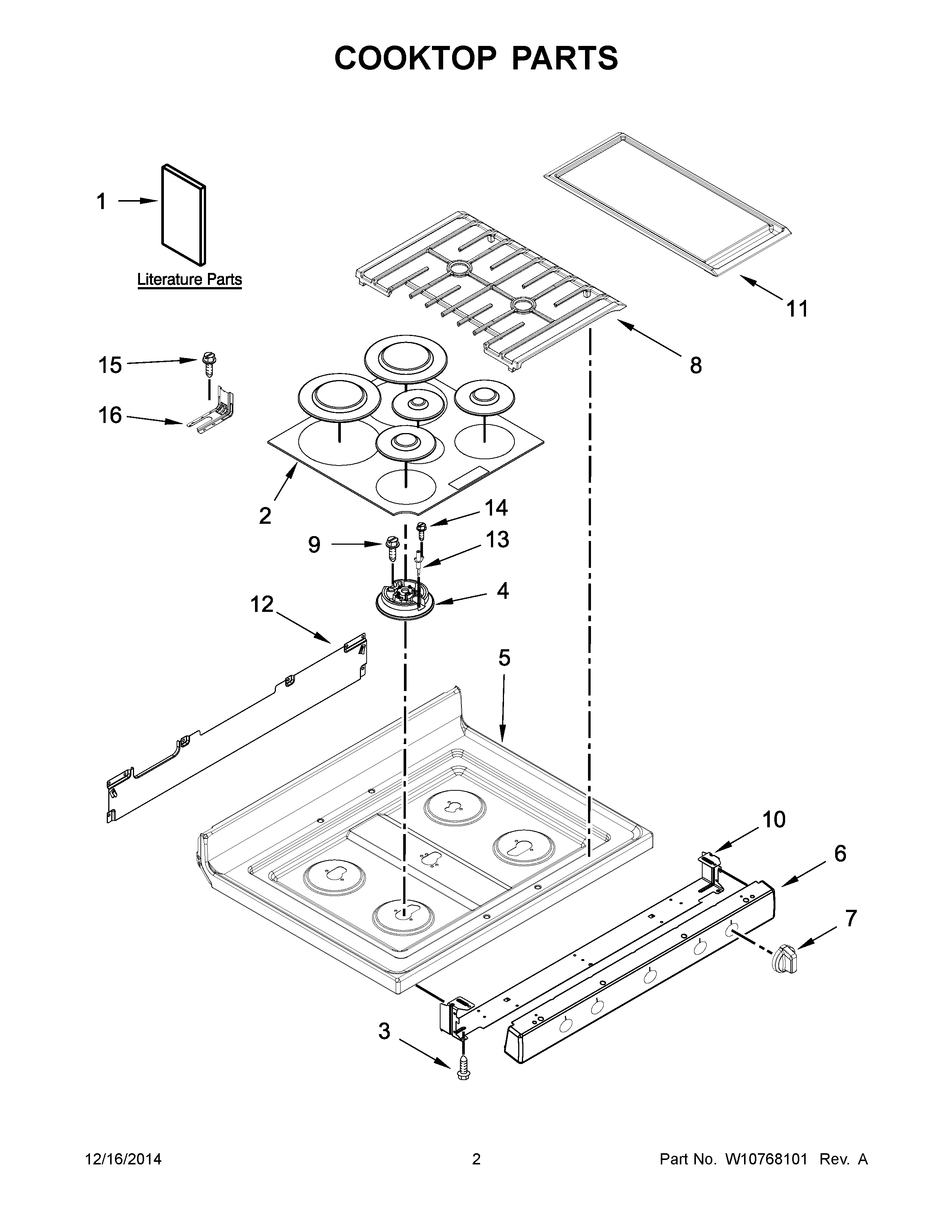

KGRS303BBL2 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	W10519920 Whirlpool Wire Harness
NI	W10738993 Whirlpool Wire Harness
NI	WPW10701462 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	CABINET (NOT A SERVICEABLE PART)
1G	QUICK START GUIDE (FRENCH)
1	WPL W10553363
1D	SAFER COOKING TIPS (ENGLISH
1B	TECH SHEET (ENGLISH)
1E	Safer Cooking Tips (French)
1A	USER INSTRUCTIONS
1C	SHEET, TECH (FRENCH)
1F	GUIDE, QUICK START
2	WPW10183374 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	WPW10515455 Whirlpool Burner Head
4A	WPW10515454 Whirlpool Burner Head
4B	WPW10515453 Whirlpool Burner Head
5A	W10457321 Whirlpool Cooktop
5	W10457322 Whirlpool Cooktop
6A	PANEL, MANIFOLD (BLACK)
6B	PANEL, MANIFOLD (STAINLESS)
6	PANEL, MANIFOLD (WHITE)
7B	WPW10324398 Whirlpool Knob
7	W10524670 Whirlpool Knob Assembly
7A	KNOB, CONTROL (BLACK)
8	GRATE, SET (BLACK)
9	WP3368921 Whirlpool Screw
10	W10534174 Whirlpool Support Bracket
11	W10347386A Whirlpool Range Griddle
12	W10530070 Whirlpool Support Bracket
13	WPW10515459 Whirlpool Surface Igniter
14B	W11447673 Whirlpool Range Tip Anchor
14A	SCREW, ANTI-TIP KIT
14	WP8273062 Whirlpool Screw
