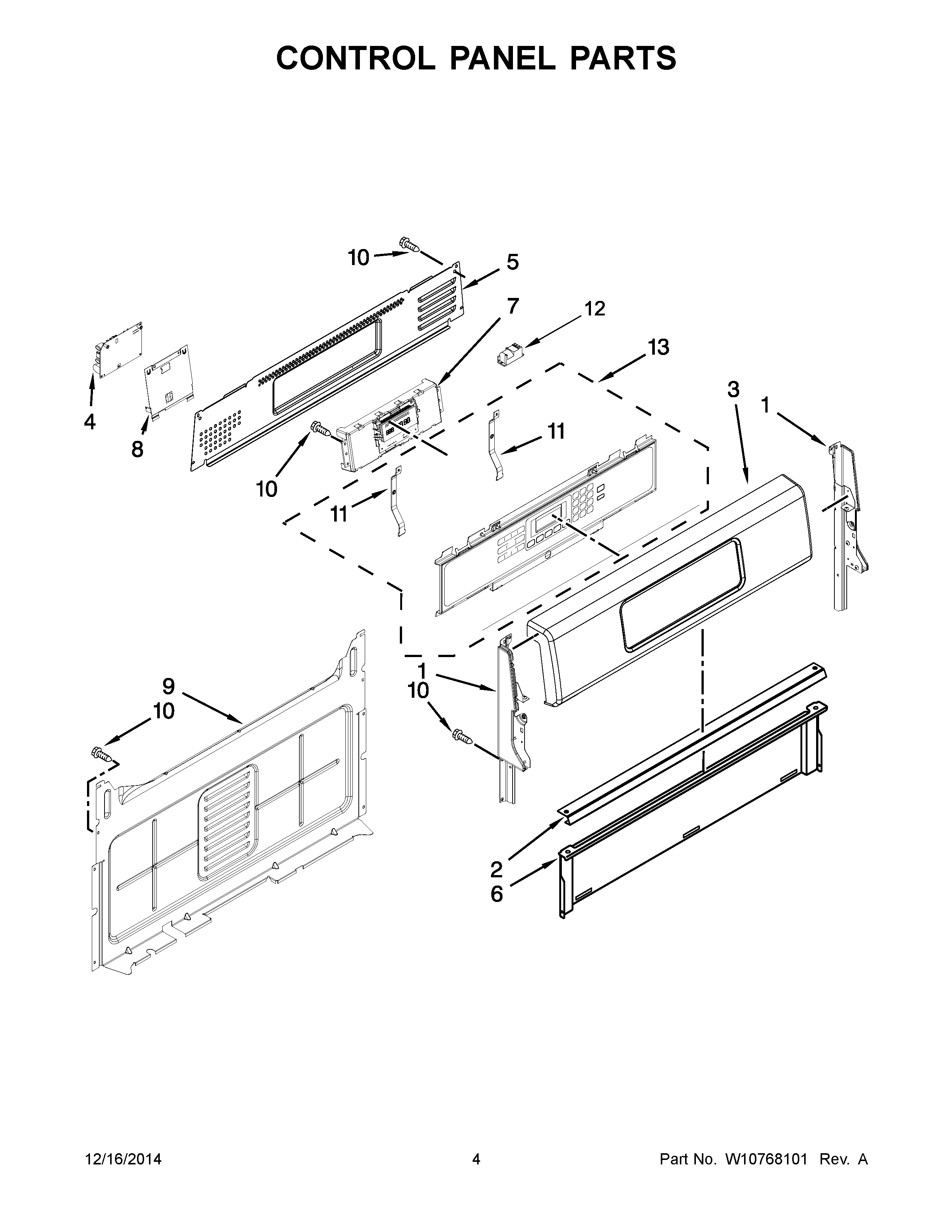

KGRS303BBL2 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1A	W11219664 Whirlpool Endcap Panel
1C	W11219665 Whirlpool Panel Endcap
1B	W11219370 Whirlpool Endcap Panel
2	W10516123 Whirlpool Mounting Bracket
3A	CONSOLE (BLACK)
3B	CONSOLE (STAINLESS)
3	CONSOLE (WHITE)
4	WPW10511278 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	WPW10340700 Whirlpool Electronic Control Board
8	W10516577 Whirlpool Bracket Mounting
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	BRACKET, CONTROL
12	WPW10475149 Whirlpool Spark Module
13	W10324433 Whirlpool Membrane Switch
