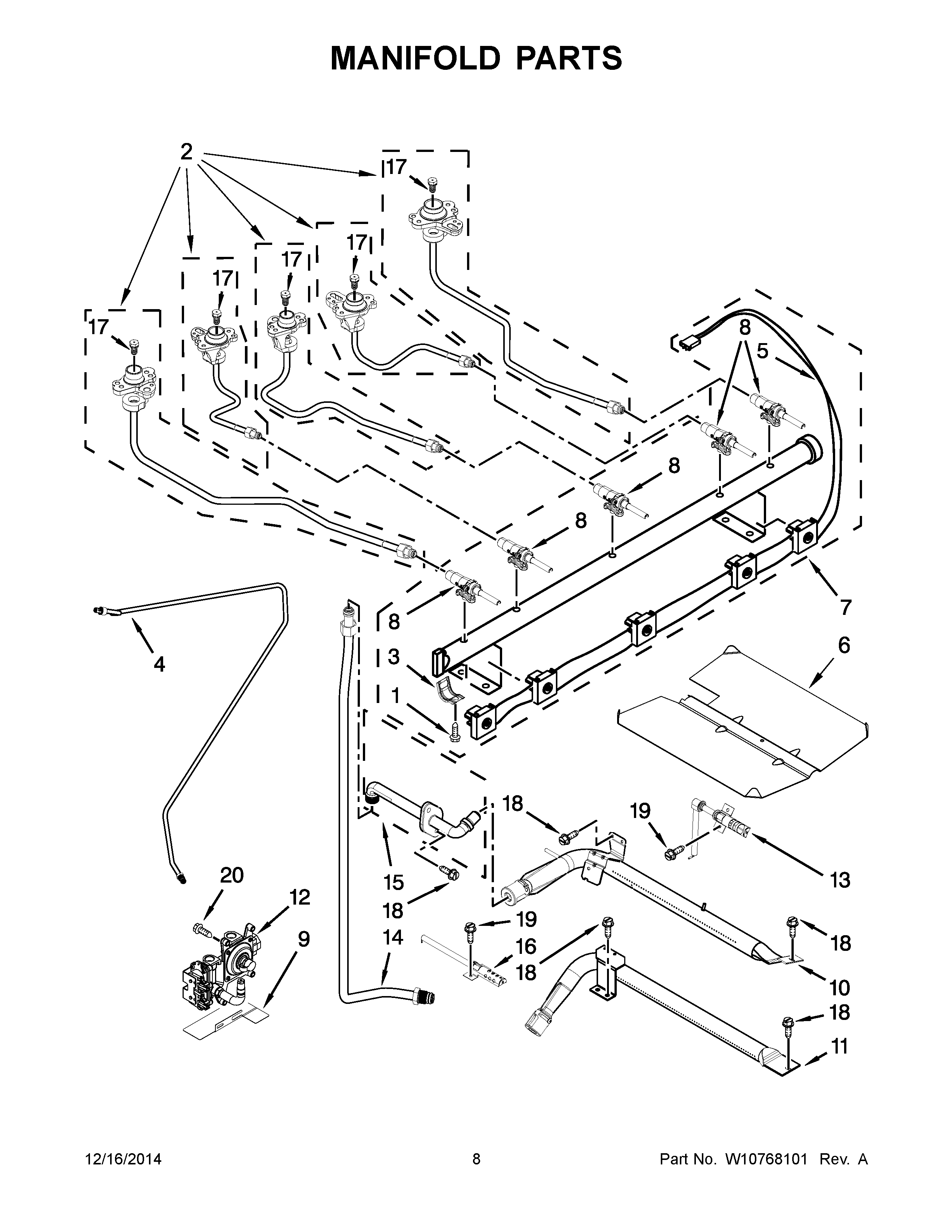

KGRS303BSS2 05 – MANIFOLD PARTS

Products

Position	Product
NI	SPUD-ORFCE
NI	CABINET (NOT A SERVICEABLE PART)
NI	KIT, BAKE & BROIL
1	W10295997 Whirlpool Screw
2C	W10473935 Whirlpool Orifice Holder
2D	W10474170 Whirlpool Orifice Holder
2	W11234417 Whirlpool Surface Burner Orifice Holder
2A	W11700304 Whirlpool Orifice Holder
2B	W11700294 Whirlpool Range Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10510125 Whirlpool Gas Tubing
5	W10413869 Whirlpool Wire Harness
6	BAFFLE, BROIL BURNER
7	WPW10413871 Whirlpool Manifold
8	WPW10279615 Whirlpool Burner Valve
8B	WPW10247744 Whirlpool Burner Valve
8A	WPW10279614 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	WPW10602004 Whirlpool Regulator
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10583216 Whirlpool Fitting Assembly
16	WPW10333842 Whirlpool Oven Igniter
17	WPW10347414 Whirlpool Orifice Spud
17D	WPW10170507 Whirlpool Orifice
17C	W10853607 Whirlpool Orifice
17A	WPW10170506 Whirlpool Orifice Spud
17B	WPW10170508 Whirlpool Orifice Spud
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
