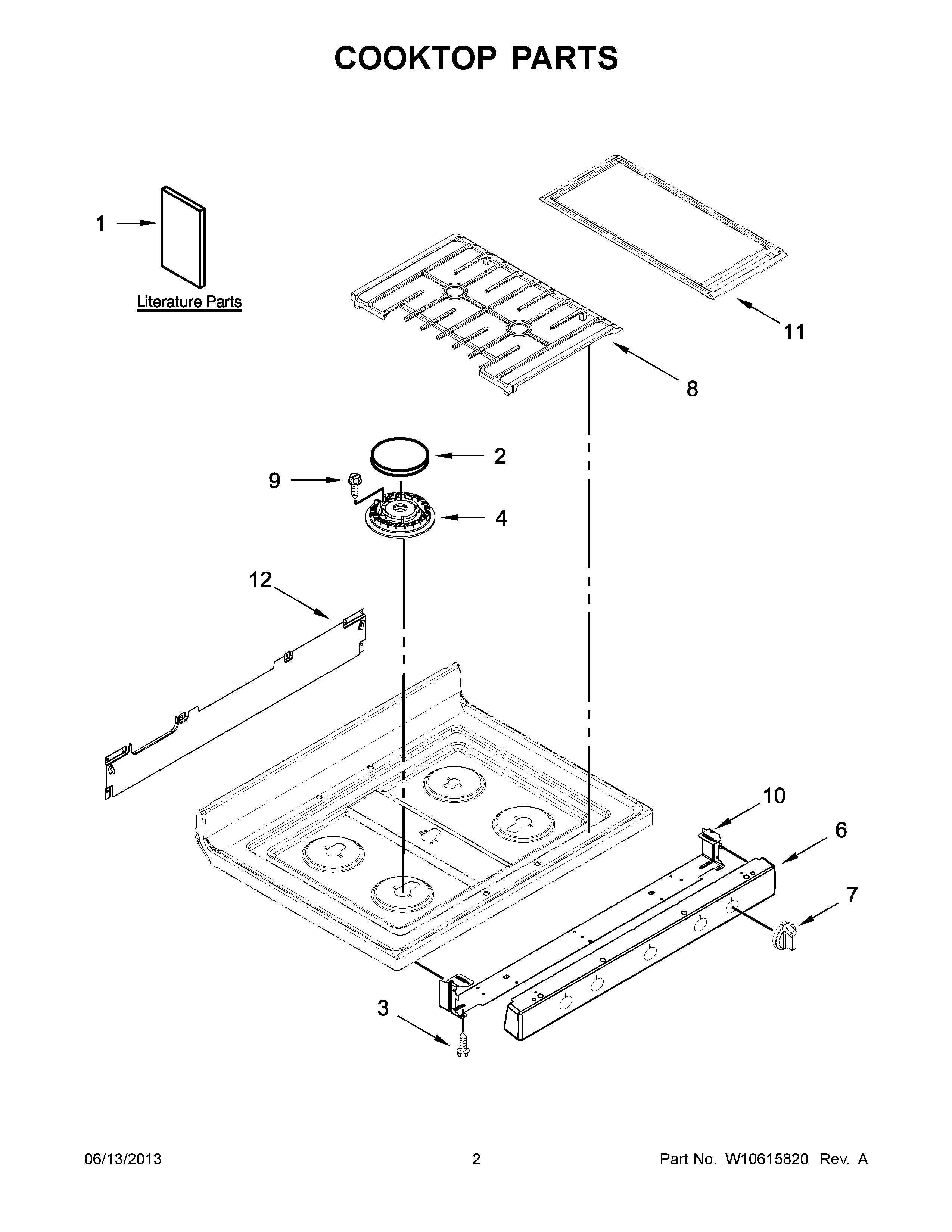

KGRS303BWH1 02 – COOKTOP PARTS

Products

PositionProduct
1BTECH SHEET (ENGLISH)
1WPL W10553363
1EGUIDE, QUICK START
1FQUICK START GUIDE (FRENCH)
1AUSER INSTRUCTIONS
1DSafer Cooking Tips (French)
1CSAFER COOKING TIPS (ENGLISH
2WPW10183374 Whirlpool Burner Cap
3WPW10067840 Whirlpool Screw
4WPW10515455 Whirlpool Burner Head
4AWPW10515454 Whirlpool Burner Head
4BWPW10515453 Whirlpool Burner Head
5W10457322 Whirlpool Cooktop
5AW10457321 Whirlpool Cooktop
6BPANEL, MANIFOLD (STAINLESS)
6PANEL, MANIFOLD (WHITE)
6APANEL, MANIFOLD (BLACK)
7W10524670 Whirlpool Knob Assembly
7BWPW10324398 Whirlpool Knob
7AKNOB, CONTROL (BLACK)
8GRATE, SET (BLACK)
9WP3368921 Whirlpool Screw
10W10534174 Whirlpool Support Bracket
11W10347386A Whirlpool Range Griddle
12W10530070 Whirlpool Support Bracket
