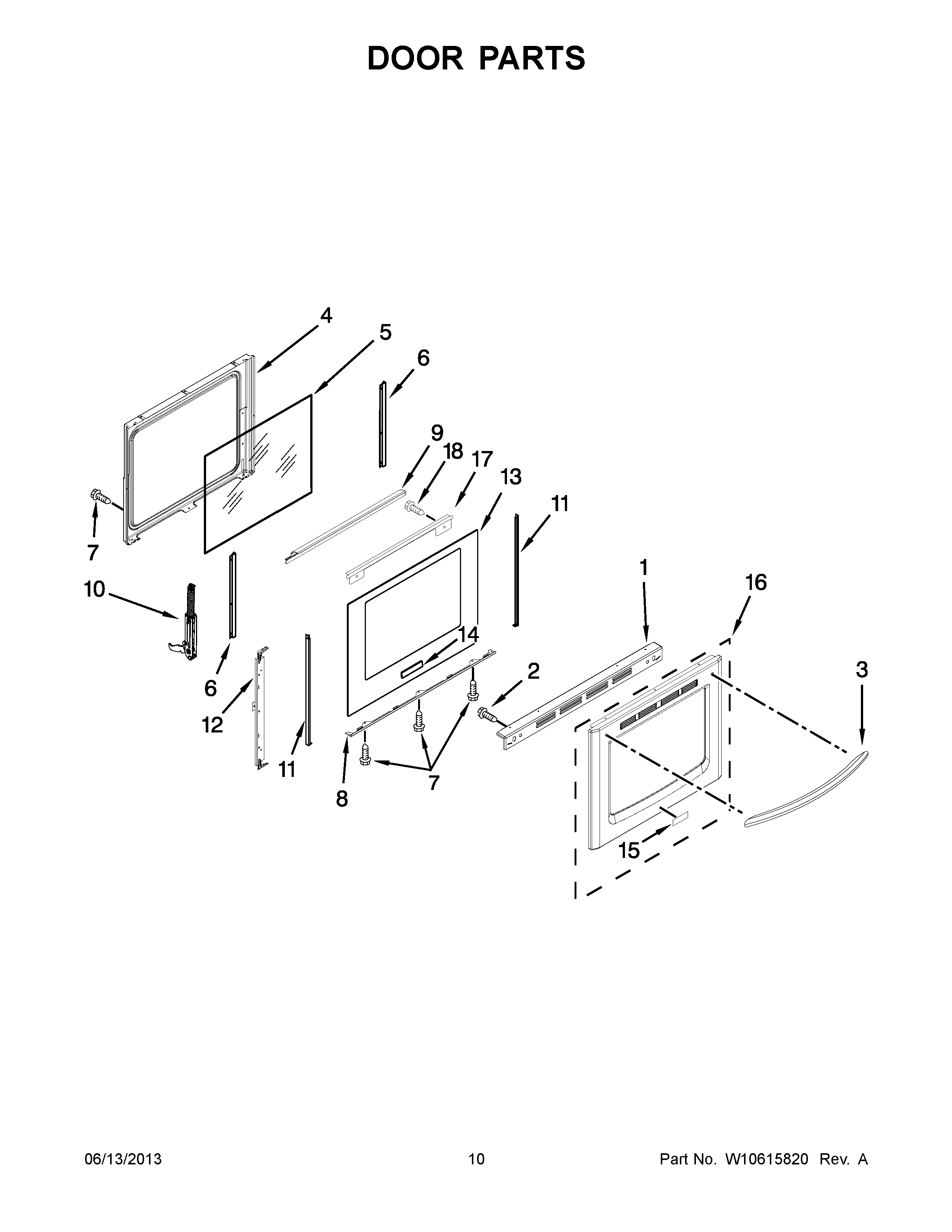

KGRS303BWH1 06 – DOOR PARTS

Products

Position	Product
1	WPW10335331 Whirlpool Trim Vent
1A	W10294855 Whirlpool Vent Trim
2	WPW10317886 Whirlpool Screw
3	W10284917 Whirlpool Door Handle
3B	WPW10289076 Whirlpool Door Handle
3A	W10284916 Whirlpool Door Handle
4	WPW10297318 Whirlpool Door Liner
5	WPW10300487 Whirlpool Door Glass
6	W10137382 Whirlpool Clip
7	WP3196175 Whirlpool Screw
8	WPW10333990 Whirlpool Glass Bracket
8A	W10334031 Whirlpool Glass Bracket
9	W10294853 Whirlpool Mounting Bracket
10	WPW10440013 Whirlpool Door Hinge
11	W10334003 Whirlpool Door Trim
11A	W10334004 Whirlpool Door Trim
12	W11116956 Whirlpool Support Bracket
13B	WPW10495964 Whirlpool Door Panel
13	WPW10495962 Whirlpool Door Panel
13A	WPW10495963 Whirlpool Door Panel
15	WPW10243393 Whirlpool Dishwasher Nameplate
15A	WPW10243392 Whirlpool Dishwasher Nameplate
15B	WPW10243391 Whirlpool Refrigerator Nameplate
16	WPW10490829 Whirlpool Door Liner
17	TRIM, VENT (BLACK)
18	WPW10031790 Whirlpool Screw
