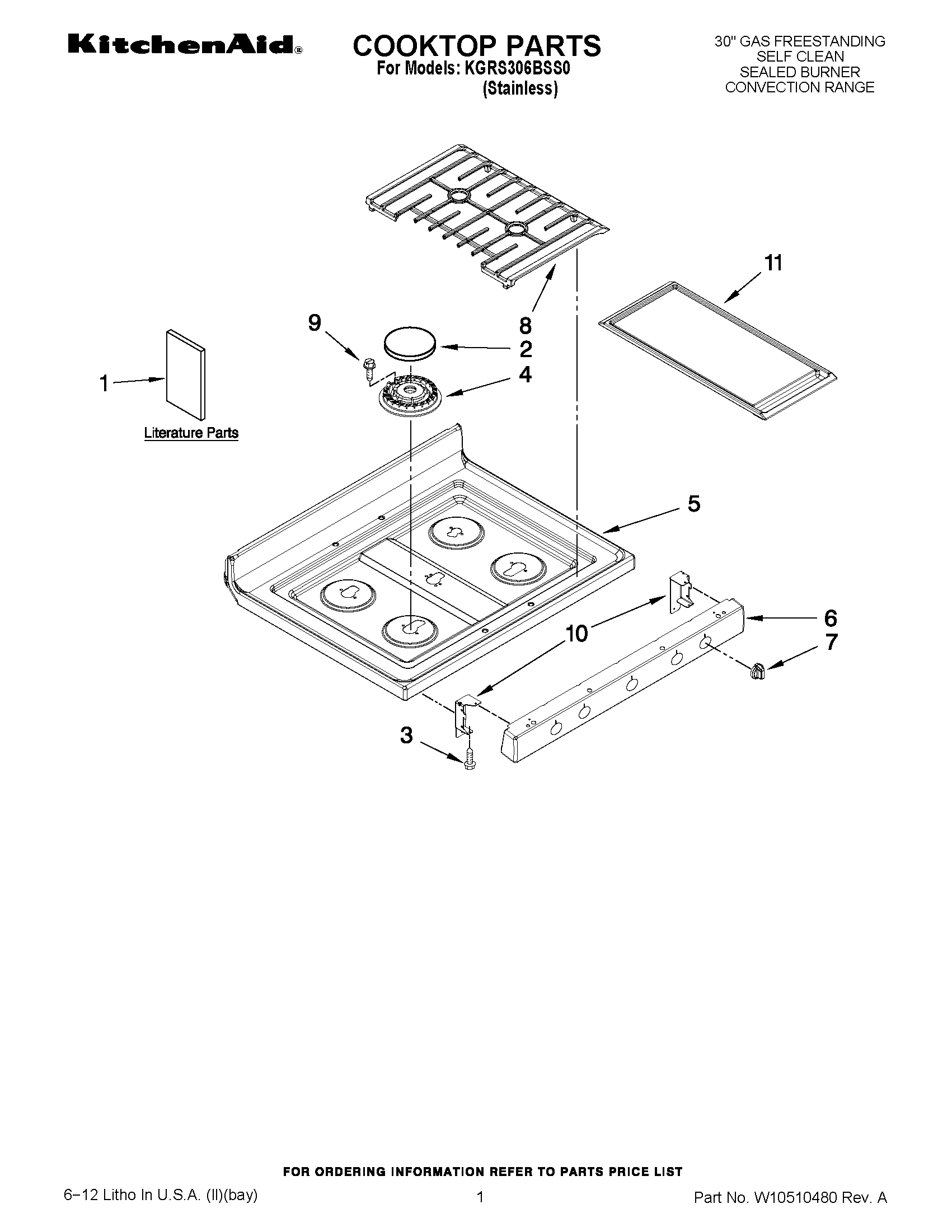

KGRS306BSS0 01 – COOKTOP PARTS

Products

Position	Product
1	QUICK START GUIDE (FRENCH)
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	OWNERS MANUAL
1	WIRING DIAGRAM (ENGLISH)
1	INSTALLATION INSTRUCTIONS
1	WIRING DIAGRAM (FRENCH)
1	GUIDE, QUICK START
2	WPW10183374 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	WPW10406878 Whirlpool Burner Base (16K)
4	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
4	WPW10406243 Whirlpool Burner Head Auxiliary 6K
5	W10457321 Whirlpool Cooktop
6	PANEL, MANIFOLD (STAINLESS)
7	WPW10324398 Whirlpool Knob
8	GRATE, BURNER
9	WP3368921 Whirlpool Screw
10	W10289096 Whirlpool Bracket Support
10	W10106419 Whirlpool Support Bracket
11	W10347386A Whirlpool Range Griddle
