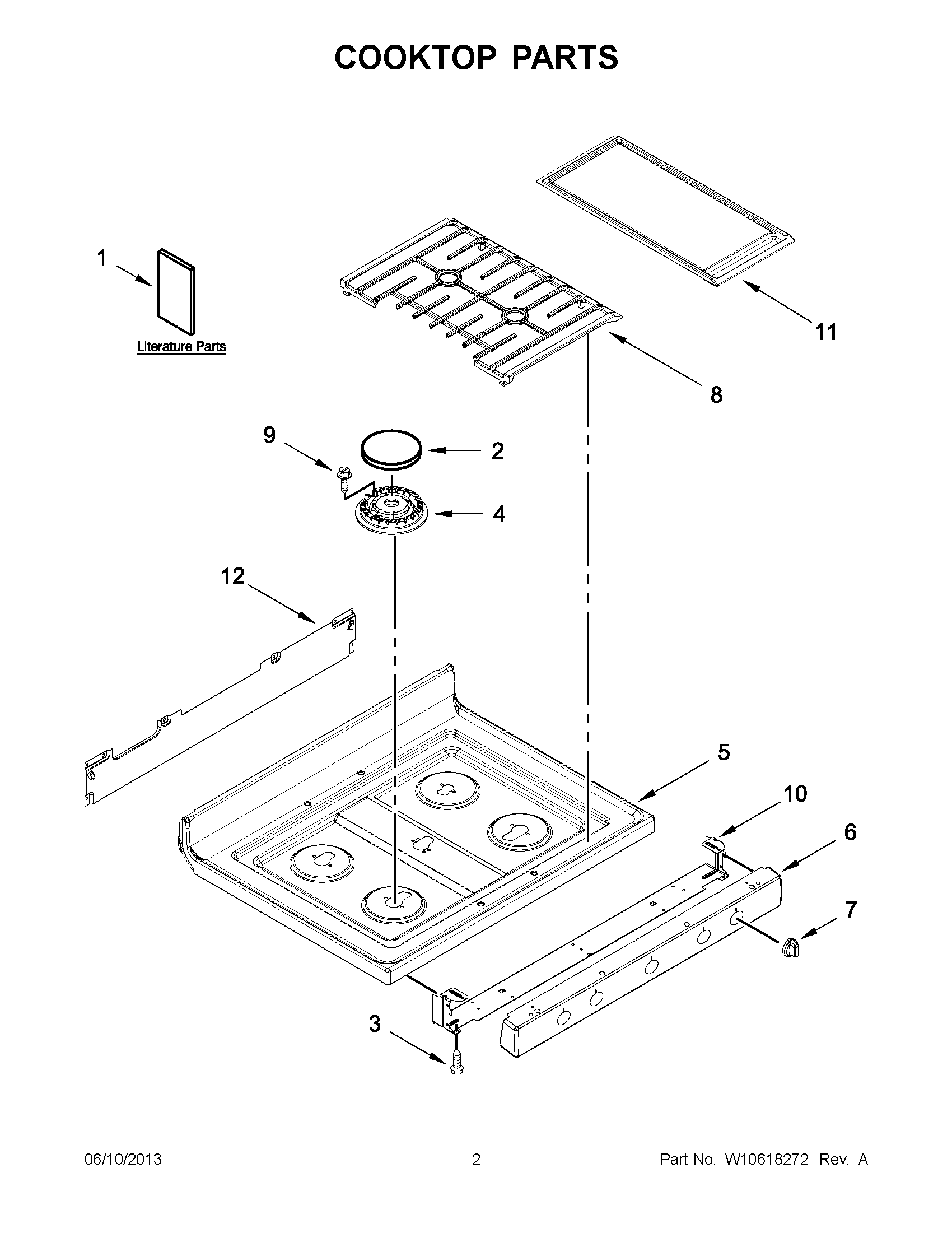

KGRS306BSS1 01 – COOKTOP PARTS

KGRS306BSS1 01 – COOKTOP PARTS

Written by

in

KGRS306BSS1 01 – COOKTOP PARTS

Products

PositionProduct
1QUICK START GUIDE (FRENCH)
1WPL W10553363
1GUIDE, QUICK START
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
2WPW10183374 Whirlpool Burner Cap
3WPW10067840 Whirlpool Screw
4WPW10515454 Whirlpool Burner Head
4WPW10515455 Whirlpool Burner Head
4WPW10515453 Whirlpool Burner Head
5W10457321 Whirlpool Cooktop
6PANEL, MANIFOLD (STAINLESS)
7WPW10324398 Whirlpool Knob
8GRATE, SET (BLACK)
9WP3368921 Whirlpool Screw
10W10534174 Whirlpool Support Bracket
11W10347386A Whirlpool Range Griddle
12W10530070 Whirlpool Support Bracket
