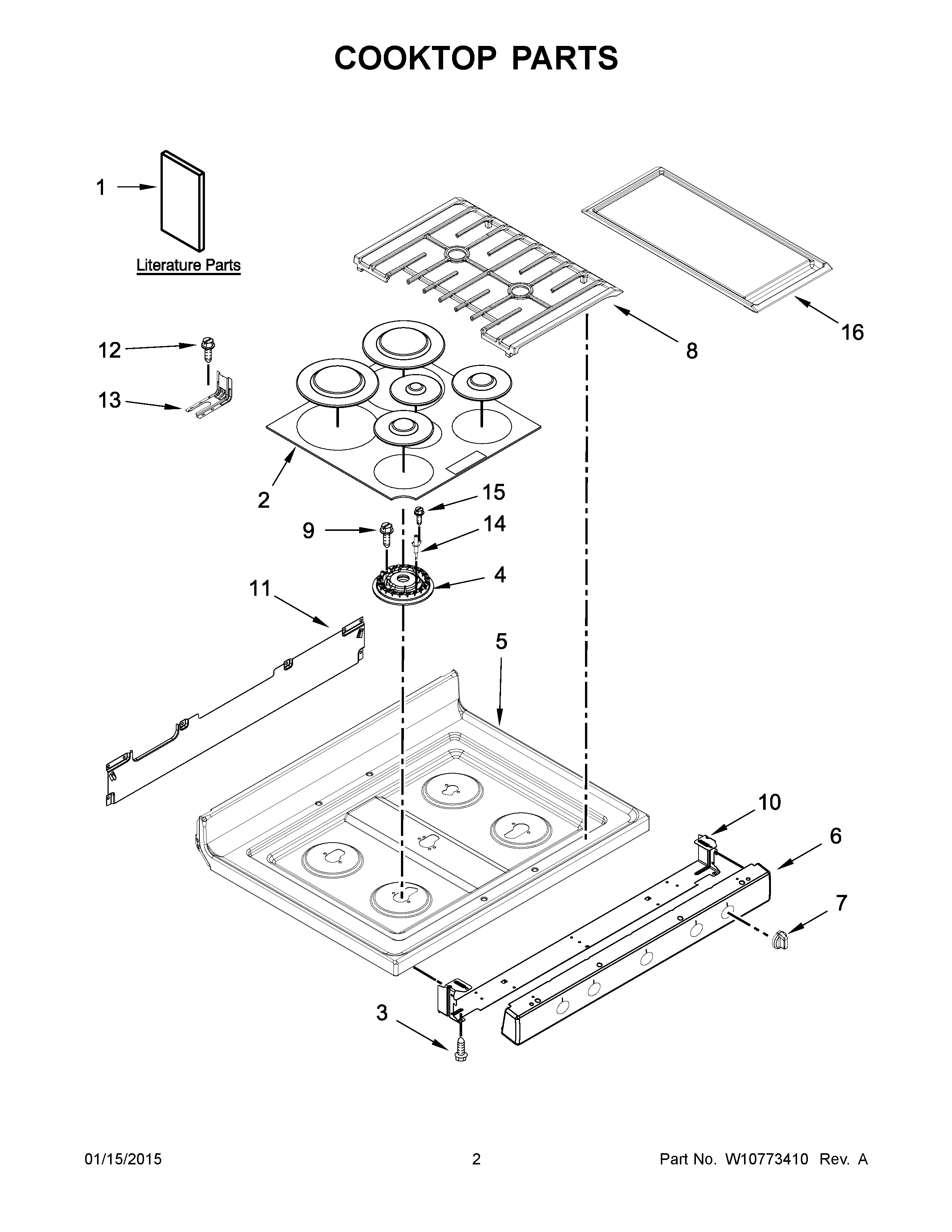

KGRS306BSS2 02 – COOKTOP PARTS

Products

Position	Product
NI	W10738993 Whirlpool Wire Harness
NI	W10519920 Whirlpool Wire Harness
NI	WPW10701462 Whirlpool Wire Harness
NI	3196896 Whirlpool Clip
NI	3196696 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	HARNESS, MAIN
NI	W10324946 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1	WPL W10553363
1F	QUICK START GUIDE (FRENCH)
1E	GUIDE, QUICK START
1C	SAFER COOKING TIPS (ENGLISH
1A	USER INSTRUCTIONS
1D	Safer Cooking Tips (French)
1B	TECH SHEET (ENGLISH)
2	WPW10183374 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4A	WPW10515454 Whirlpool Burner Head
4	WPW10515455 Whirlpool Burner Head
4B	WPW10515453 Whirlpool Burner Head
5	W10457321 Whirlpool Cooktop
6	PANEL, MANIFOLD (STAINLESS)
7	WPW10324398 Whirlpool Knob
8	GRATE, SET (BLACK)
9	WP3368921 Whirlpool Screw
10	W10534174 Whirlpool Support Bracket
11	W10530070 Whirlpool Support Bracket
12	SCREW, ANTI-TIP KIT
13	W11447673 Whirlpool Range Tip Anchor
14	WPW10515459 Whirlpool Surface Igniter
15	WP8273062 Whirlpool Screw
16	W10347386A Whirlpool Range Griddle
