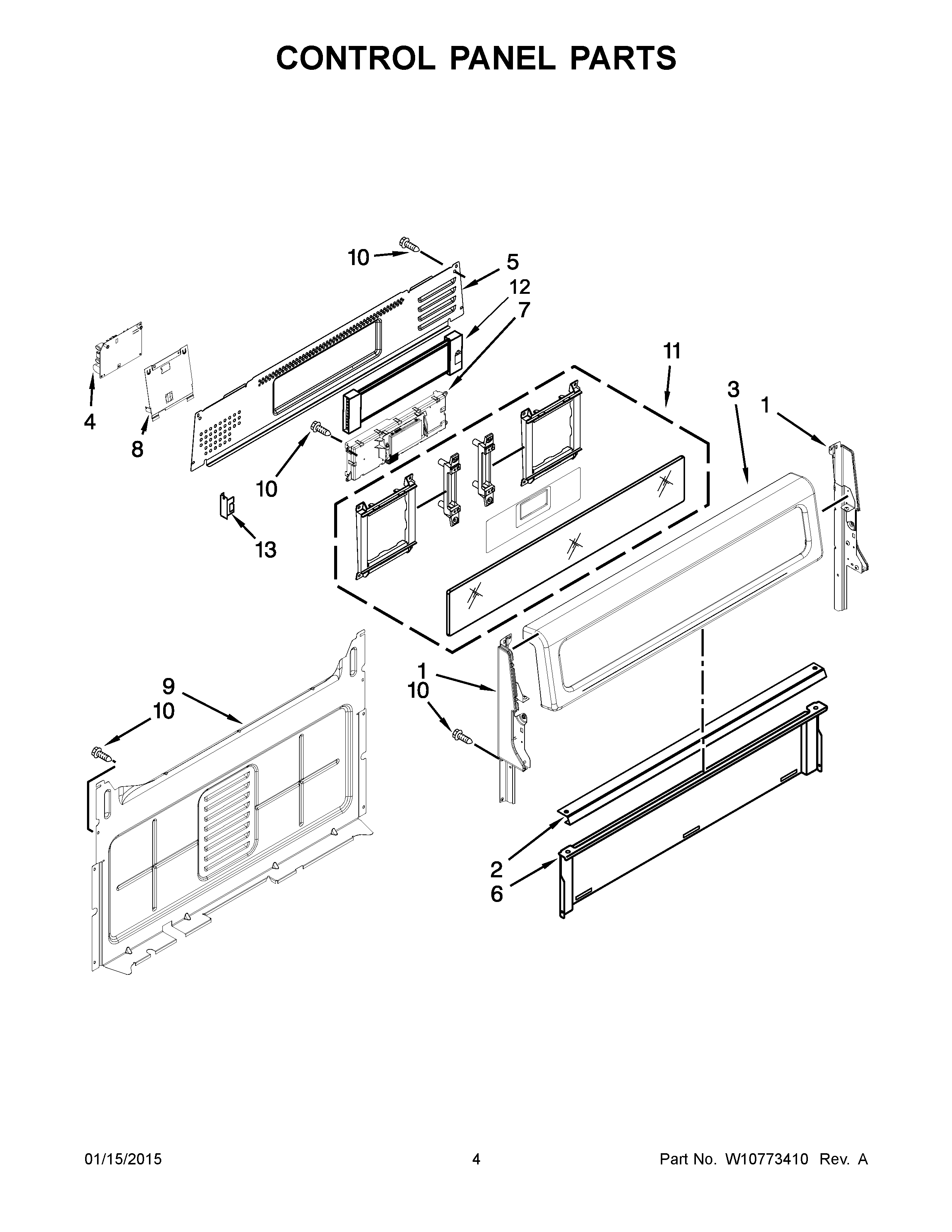

KGRS306BSS2 03 – CONTROL PANEL PARTS

KGRS306BSS2 03 – CONTROL PANEL PARTS

Written by

in

KGRS306BSS2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W10516123 Whirlpool Mounting Bracket
3CONSOLE (STAINLESS)
4WPW10511278 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7WPW10686476-includeCORE Whirlpool WPW10686476 Refrigerator Electronic Control Board + Core
8W10516577 Whirlpool Bracket Mounting
9W10184251 Whirlpool Rear Cover
10WP3196557 Whirlpool Screw
11WPW10726781 Whirlpool Membrane Switch
12WPW10475149 Whirlpool Spark Module
