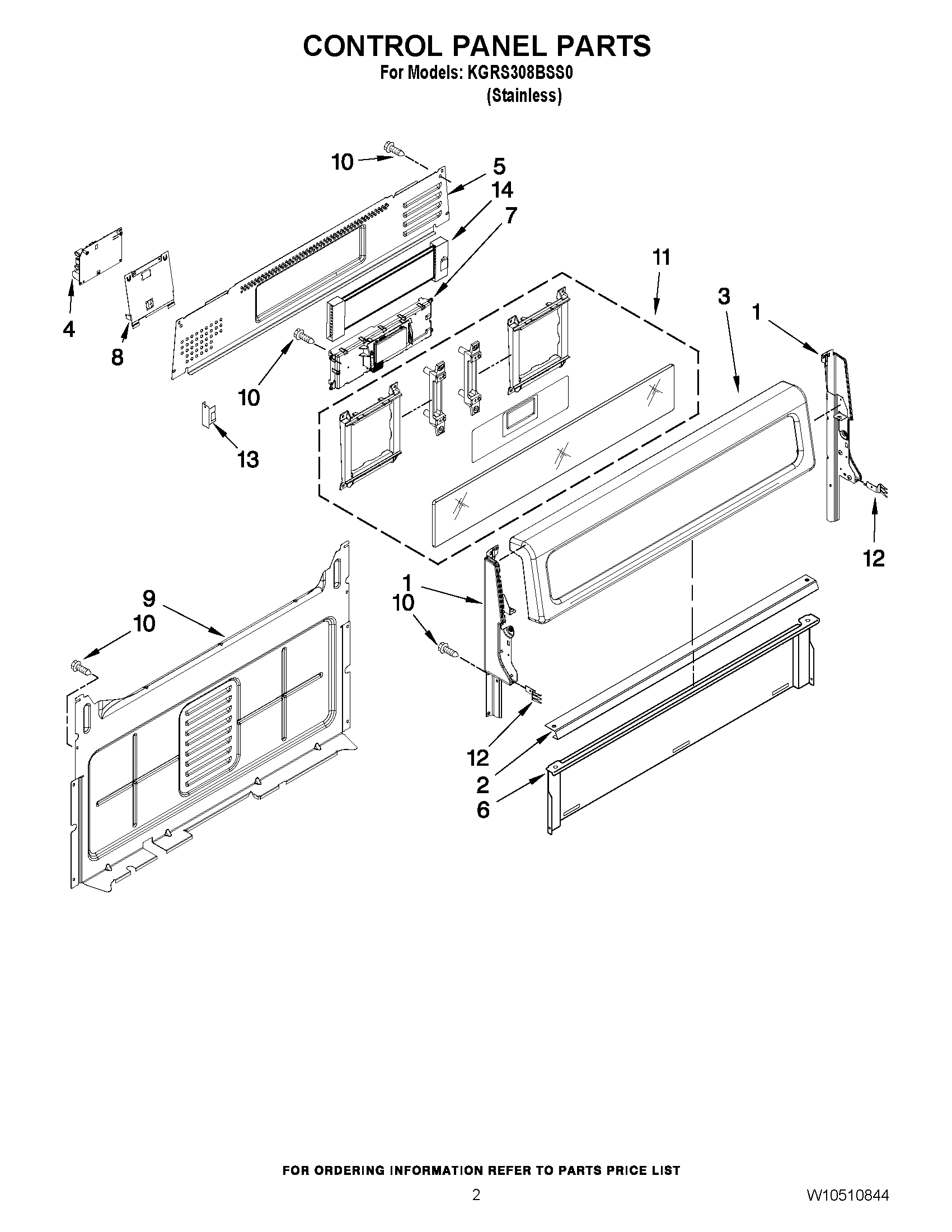

KGRS308BSS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11404310 Whirlpool Panel Endcap
1	W10409003 Whirlpool Endcap Panel
2	Brkt-Mntg, Console
3	CONSOLE (STAINLESS)
4	WPW10331686 Whirlpool Oven Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	WPW10686477 Whirlpool Electronic Control Board + Core
8	W10333917 Whirlpool Bracket Mounting
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	W11431918 Whirlpool Membrane Switch
12	8523412 Whirlpool Mounting Bracket
13	MODULE, SPARK
14	WPW10318787 Whirlpool Wire Harness
