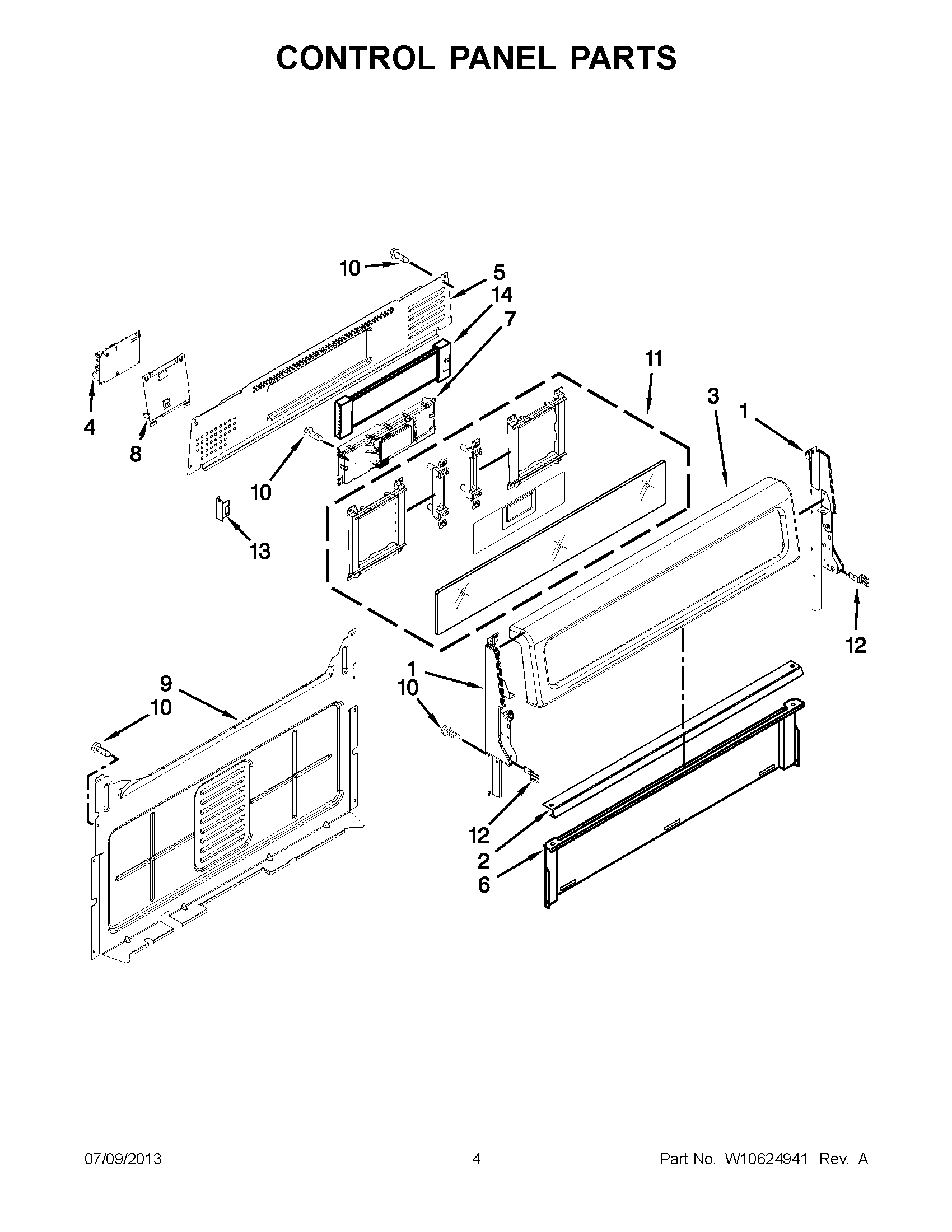

KGRS308BSS1 02 – CONTROL PANEL PARTS

KGRS308BSS1 02 – CONTROL PANEL PARTS

Written by

in

KGRS308BSS1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11404310 Whirlpool Panel Endcap
1W10409003 Whirlpool Endcap Panel
2W10516123 Whirlpool Mounting Bracket
3CONSOLE (STAINLESS)
4WPW10511278 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7WPW10686477 Whirlpool Electronic Control Board + Core
8W10516577 Whirlpool Bracket Mounting
9W10184251 Whirlpool Rear Cover
10SCREW
11W11431918 Whirlpool Membrane Switch
128523412 Whirlpool Mounting Bracket
13WPW10475149 Whirlpool Spark Module
14WPW10318787 Whirlpool Wire Harness
