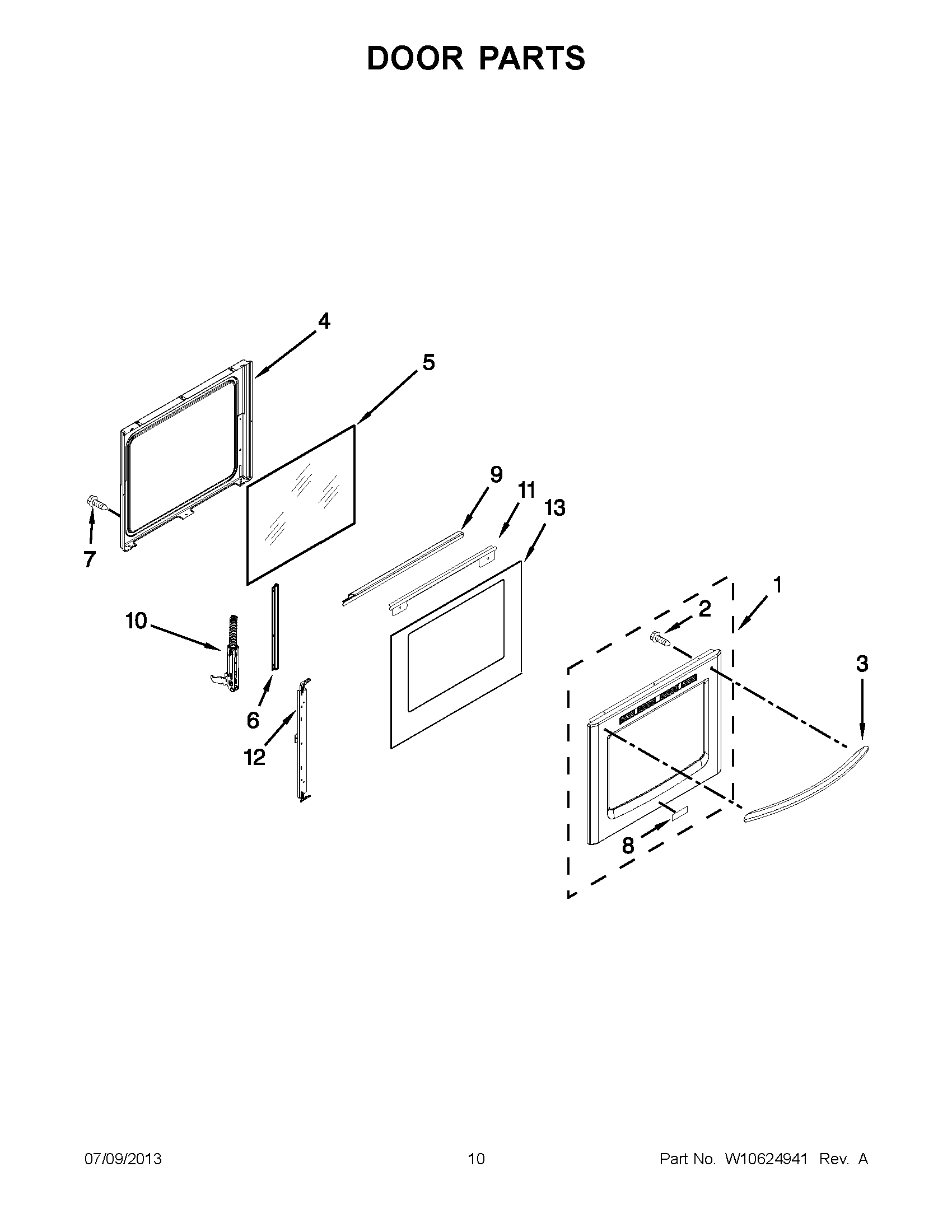

KGRS308BSS1 05 – DOOR PARTS

KGRS308BSS1 05 – DOOR PARTS

Written by

in

KGRS308BSS1 05 – DOOR PARTS

Products

PositionProduct
1WPW10490829 Whirlpool Door Liner
2WPW10317886 Whirlpool Screw
3WPW10289076 Whirlpool Door Handle
4WPW10297318 Whirlpool Door Liner
5WPW10300487 Whirlpool Door Glass
6W10294852 Whirlpool Mounting Bracket
7WP3196175 Whirlpool Screw
8WPW10243391 Whirlpool Refrigerator Nameplate
9W10294853 Whirlpool Mounting Bracket
10WPW10388635 Whirlpool Door Hinge
11TRIM, VENT (BLACK)
12W11116956 Whirlpool Support Bracket
13WPW10495964 Whirlpool Door Panel
