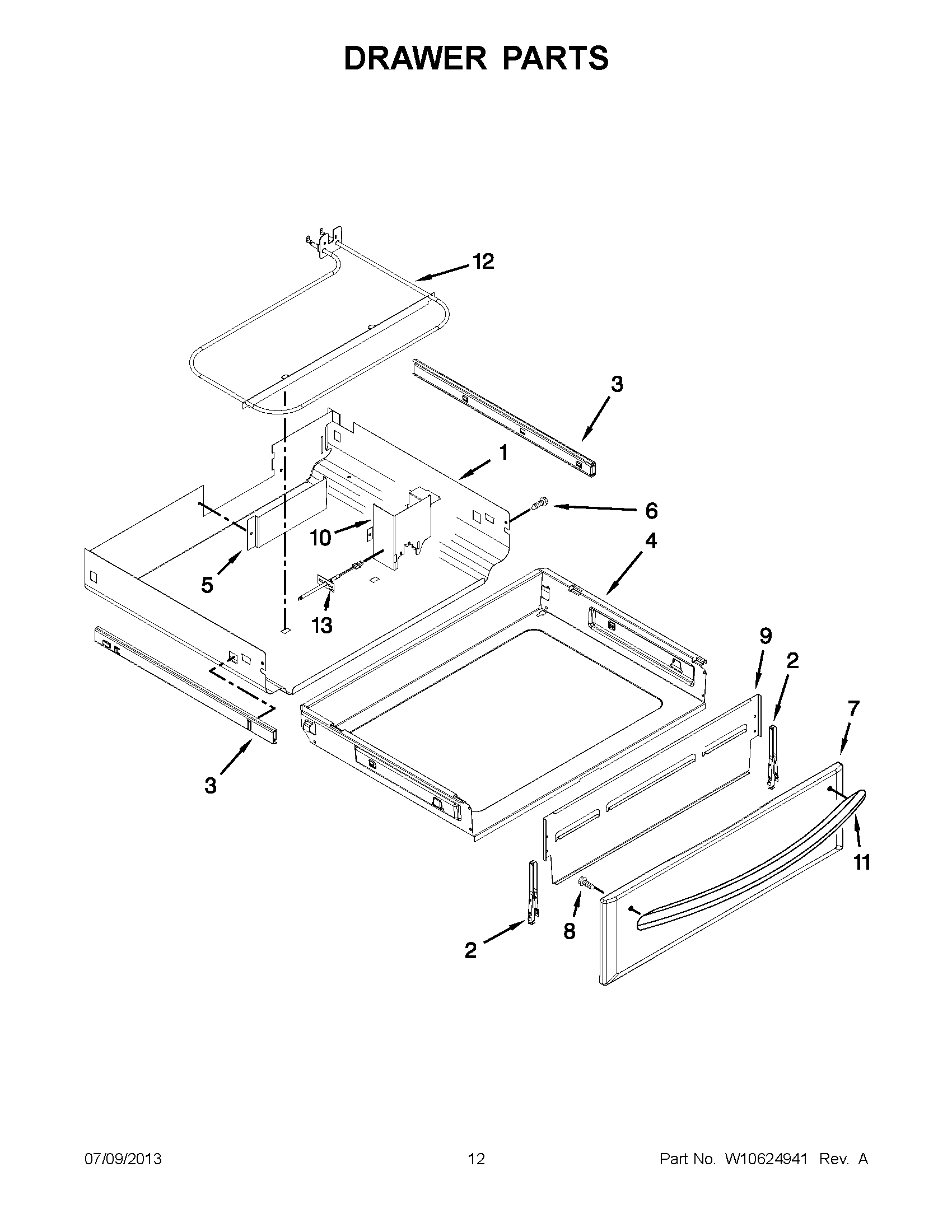

KGRS308BSS1 06 – DRAWER PARTS

Products

PositionProduct
1W10634260 Whirlpool Utility Drawer
2WPW10318026 Whirlpool Mounting Bracket
3WPW10441804 Whirlpool Drawer Slide
3WPW10441805 Whirlpool Slide Drawer
4W10813962 Whirlpool Utility Drawer
5W10325438 Whirlpool Cover Panel
6WP3196175 Whirlpool Screw
7W10859916 Whirlpool Drawer Panel
8WP3400882 Whirlpool Screw
9PANEL, INNER
10W10634259 Whirlpool Wire Cover
11WPW10289076 Whirlpool Door Handle
12WPW10323181 Whirlpool Surface Element
13WPW10131827 Whirlpool Sensor
