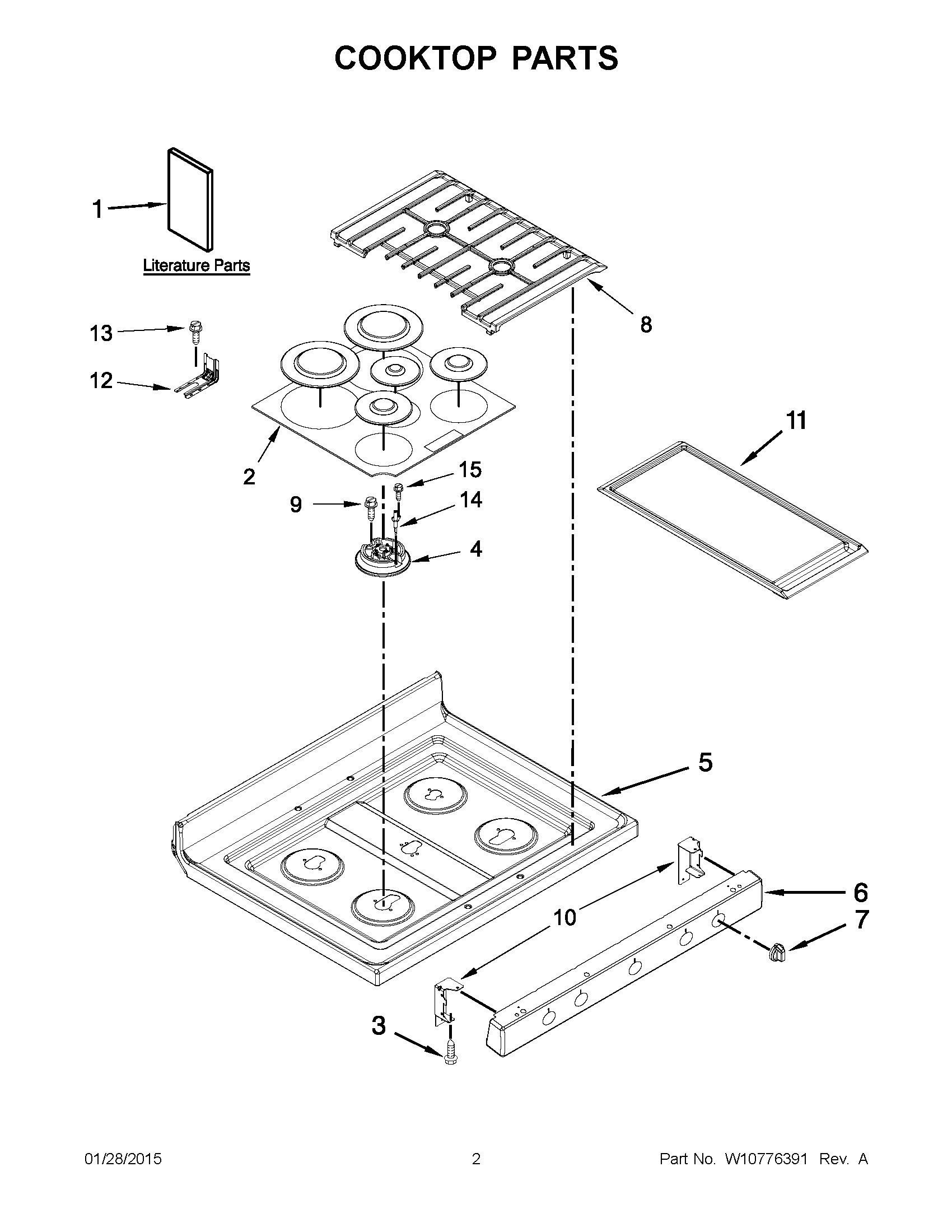

KGRS308BSS2 02 – COOKTOP PARTS

Products

Position	Product
NI	W10334923 Whirlpool Clip
NI	WPW10701462 Whirlpool Wire Harness
NI	W10519920 Whirlpool Wire Harness
NI	3196896 Whirlpool Clip
NI	W10738993 Whirlpool Wire Harness
NI	3196696 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	HARNESS, MAIN
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10324946 Whirlpool Wire Harness
1E	GUIDE, QUICK START
1B	TECH SHEET (ENGLISH)
1A	USER INSTRUCTIONS
1	WPL W10553363
1D	Safer Cooking Tips (French)
1C	SAFER COOKING TIPS (ENGLISH
2	WPW10183374 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	WPW10515455 Whirlpool Burner Head
4A	WPW10515454 Whirlpool Burner Head
4B	WPW10515453 Whirlpool Burner Head
5	W11241183 Whirlpool Cooktop
6	PANEL, MANIFOLD (STAINLESS)
7	WPW10324398 Whirlpool Knob
8	GRATE, SET (BLACK)
9	WP3368921 Whirlpool Screw
10	W10289096 Whirlpool Bracket Support
10A	W10106419 Whirlpool Support Bracket
11	W10347386A Whirlpool Range Griddle
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	WPW10515459 Whirlpool Surface Igniter
15	WP8273062 Whirlpool Screw
