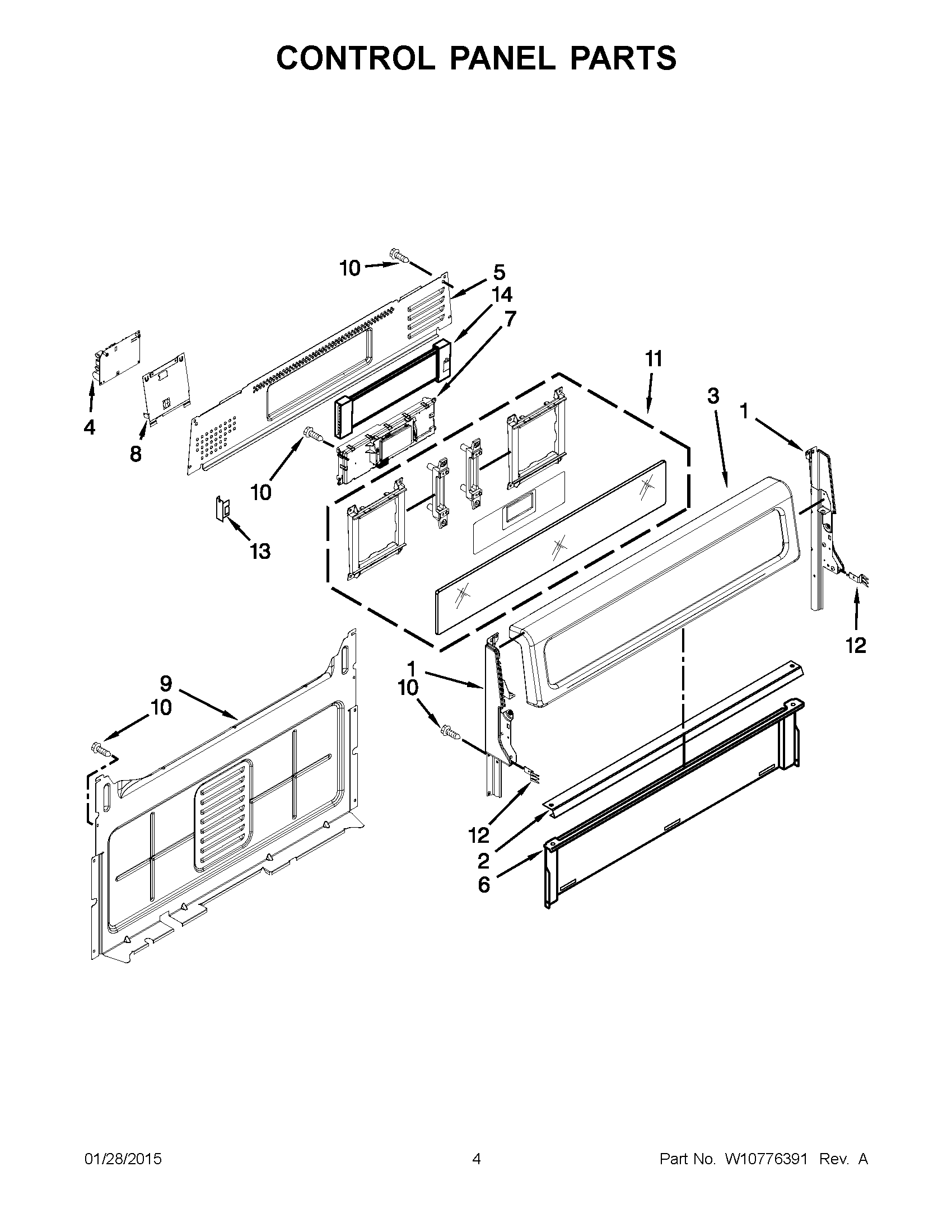

KGRS308BSS2 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11404310 Whirlpool Panel Endcap
1A	W10409003 Whirlpool Endcap Panel
2	W10516123 Whirlpool Mounting Bracket
3	CONSOLE (STAINLESS)
4	WPW10511278 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	WPW10686477 Whirlpool Electronic Control Board + Core
8	W10516577 Whirlpool Bracket Mounting
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	W11431918 Whirlpool Membrane Switch
12	8523412 Whirlpool Mounting Bracket
13	WPW10475149 Whirlpool Spark Module
14	WPW10318787 Whirlpool Wire Harness
