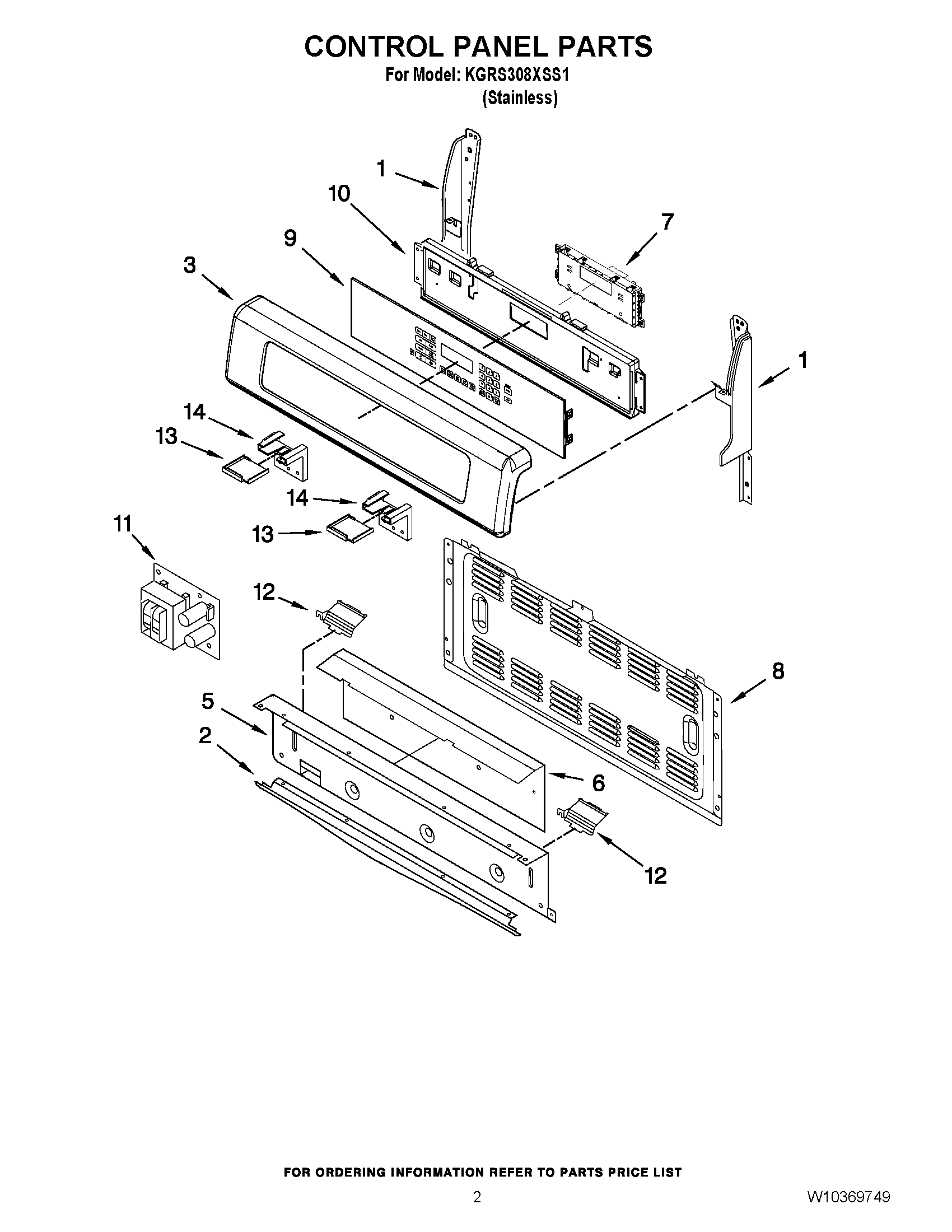

KGRS308XSS1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	END CAP, RIGHT (BLACK)
1	END CAP, LEFT (BLACK)
2	HEAT SHIELD,VISOR (BLACK)
3	PANEL, BACKGUARD (STAINLESS)
5	HEAT SHIELD
6	REAR COVER
7	CONTROL
8	COVER, REAR WIRE
9	WPW10361694 Whirlpool Control Panel
10	SUPPORT, CONTROL
11	WPW10355192 Whirlpool Electronic Control Board
12	BRACKET, MOUNT
13	BRACKET, MOUNT
14	BRACKET, SUPPORT
