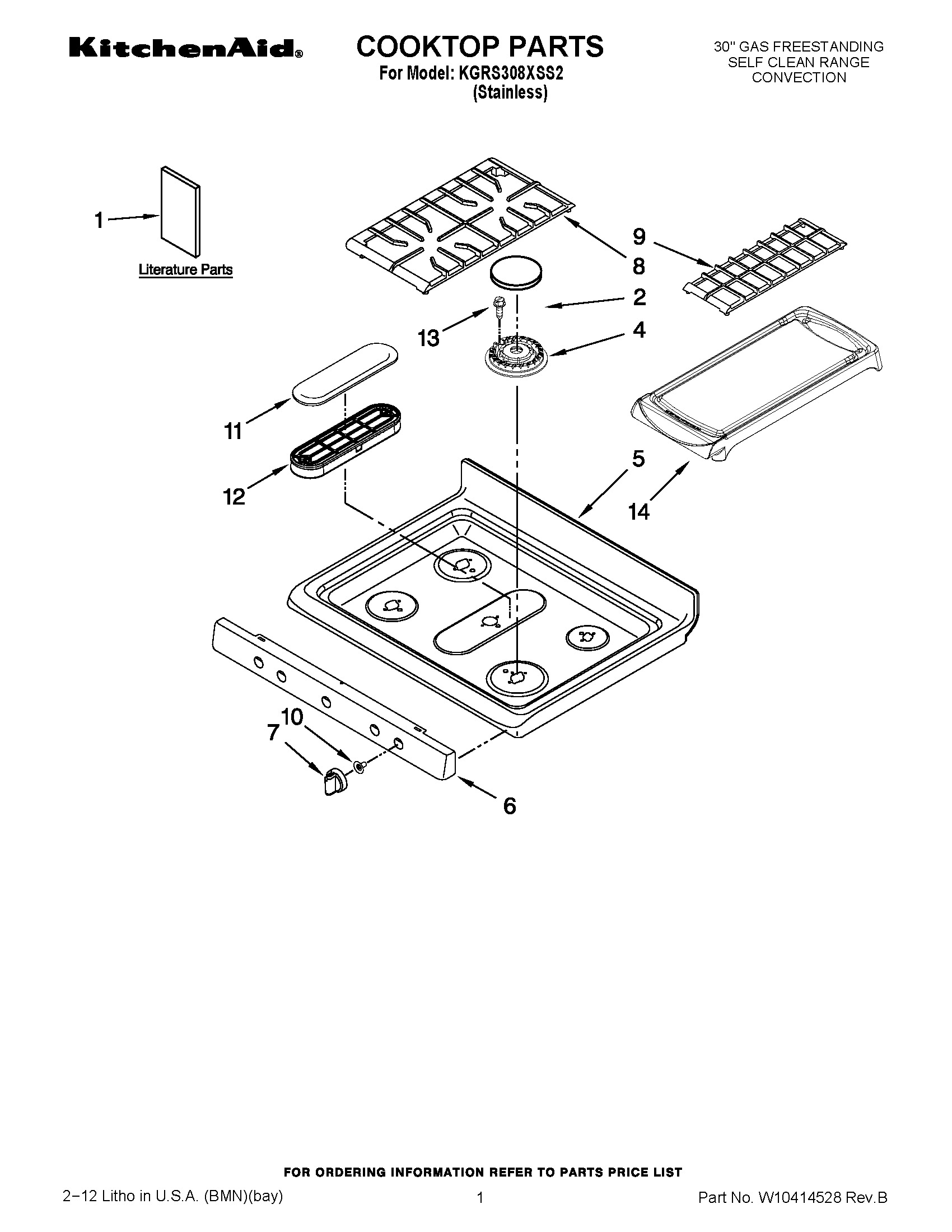

KGRS308XSS2 01 – COOKTOP PARTS

KGRS308XSS2 01 – COOKTOP PARTS

Written by

in

KGRS308XSS2 01 – COOKTOP PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1TECH SHEET
1OWNERS MANUAL
2CAP, BURNER (14K(LR)
2CAP, BURNER (5K(RR)
2WPW10347764 Whirlpool Burner Cap
2WPW10347750 Whirlpool Burner Cap
4W10345845 Whirlpool Burner Head
4BURNER (5K (RR)
4BURNER (9.5K(LF & CENTER)
4W10356893 Whirlpool Burner Head
5COOKTOP (STAINLESS)
6PANEL, MANIFOLD (STAINLESS)
7KNOB, CONTROL S.STEEL (1)
7KNOB, CONTROL S.STEEL (4)
8GRATE, BURNER BLACK, SIDE
9GRATE, BURNER BLACK, CENTER
10SHIELD, GAS KNOB
11CAP, BURNER BLACK-OVAL
12BURNER, OVAL
13SCREW, BURNER HEAD
14GRIDDLE
