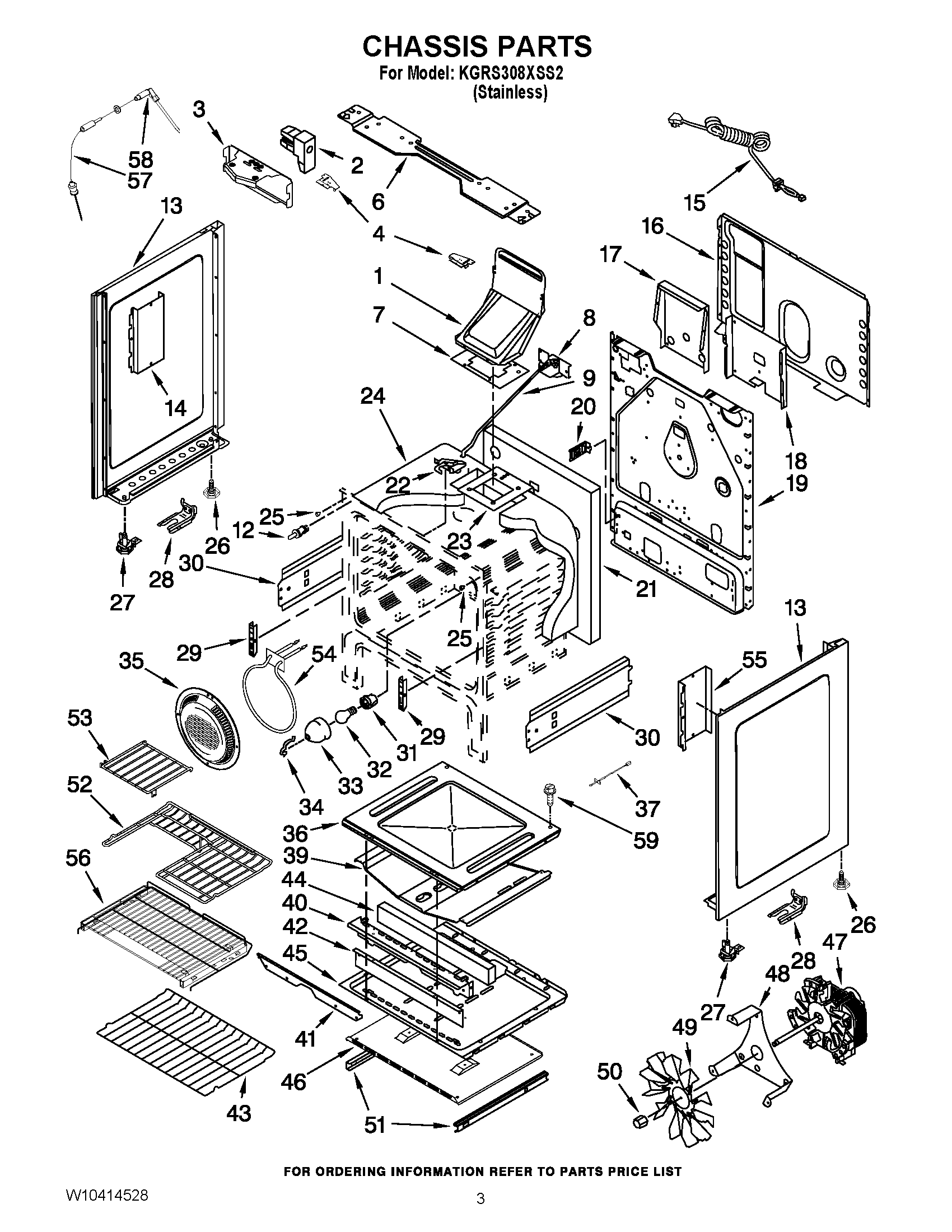

KGRS308XSS2 03 – CHASSIS PARTSadmin2025-04-26T11:32:49+00:00KGRS308XSS2 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| 1 | OVEN FLUE |
| 2 | CLIP-OVEN BODY |
| 3 | BRACKET-PANEL |
| 4 | BRACKET, LOCKDOWN (LH) |
| 4 | BRACKET, LOCKDOWN (RH) |
| 6 | BRACKET, SUPPORT ELEMENT |
| 7 | GASKET, FLUE |
| 8 | WPW10350466 Whirlpool Latch Motor |
| 9 | ROD-LATCH |
| 12 | SWITCH, OVEN LIGHT |
| 13 | PANEL, SIDE (BLACK-RH) |
| 13 | PANEL, SIDE (BLACK-LH) |
| 14 | SIDE SHIELD |
| 15 | CORD, POWER |
| 16 | SHIELD, REAR WALL |
| 17 | SHIELD, FLUE |
| 18 | SHIELD, HEAT |
| 19 | COVER, REAR MAIN |
| 20 | BRACKET, HARNESS |
| 21 | INSULATION, MAIN FRONT |
| 22 | DOOR LATCH |
| 23 | BRACE, OVEN TOP |
| 24 | INSULATION, OVEN WRAPPER |
| 25 | SPACER, OVEN DOOR |
| 26 | LEG, LEVELING (REAR PLASTIC) |
| 27 | LEG, LEVELING (FRONT METAL) |
| 28 | W10544996 Whirlpool Anchor Tip |
| 29 | BRACKET, HINGE OVEN DOOR |
| 30 | SHIELD, SIDE (LH) |
| 30 | SHIELD, SIDE (RH) |
| 31 | SOCKET, LIGHT |
| 32 | RANGE ONLY 40W 120V APPL BULB |
| 33 | LENS-LIGHT |
| 34 | RETAINER, OVEN LIGHT LENS |
| 35 | COVER, FAN |
| 36 | BOTTOM, OVEN |
| 37 | OVEN SENSOR |
| 39 | BAFFLE, BAKE BURNER |
| 40 | SHIELD, FRONT BURNER |
| 41 | BRACKET, AIR DAM |
| 42 | SHIELD-MAIN FRONT |
| 43 | OVEN RACK |
| 44 | INSULATION, MAIN FRONT |
| 45 | SHIELD, WOOL LOWER |
| 46 | SHIELD, HEAT LOWER |
| 47 | WPW10347449 Whirlpool Fan Motor |
| 48 | BRACKET, MOTOR |
| 49 | WPW10355276 Whirlpool Appliance Fan Blade |
| 50 | NUT, FAN BLADE |
| 51 | GLIDE-OUTER |
| 52 | HALF RACK |
| 53 | HALF RACK-INSERT |
| 54 | ELEMENT, CONVECT 350W |
| 55 | WPL W10356912 |
| 56 | RACK, SLIDING |
| 57 | PROBE, MEAT |
| 58 | RECEPTAC |
| 59 | SCREW, OVEN BOTTOM |
