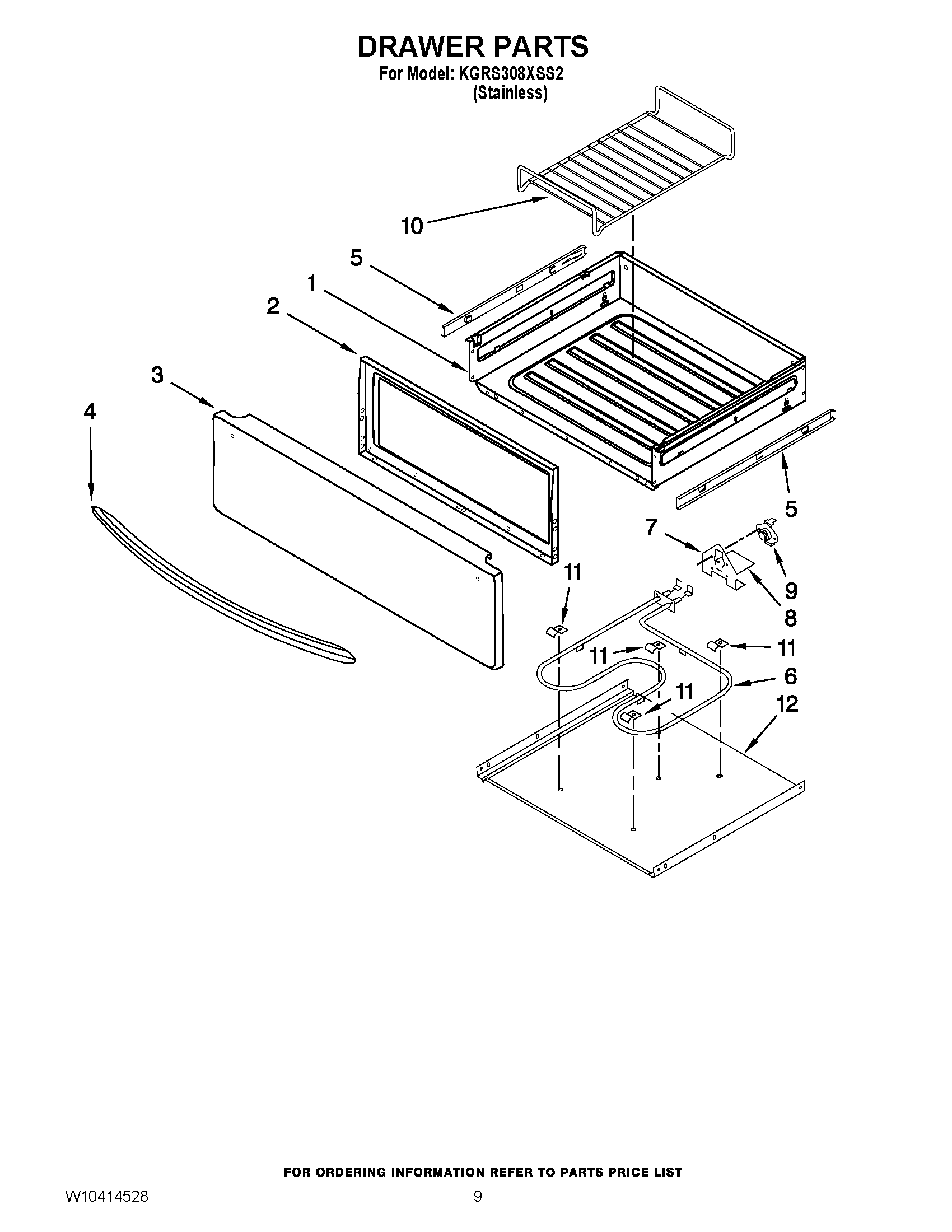

KGRS308XSS2 06 – DRAWER PARTSadmin2025-04-26T11:34:22+00:00KGRS308XSS2 06 – DRAWER PARTS
Products
| Position | Product |
|---|
| 1 | DRAWER, UTILITY |
| 2 | LINER, DRAWER FRONT FRAME |
| 3 | PANEL, DRAWER, OUTER (STAINLESS) |
| 4 | HANDLE, DOOR (STAINLESS) |
| 5 | GLIDE, DRAWER (LH) |
| 5 | GLIDE, DRAWER (RH) |
| 6 | ELEMENT-BAKE WARMING DRAWER |
| 7 | BRACKET, ELEMENT |
| 8 | SHIELD-TERMINAL WARMING DRAWER |
| 9 | THERMO DISC |
| 10 | RACK, WARMING DRAWER |
| 11 | CLIP, HOLD DOWN |
| 12 | BASE, WARMING DRAWER |
