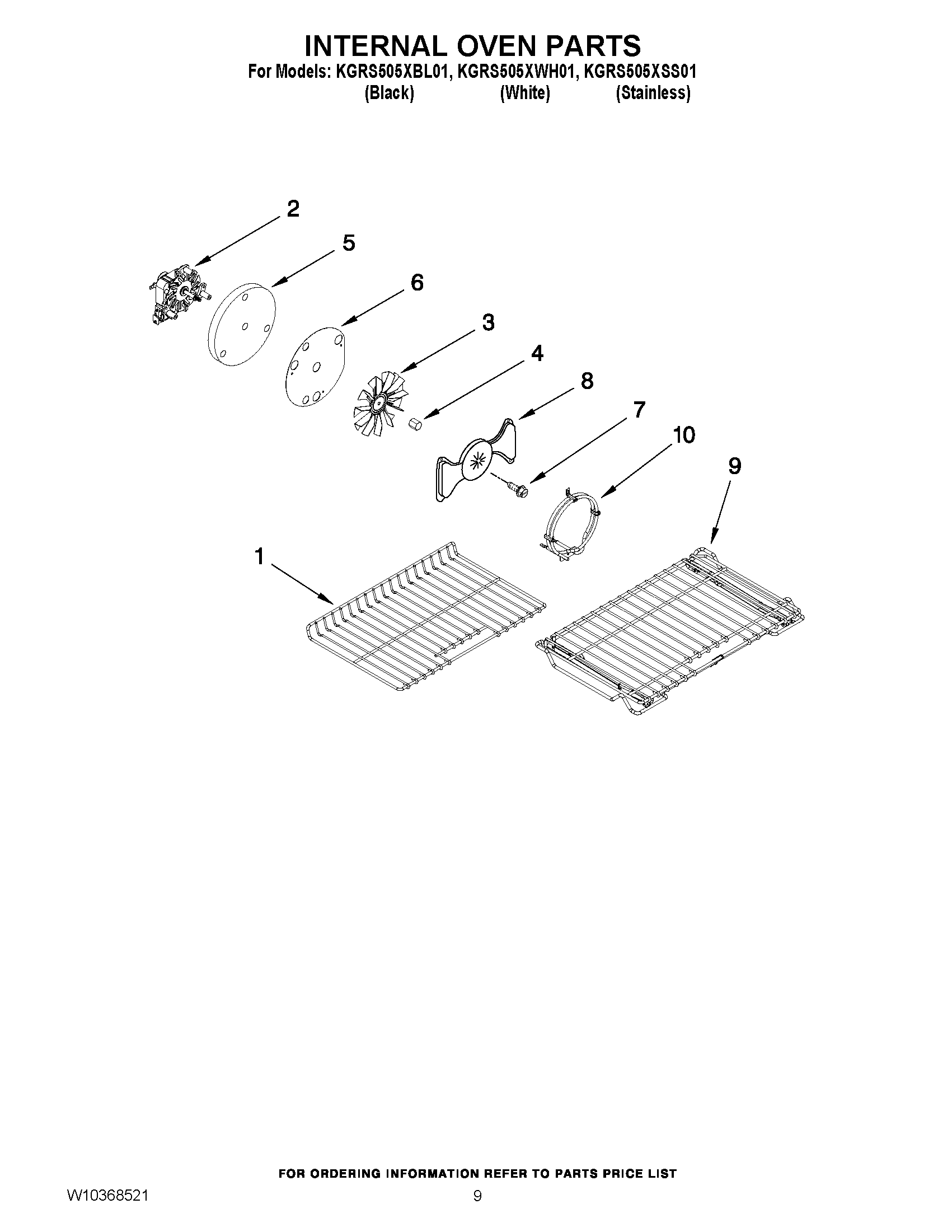

KGRS505XBL01 07 – INTERNAL OVEN PARTS

KGRS505XBL01 07 – INTERNAL OVEN PARTS

Written by

in

KGRS505XBL01 07 – INTERNAL OVEN PARTS

Products

PositionProduct
1W11550107 Whirlpool Oven Rack
2W10794440 Whirlpool Fan Motor
3W10758272 Whirlpool Convection Fan
4WPW10116349 Whirlpool Nut
5W10274268 Whirlpool Insulation
6W10339476 Whirlpool Bracket Mounting
7WP4449154 Whirlpool Screw
8W10322230 Whirlpool Heat Shield
9WPW10570870 Whirlpool Oven Rack
10W10249980 Whirlpool Element
