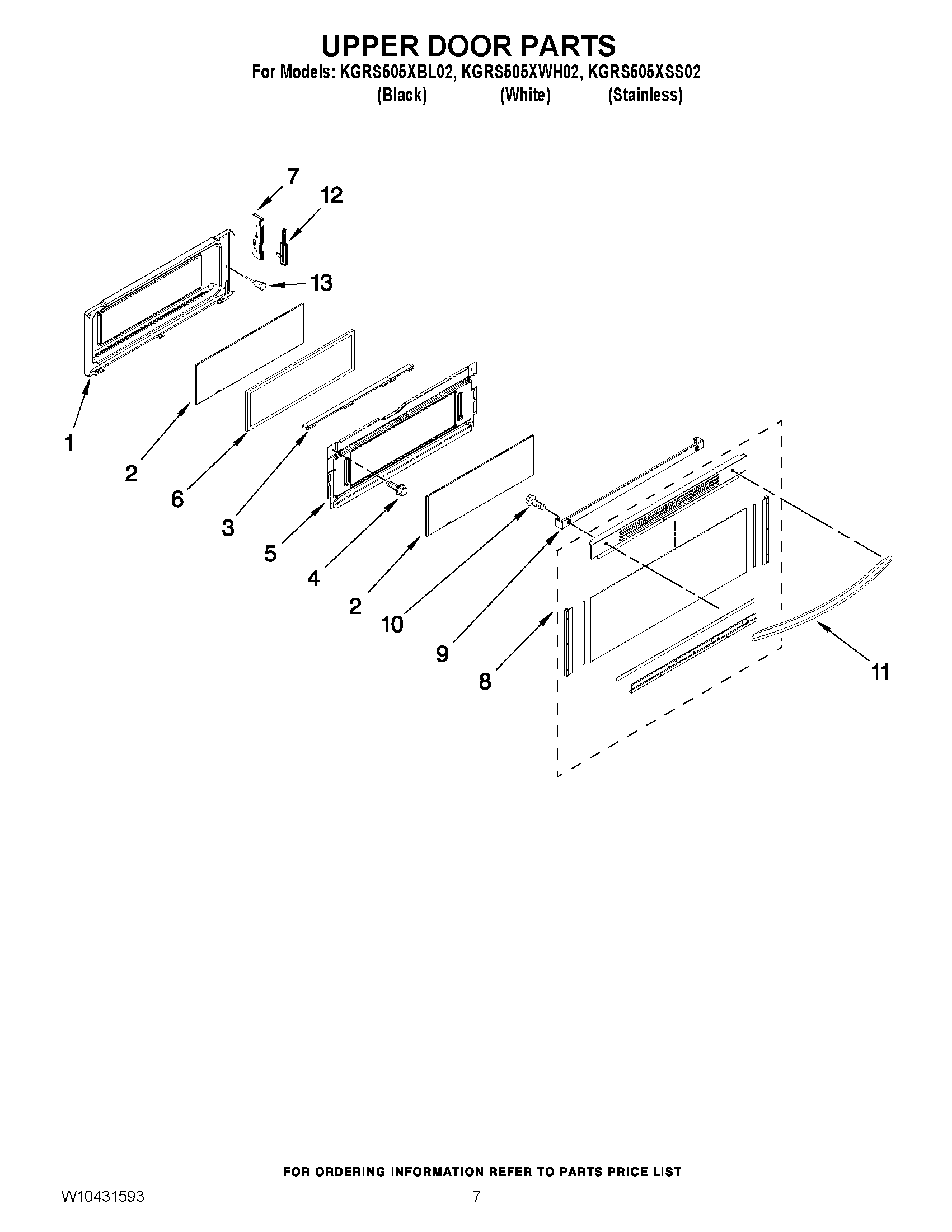

KGRS505XBL02 05 – UPPER DOOR PARTS

Products

Position	Product
1	LINING, DOOR
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	WPW10292297 Whirlpool Screw
5	RETAINER, INSUL.
6	WPW10321271 Whirlpool Insulation Assembly
7	W10277006 Whirlpool Hinge Receiver
8	ASSEMBLY, GLASS DOOR (BLACK)
8	ASSEMBLY, GLASS DOOR (WHITE)
8	ASSEMBLY, GLASS DOOR (INCLUDES DOOR PANEL)
9	WPW10294695 Whirlpool Mounting Bracket
10	WPW10317886 Whirlpool Screw
11	WPW10289076 Whirlpool Door Handle
11	W10289074 Whirlpool Door Handle
11	W10289075 Whirlpool Door Handle
12	HINGE, DOOR (RIGHT)
12	HINGE, DOOR (LEFT)
13	W10105790 Whirlpool Bumper
