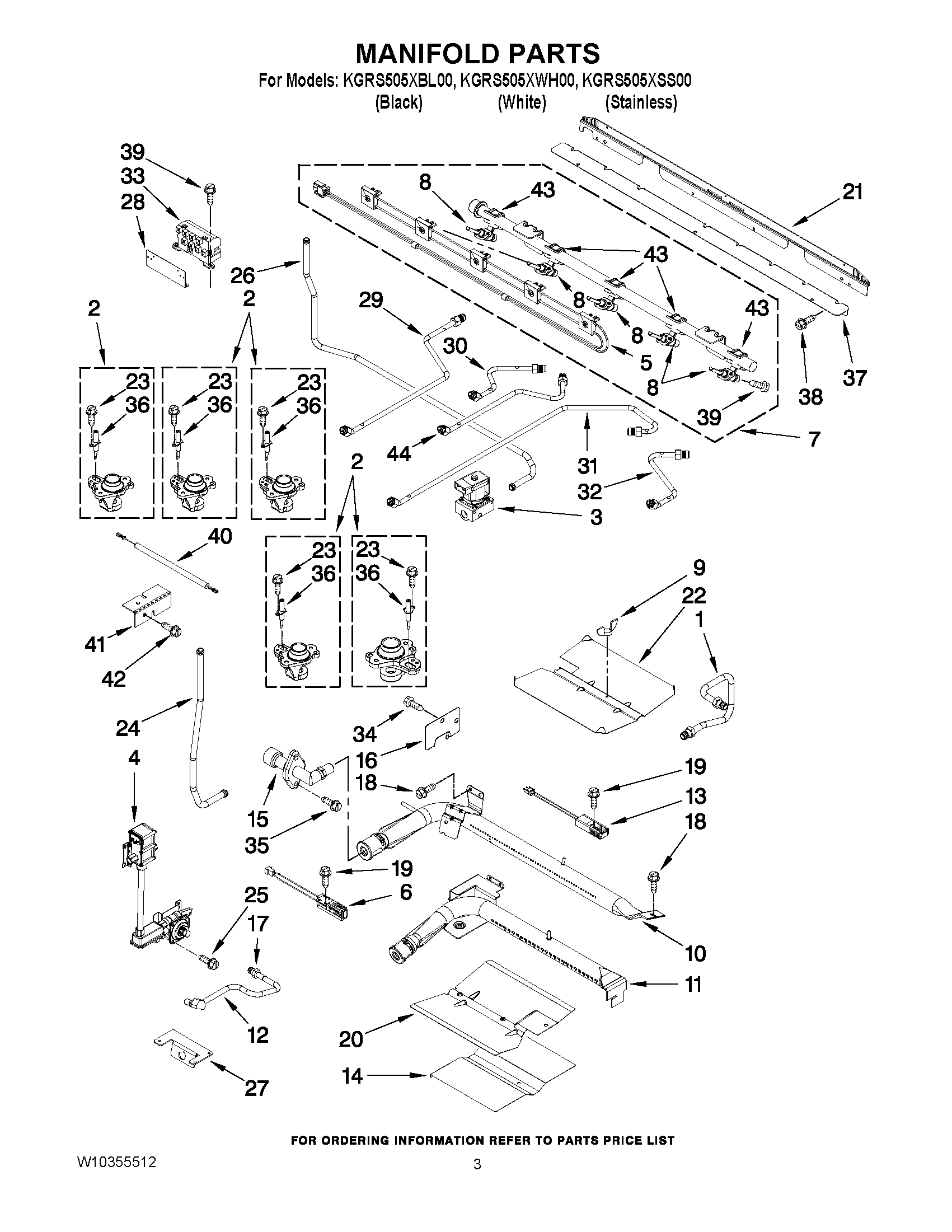

KGRS505XSS00 03 – MANIFOLD PARTS

Products

PositionProduct
NIW10324646 Whirlpool Insulation
NIW11674161 Whirlpool Range Orifice Spud
1W10319002 Whirlpool Gas Tubing
2HOLDER, ORIFICE (LR & RR, 5K)
2HOLDER, ORIFICE (LEFT FRONT, 16K)
2WPW10319347 Whirlpool Orifice Holder
2W10861630 Whirlpool Orifice Holder
3VALVE, SHUT OFF
4WPW10518493 Whirlpool Gas Valve
5WPW10204718 Whirlpool Wire Harness
6WPW10324738 Whirlpool Oven Igniter
7WPW10204705 Whirlpool Manifold Assembly
8WPW10206288 Whirlpool Valve Burner
8WPW10298678 Whirlpool Burner Valve
8VALVE-BRNR
9NUT, WING
10W11245221 Whirlpool Broiler Burner
11W11174122 Whirlpool Oven Burner
12W10342662 Whirlpool Gas Tubing
12W10342661 Whirlpool Gas Tubing
13IGNITOR, BAKE
14W10298865 Whirlpool Heat Shield Assembly
15W10292293 Whirlpool Fitting
16COVER, IGNITOR WIRE
17NUT, MOUNTING
18SCREW
19SCREW
20W10272528 Whirlpool Burner Baffle
21WPW10276470 Whirlpool Dishwasher Support Bracket
22BAFFLE, BROIL BURNER
23WP8273062 Whirlpool Screw
24W10295050 Whirlpool Gas Tubing Assembly
25SCREW
26W10295055 Whirlpool Gas Tubing
27BRACKET, ORIFICE
28W10319059 Whirlpool Support Bracket
29TUBING, LR
30TUBING, LF
31TUBING, RR
32TUBING, RF
33MODULE, SPARK
34SCREW
35SCREW
36WPW10110378 Whirlpool Surface Igniter
36W10324015 Whirlpool Surface Igniter
37WPW10276466 Whirlpool Support Bracket
38SCREW
39Screw
40W10636384 Whirlpool Extension
41W10324366 Whirlpool Shield
42W10217535 Whirlpool Screw
4398017516 Whirlpool Mounting Bracket
44TUBING, CENTER
