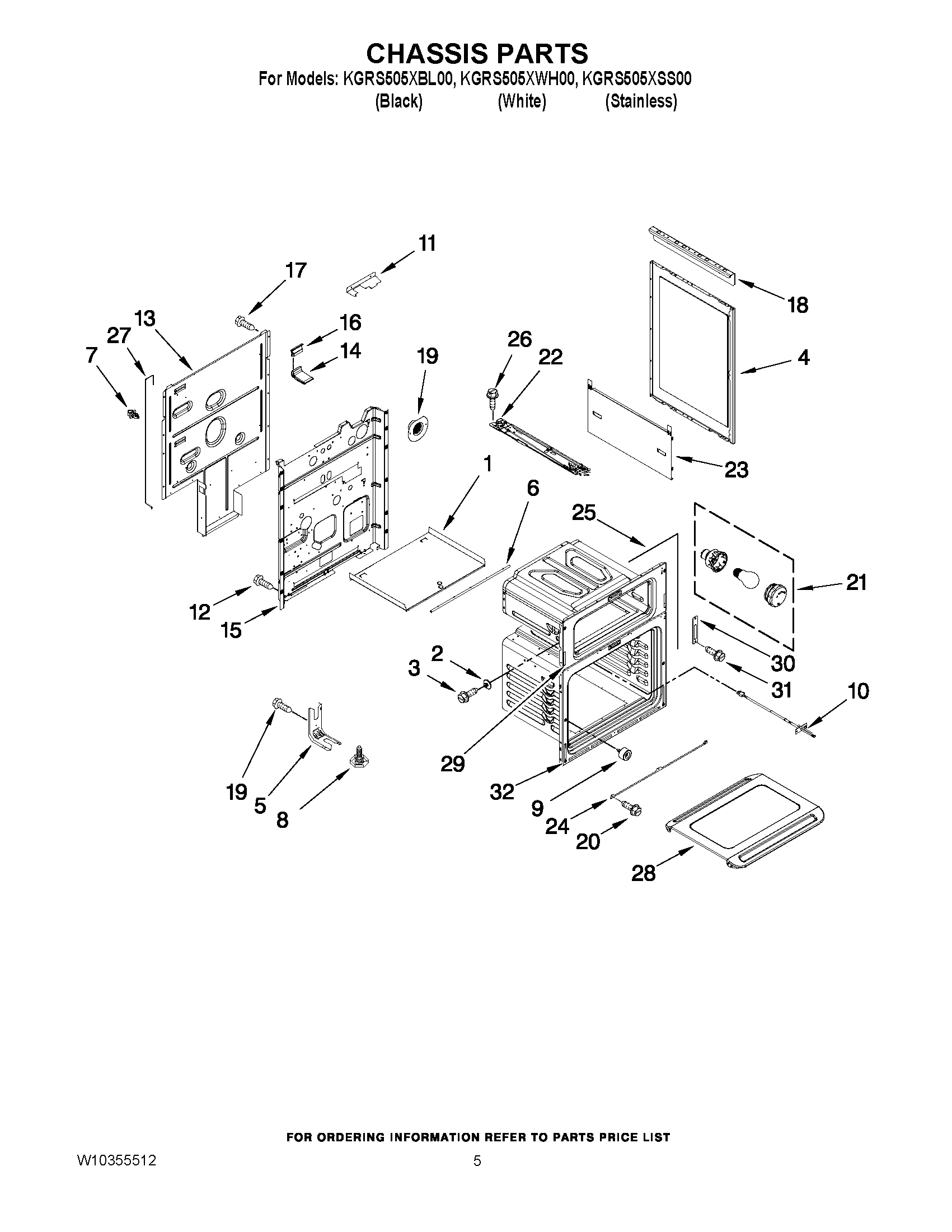

KGRS505XSS00 04 – CHASSIS PARTS

KGRS505XSS00 04 – CHASSIS PARTS

Written by

in

KGRS505XSS00 04 – CHASSIS PARTS

Products

PositionProduct
NIW11688777 Whirlpool Insulation
NIW11688385 Whirlpool Insulation
NIW11685611 Whirlpool Insulation
NIINSULATION, FLOOR
NIW11684769 Whirlpool Insulation
1W10319038 Whirlpool Heat Shield
2WPW10237689 Whirlpool Spacer Panel
3WPW10267456 Whirlpool Screw
4WPW10330376 Whirlpool Side Panel
4ASSEMBLY, SIDE PANEL (BLACK)
5BRACKET, ANTI TIP
6W10319000 Whirlpool Oven Gasket Assembly
7GUIDE, ROD
8FOOT, LEVELER
9W10105790 Whirlpool Bumper
10SENSOR, OVEN
11COVER, LOWER WIRE
12SCREW
14W10272519 Whirlpool Oven Flue
14W11243157 Whirlpool Oven Flue
15WPW10260580 Whirlpool Rear Cover
16W10321445 Whirlpool Oven Flue Assembly
16W10321446 Whirlpool Oven Flue
17WPW10261387 Whirlpool Wire Cover
18W10319087 Whirlpool Support Bracket
19SCREW, ANTI-TIP KIT
20WP4449743 Whirlpool Screw
21ASSEMBLY, LIGHT
22WPW10471348 Whirlpool Door Latch
23WPW10253471 Whirlpool Shield
24TRIM, KICKPLATE
25W10318928 Whirlpool Door Gasket
25WPW10269069 Whirlpool Door Gasket
26SCREW
27ROD, SHUTOFF
28WPW10292551 Whirlpool Broil Pan
29FRONT, MAIN UPPER
30COVER, HINGE UPPER
30W10410463 Whirlpool Cover Assembly
31Screw
32WPW10308654 Whirlpool Front Frame
32W10410461 Whirlpool Cover
