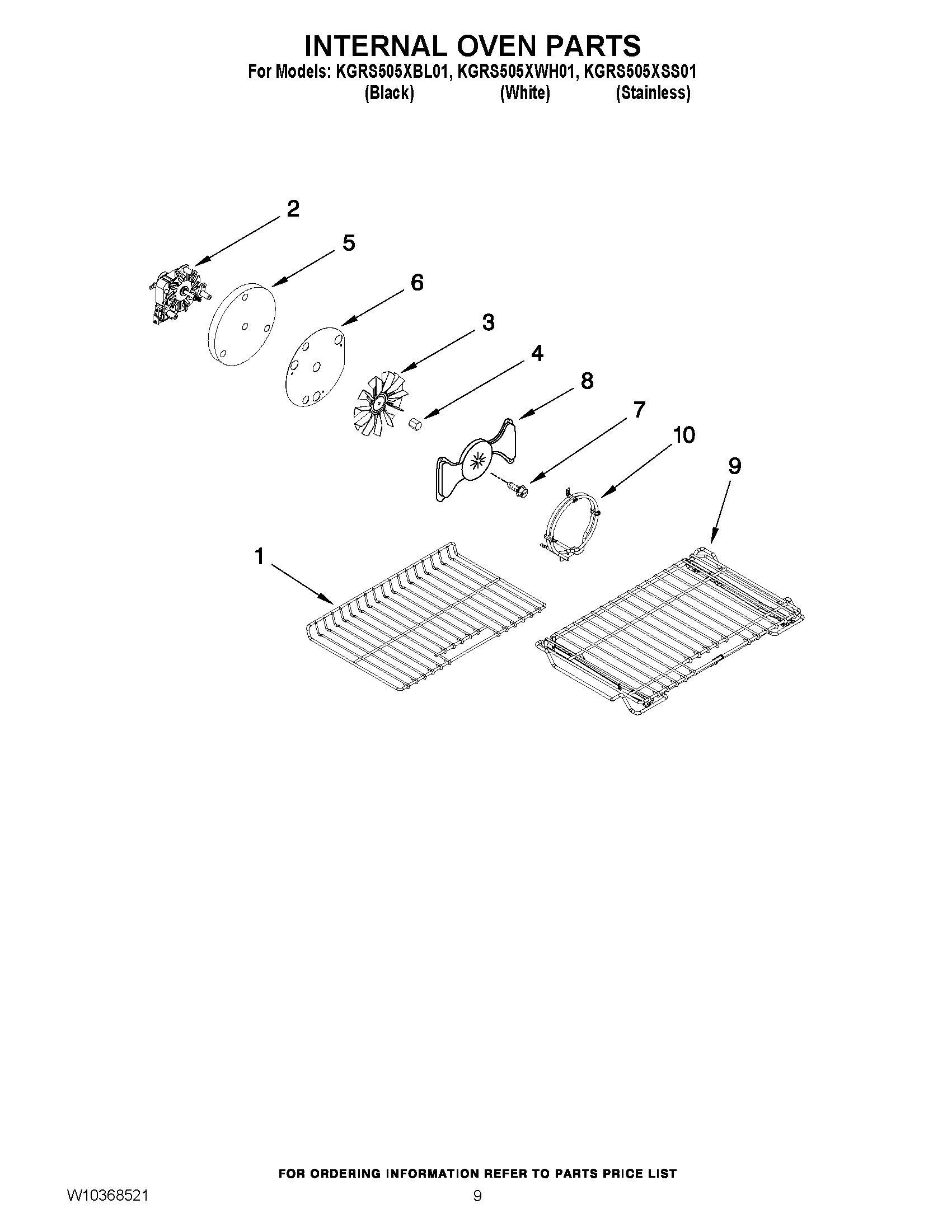

KGRS505XSS01 07 – INTERNAL OVEN PARTS

Written by

Products

Position	Product
1	W11550107 Whirlpool Oven Rack
2	W10794440 Whirlpool Fan Motor
3	W10758272 Whirlpool Convection Fan
4	WPW10116349 Whirlpool Nut
5	W10274268 Whirlpool Insulation
6	W10339476 Whirlpool Bracket Mounting
7	WP4449154 Whirlpool Screw
8	W10322230 Whirlpool Heat Shield
9	WPW10570870 Whirlpool Oven Rack
10	W10249980 Whirlpool Element
