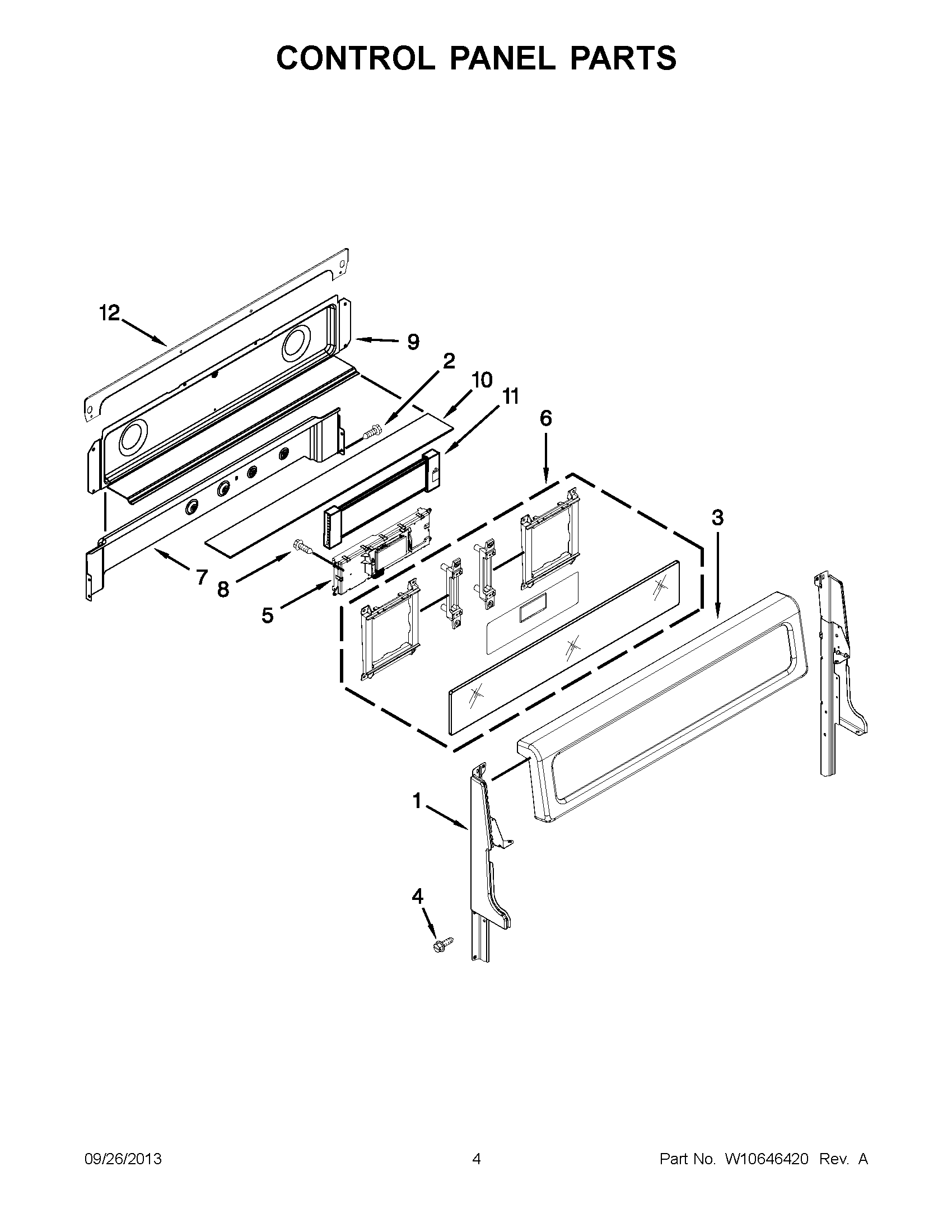

KGRS505XSS05 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1	SUPPORT, BACK GUARD (RIGHT HAND)
1	W10319112 Whirlpool Panel Endcap
1	W10319110 Whirlpool Endcap Panel
2	SCREW
3	WPW10424187 Whirlpool Control Panel
3	WPW10424185 Whirlpool Control Panel
3	WPW10424186 Whirlpool Control Panel
4	Screw
5	ELECTRIC, CONTROL MRC2
6	ASSY., MEMBRANE (INCL. BRACKET)
7	W10278697 Whirlpool Vent Shield Assembly
8	SCREW
9	W10296773 Whirlpool Rear Cover
10	W11684874 Whirlpool Insulation
11	WPW10318787 Whirlpool Wire Harness
12	WPW10292689 Whirlpool Wire Cover
