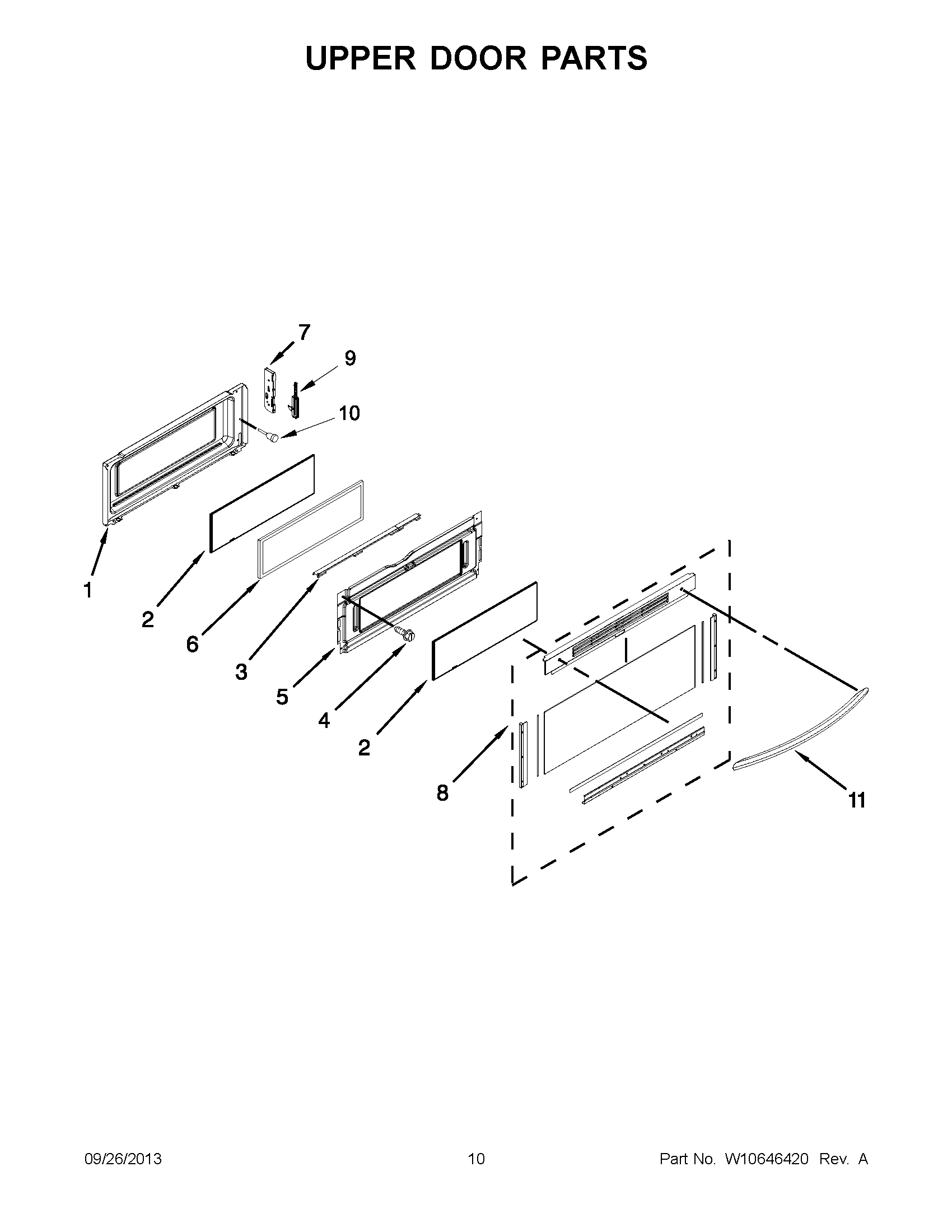

KGRS505XSS05 06 – UPPER DOOR PARTS

KGRS505XSS05 06 – UPPER DOOR PARTS

Written by

in

KGRS505XSS05 06 – UPPER DOOR PARTS

Products

PositionProduct
1W11103615 Whirlpool Door Liner
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5W10485723 Whirlpool Retainer
6WPW10321271 Whirlpool Insulation Assembly
7W10647259 Whirlpool Hinge Receiver
8ASSEMBLY, GLASS DOOR (WHITE)
8ASSEMBLY, GLASS DOOR (BLACK)
8ASSEMBLY, DOOR GLASS (STAINLESS)
9WPW10485732 Whirlpool Door Hinge
9WPW10485733 Whirlpool Door Hinge
10W10105790 Whirlpool Bumper
11WPW10289076 Whirlpool Door Handle
11W10289074 Whirlpool Door Handle
11W10289075 Whirlpool Door Handle
