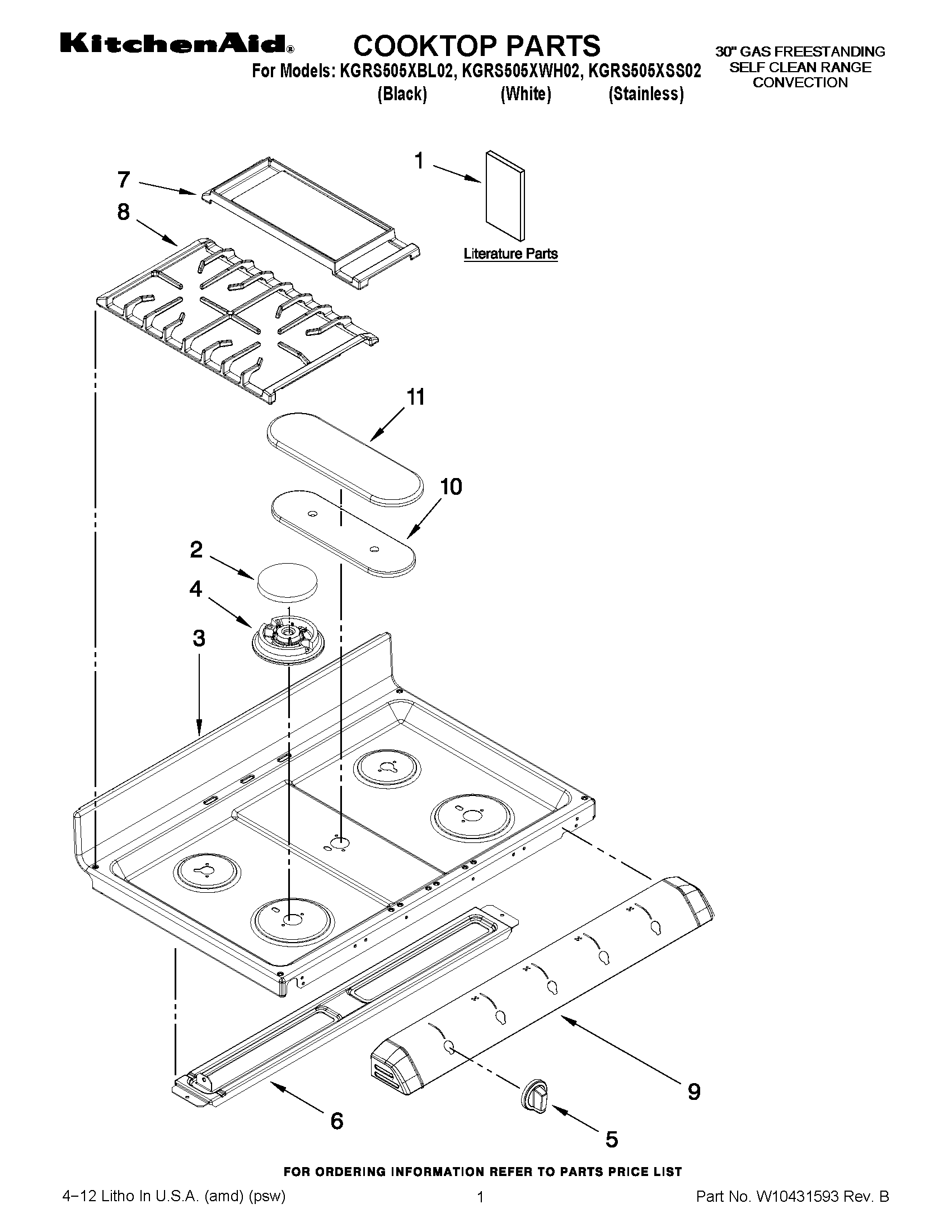

KGRS505XWH02 01 – COOKTOP PARTS

KGRS505XWH02 01 – COOKTOP PARTS

Written by

in

KGRS505XWH02 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1TECH SHEET
1OWNERS MANUAL
1INSTRUCTIONS, INSTALLATION
2WPW10299236 Whirlpool Burner Cap
3W10336331 Whirlpool Cooktop
3W10336330 Whirlpool Cooktop
4WPW10336094 Whirlpool Burner Assembly Top
4WPW10406243 Whirlpool Burner Head Auxiliary 6K
4WPW10406878 Whirlpool Burner Base (16K)
4WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
5WPW10290522 Whirlpool Knob Assembly
5W10295130 Whirlpool Knob
6W10518258 Whirlpool Mounting Bracket
7GRIDDLE
8WPW10260069 Whirlpool Grate Kit
9WPW10284717 Whirlpool Manifold Panel
9WPW10488872 Whirlpool Manifold Panel
9PANEL, MANIFOLD (BLACK)
10WPW10333445 Whirlpool Burner Base
11WPW10171140 Whirlpool Burner Cap
11W10171137 Whirlpool Burner Cap
