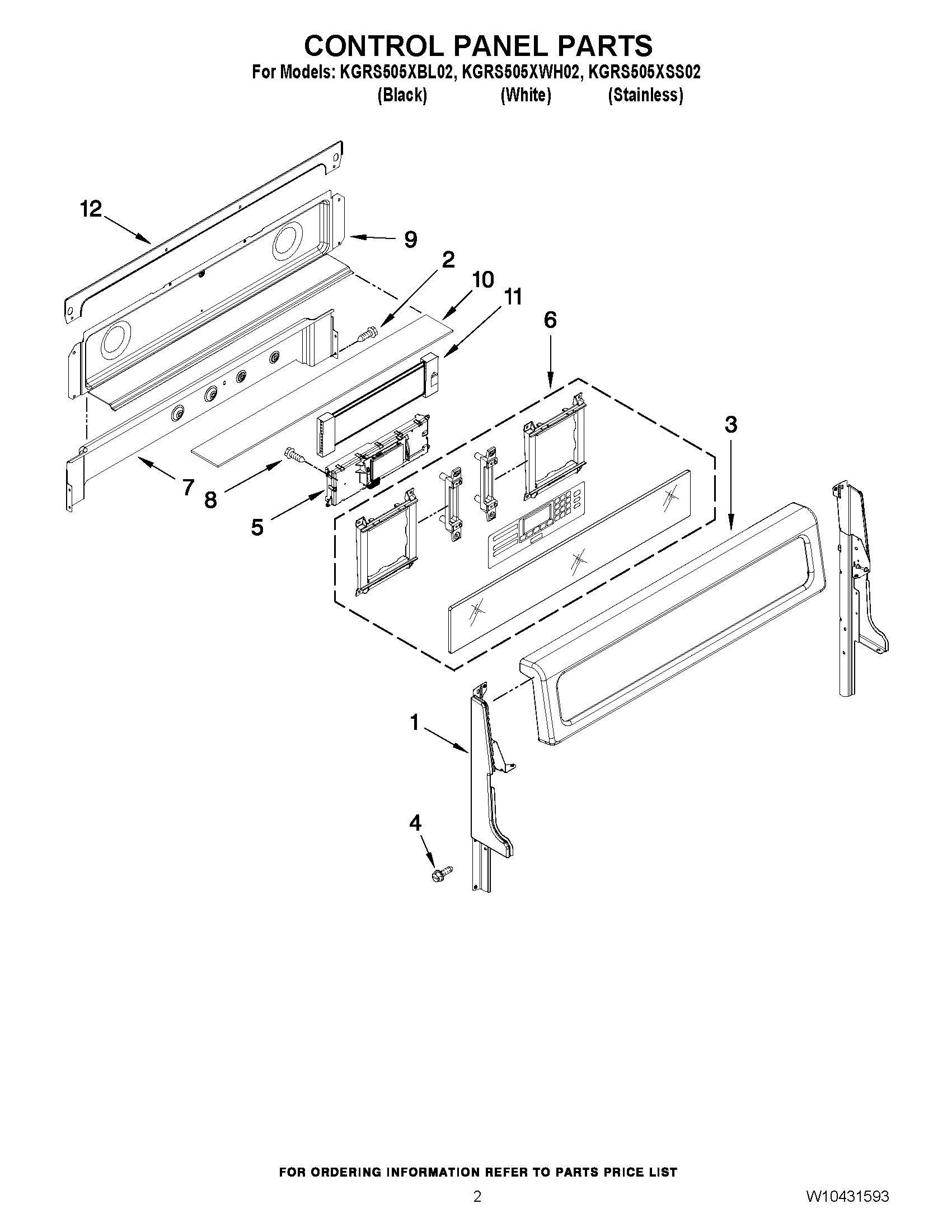

KGRS505XWH02 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1SUPPORT, BACK GUARD (RIGHT HAND)
1W10319112 Whirlpool Panel Endcap
1W10319110 Whirlpool Endcap Panel
2SCREW
3WPW10424187 Whirlpool Control Panel
3WPW10424185 Whirlpool Control Panel
3WPW10424186 Whirlpool Control Panel
4Screw
5ELECTRIC, CONTROL MRC2
6ASSY., MEMBRANE (INCL. BRACKET)
7W10278697 Whirlpool Vent Shield Assembly
8SCREW
9W10296773 Whirlpool Rear Cover
10W11684874 Whirlpool Insulation
11WPW10318787 Whirlpool Wire Harness
12WPW10292689 Whirlpool Wire Cover
