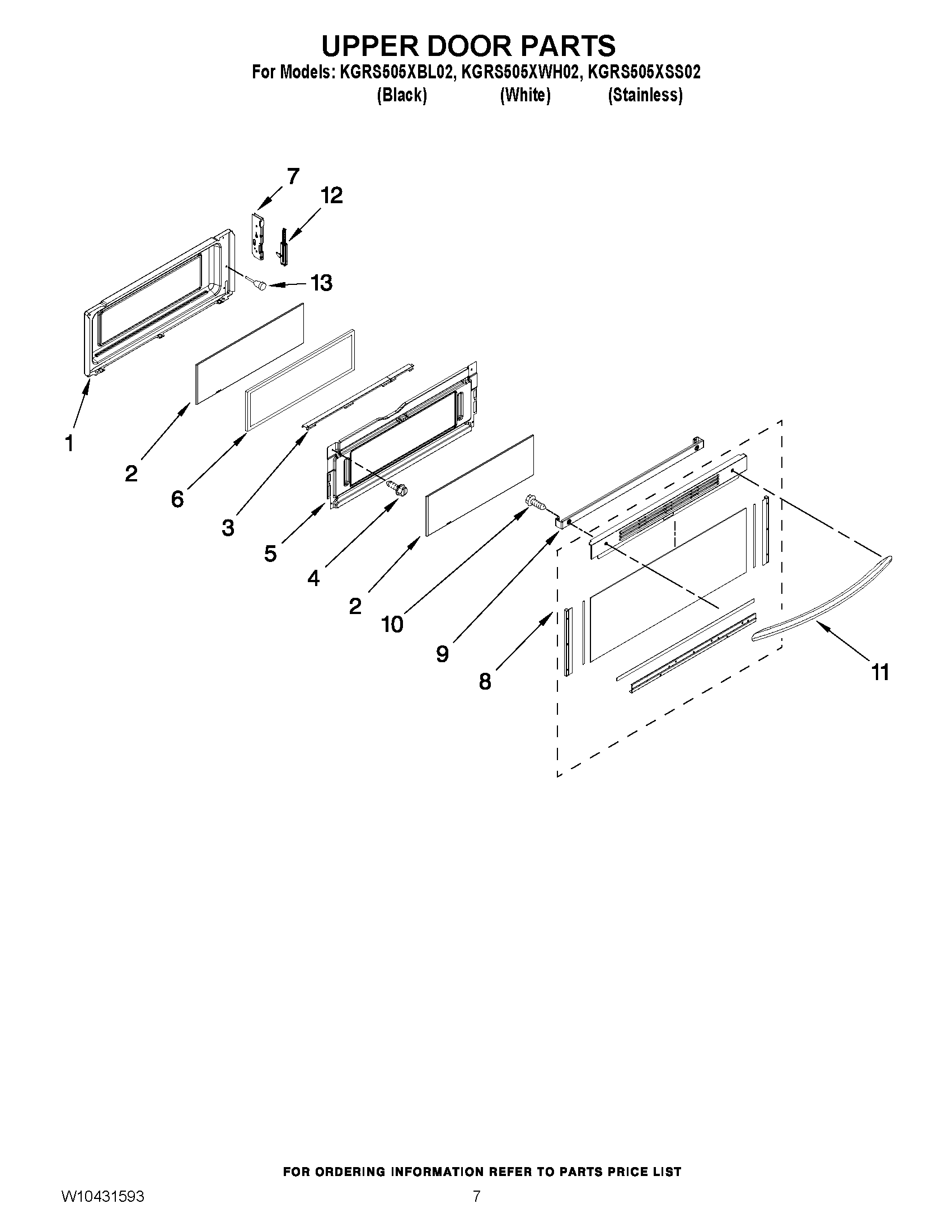

KGRS505XWH02 05 – UPPER DOOR PARTS

KGRS505XWH02 05 – UPPER DOOR PARTS

Written by

in

KGRS505XWH02 05 – UPPER DOOR PARTS

Products

PositionProduct
1LINING, DOOR
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5RETAINER, INSUL.
6WPW10321271 Whirlpool Insulation Assembly
7W10277006 Whirlpool Hinge Receiver
8ASSEMBLY, GLASS DOOR (BLACK)
8ASSEMBLY, GLASS DOOR (WHITE)
8ASSEMBLY, GLASS DOOR (INCLUDES DOOR PANEL)
9WPW10294695 Whirlpool Mounting Bracket
10WPW10317886 Whirlpool Screw
11WPW10289076 Whirlpool Door Handle
11W10289074 Whirlpool Door Handle
11W10289075 Whirlpool Door Handle
12HINGE, DOOR (RIGHT)
12HINGE, DOOR (LEFT)
13W10105790 Whirlpool Bumper
