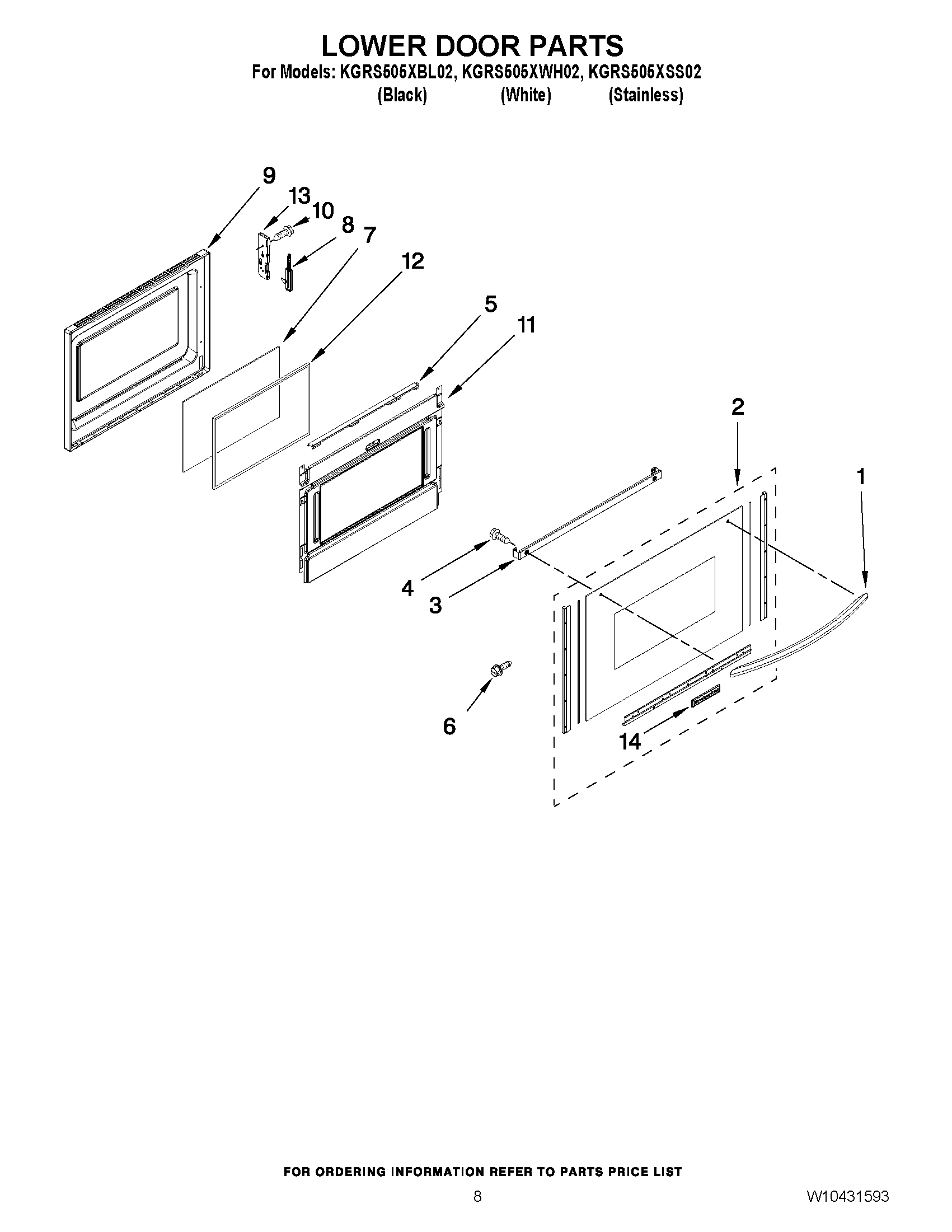

KGRS505XWH02 06 – LOWER DOOR PARTS

KGRS505XWH02 06 – LOWER DOOR PARTS

Written by

in

KGRS505XWH02 06 – LOWER DOOR PARTS

Products

PositionProduct
1W10289075 Whirlpool Door Handle
1W10289074 Whirlpool Door Handle
1WPW10289076 Whirlpool Door Handle
2ASSEMBLY, GLASS DOOR (BLACK)
2ASSEMBLY, GLASS DOOR (WHITE)
2ASSEMBLY, GLASS DOOR (INCLUDES DOOR PNL & BADGE)
3WPW10294695 Whirlpool Mounting Bracket
4WPW10317886 Whirlpool Screw
5WPW10272594 Whirlpool Window Frame
7WP9757706 Whirlpool Door Inner Glass
8WPW10335434 Whirlpool Door Hinge
8WPW10335433 Whirlpool Door Hinge
9WPW10292008 Whirlpool Door Liner
10WPW10292297 Whirlpool Screw
11W10340464 Whirlpool Retainer
12INSULATION, DOOR
13WPW10272328 Whirlpool Hinge Receptacle
13WPW10272329 Whirlpool Hinge Receptacle
14WPW10243393 Whirlpool Dishwasher Nameplate
14WPW10243392 Whirlpool Dishwasher Nameplate
14WPW10243391 Whirlpool Refrigerator Nameplate
